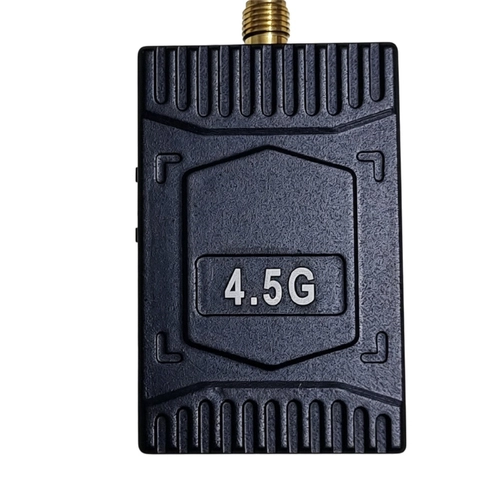

Kimpok Analog Video Receiver KP-R4500

Kimpok KP-R4500 Analog Video Receiver is a compact 4.5G VRX module designed for analog video reception. Built for hobby users, FPV setups, and simple video monitoring systems, it offers reliable operation across 2 frequency bands and 16 channels. With straightforward controls, clear LED status indication, and a practical accessory set included in the box, it is a convenient choice for anyone looking for an easy-to-use analog receiver for the 4.5G band.

The KP-R4500 was designed for quick setup and hassle-free use. You can switch channels and frequency bands with a single button, while LED indicators make it easy to confirm the current settings. Its small 50 x 32 x 11 mm housing helps when space is limited, and the included antenna, power cable, and AV cable let you get started without hunting for basic accessories.

4.5G Analog Video Reception with 16 Available Channels

The Kimpok KP-R4500 supports Band A and Band B, with 8 channels per band for a total of 16 working channels. This gives you more flexibility when matching the receiver to a compatible analog video transmitter and choosing the channel that works best for your setup.

• 16 reception channels – more flexibility when configuring an analog video link.
• 2 frequency bands – Band A and Band B, with 8 channels in each band.
• 4500 to 4685 MHz range – designed for compatible 4.5G analog video systems.
• Easy transmitter matching – select the proper band and channel for your setup.
• Great for FPV and hobby use – ideal for analog image reception in compatible systems.

Simple One-Button Channel and Band Switching

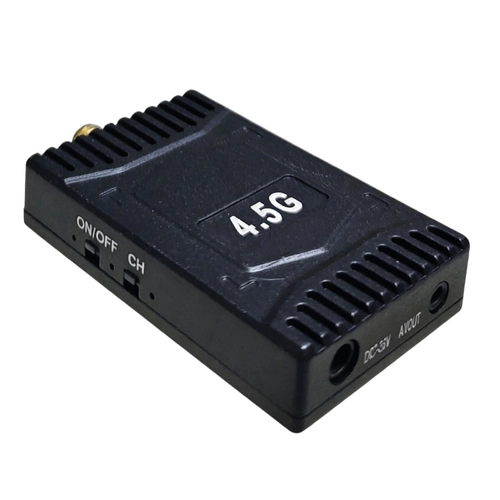

Using the Kimpok KP-R4500 is refreshingly simple. The frequency and band selection button allows you to quickly switch channels or change bands without digging through complicated menus. A short press moves to the next channel, while a longer press switches between the available frequency bands.

• Short button press – switches to the next frequency channel.
• Press and hold for more than 3 seconds – changes the frequency band.
• Cyclic switching – convenient navigation through all available channels and bands.
• No complex menu system – fast setup with no extra tools required.
• Dedicated ON/OFF button – quick and convenient power control.

This makes the receiver especially handy for bench testing, quick field setup, FPV experiments, and mobile analog video stations where speed and simplicity matter.

Clear LED Indicators for Power, Band, and Channel Status

The KP-R4500 uses simple LED indication to show its operating status. A green LED confirms power, a red LED indicates the selected channel in Band A, and a blue LED shows the selected channel in Band B. The number of LED flashes matches the active channel number, making it easy to check your settings at a glance.

• Green LED – shows that the receiver is powered on.
• Red LED – indicates the active channel in Band A.
• Blue LED – indicates the active channel in Band B.
• Flash count matches the channel number – for example, 3 flashes means CH3.
• Quick visual confirmation – check the current setup without an external display.

Compact Housing and Essential Connectivity

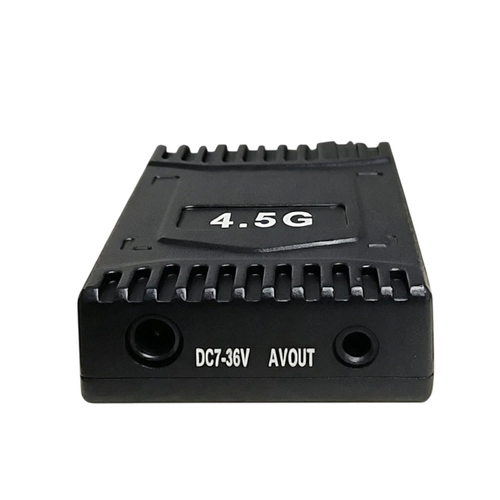

Thanks to its compact 50 x 32 x 11 mm design, the Kimpok KP-R4500 fits easily into mobile receiver kits, service cases, and compact hobby installations. The housing includes the key ports needed for practical everyday use, including the antenna connector, DC power input, and jack output.

• Compact size – easy to mount and integrate into small setups.
• Antenna connector – ready for use with the included antenna.
• DC power input – simple and reliable receiver power connection.
• Jack output – allows signal output according to your setup configuration.
• AV cable included – easy connection to a compatible display device.

This compact form factor makes the receiver easy to transport and fast to deploy. It is a solid pick for hobbyists who want a simple 4.5G VRX module without unnecessary complexity.

Technical Specifications and Box Contents

Below you will find the key technical details and the included accessories. The package includes the receiver, antenna, power cable, AV cable, and user manual.

What’s in the box:

• Kimpok KP-R4500 Analog Video Receiver
• Antenna
• Power cable
• AV cable
• User manual

Best used for:

• Receiving analog video from transmitters operating in the 4.5G band.
• Building a mobile video monitoring station.
• FPV configurations that require a 4.5G VRX receiver.
• Testing and servicing analog video transmission systems.
• Connecting to compatible devices with AV input.
