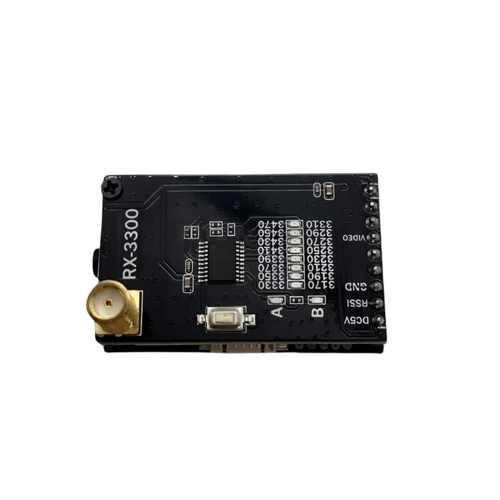

Kimpok Analog Video Receiver KP-R3300-B

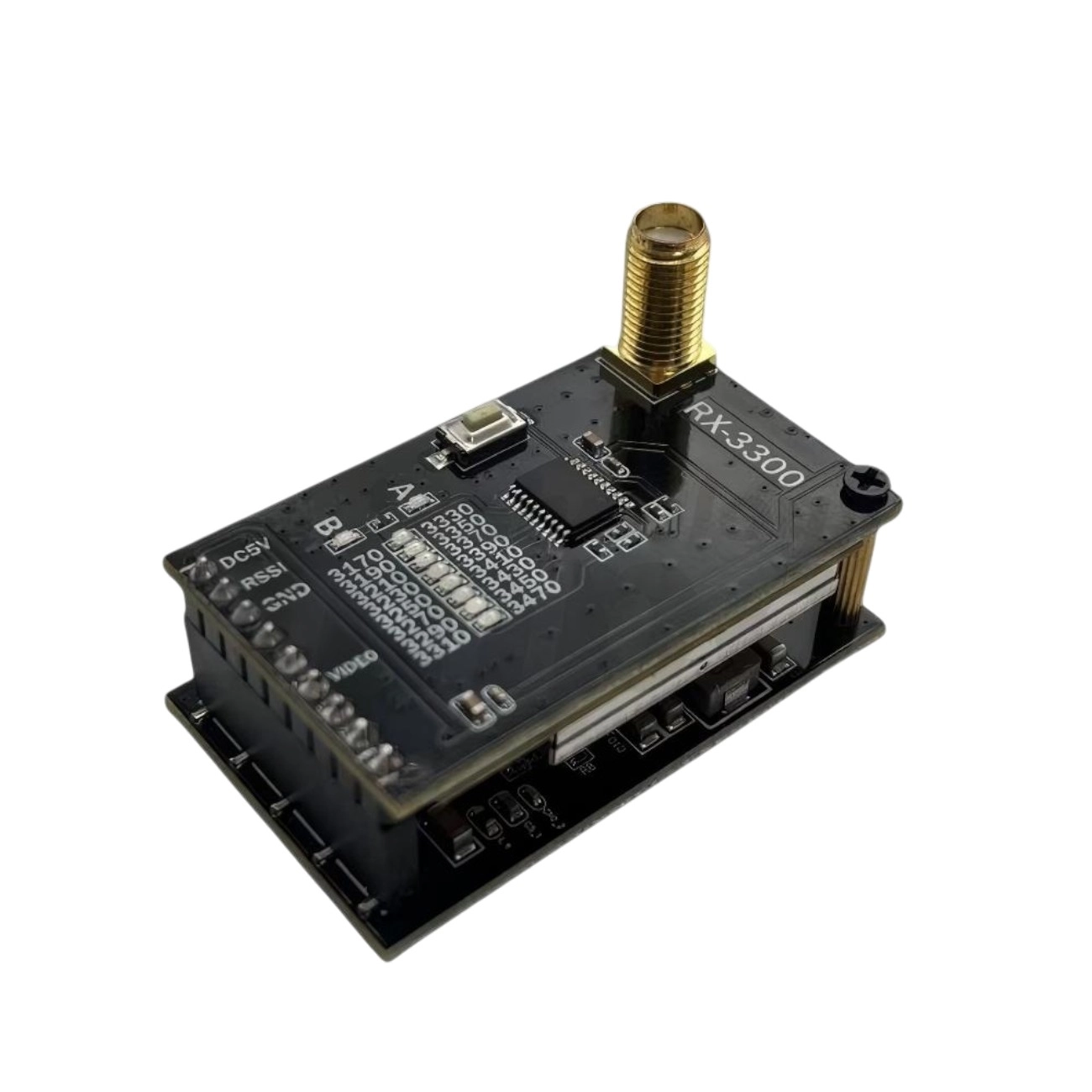

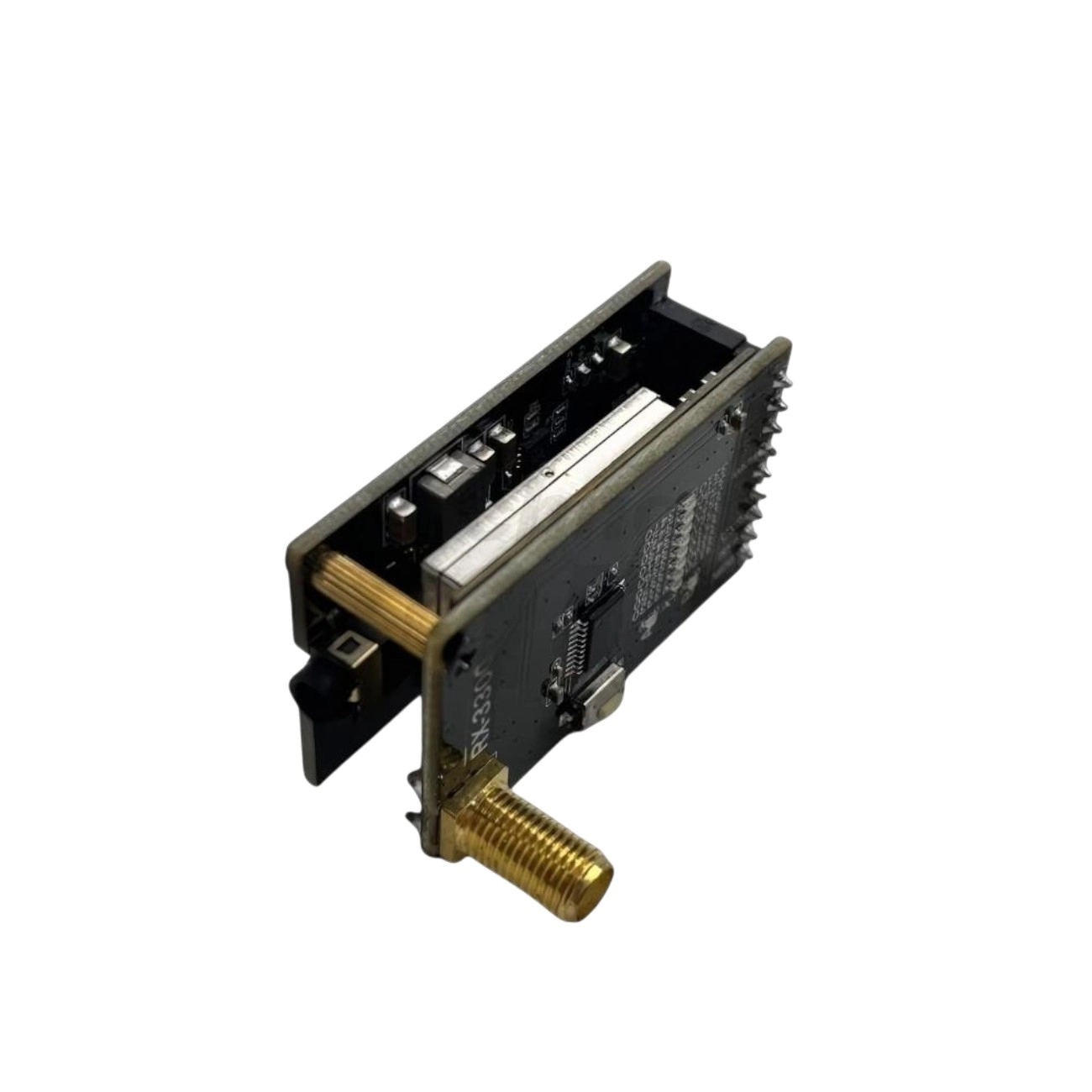

Kimpok KP-R3300-B Analog FPV Video Receiver – 3.3 GHz VRX Module

Kimpok KP-R3300-B is a compact 3.3 GHz analog FPV video receiver designed to receive video from compatible VTX transmitters. With 16 channels, high reception sensitivity, PAL/NTSC support, and a wide 7–36 V input range, it’s a practical choice for hobby FPV builds, custom ground stations, FPV goggles, and analog monitors.

Built for easy installation and quick setup, this receiver keeps things simple. A short button press changes the channel, while a long press switches between Band A and Band B. If you’re putting together a lightweight and effective analog 3.3G FPV setup, the KP-R3300-B is a straightforward and versatile option.

Stable 3.3 GHz FPV Video Reception

The Kimpok KP-R3300-B operates in the 3170–3470 MHz range and is intended for receiving analog video transmission from compatible 3.3 GHz FPV transmitters. With sensitivity up to -97 dBm, it can help deliver more stable signal reception when paired with the right antenna and a properly matched FPV system.

• 3.3 GHz band – compatible with supported analog FPV video transmitters.
• Sensitivity up to -97 dBm – improved reception of weaker signals.
• FM modulation – standard for analog video transmission.
• PAL/NTSC support – works with popular analog video formats.
• SMA antenna connector – easy antenna installation and replacement.

16 Channels and Fast Band Switching

This analog FPV receiver supports 16 channels split across two bands: Band A and Band B. Each band includes 8 channels, making it easy to match your receiver to a compatible VTX and get your setup ready in minutes.

A short press cycles through channels 1–8, while a longer press switches between bands A/B. No complicated menu system, no unnecessary extras—just a simple control method that works well for hobby users and DIY FPV projects.

Great for FPV Goggles, Monitors, and DIY Ground Stations

The Kimpok KP-R3300-B can be used with analog FPV displays, FPV goggles, and monitors that support PAL/NTSC video. Thanks to its compact form factor, it’s a great fit for custom receiver stations, bench test setups, or upgrades to existing FPV gear.

• Compatible with analog FPV displays and monitors.
• Supports PAL/NTSC video signal formats.
• Video output for connecting an external display device.
• Useful receiver module for goggles, monitors, and test stations.
• Compact design for flexible installation in different builds.

Wide 7–36 V Input and 5 V Output

The receiver supports DC 7–36 V input, which makes it suitable for 2–6S battery setups. Its built-in DC/DC power circuit gives you more flexibility when integrating it into various FPV systems. The module also provides a 5 V / 0.5 A output that can power a compatible accessory, as long as the current draw stays within the allowed limit.

Important: the 5 V and 5V-OUT pins are not power input pins. Connecting them directly to a battery or the main power source may damage the receiver. Before powering the module on, always connect the antenna and make sure both the transmitter and receiver are set to the same frequency.

What’s Included and Usage Tips

The package includes the basic components needed to connect the receiver in a typical FPV setup. You can use it as a receiver for goggles, a monitor, or a custom ground station after matching the operating frequency with your transmitter.

• Kimpok KP-R3300-B 3.3 GHz analog video receiver – 1 pc
• 4-pin double-ended cable – 1 pc
• 7P cable – 1 pc
• Y-type antenna – 1 pc

• Always install the antenna before powering on the receiver.
• Set the transmitter and receiver to the same frequency before use.
• Do not exceed the supported 7–36 V input range.
• Never connect the 5 V output to a battery.
• Use operating frequencies in accordance with your local radio regulations.
