Kimpok Analog Video Receiver KP-R3300

Kimpok Analog Video Receiver KP-R3300 – Compact 3.3GHz FPV Receiver for Hobby Use

Kimpok KP-R3300 is a compact analog FPV video receiver designed to work with compatible 3.3GHz video transmitters. If you are building a ground station, putting together a simple test bench, or need a lightweight field receiver for your FPV setup, this model gives you a practical and easy way to receive analog video.

Built for hobby users who want a straightforward 3.3G VRX receiver, the KP-R3300 offers 16 channels across two bands, simple button-based control, clear LED indicators, and essential connectivity including AV output, DC power input, and an antenna connector. The included accessories make it a solid starting point for a ready-to-use analog video receiving setup.

Key Features of the Kimpok KP-R3300

• Designed for 3.3GHz FPV systems – compatible with analog video transmitters operating in the 3.3GHz band.
• 16 selectable channels – 8 channels in Band A and 8 channels in Band B.
• Analog AV output – easy connection to a compatible monitor, goggles, recorder, or display device.
• Compact and portable size – great for field kits, mobile stations, and hobby workbenches.
• Simple controls – fast channel and band switching without complicated menus.
• LED status indication – quickly check power, selected band, and current channel.
• Complete starter set – includes antenna, power cable, AV cable, and user manual.

Analog FPV Video Reception in the 3.3GHz Band

The Kimpok KP-R3300 is made for receiving analog FPV video transmission on 3.3GHz. It is a good match for hobbyists using compatible 3.3GHz VTX units who want a simple receiver for an external screen, FPV goggles, DVR, or another device with AV input.

Thanks to its small footprint and easy setup, this receiver works well both as a permanent part of an FPV ground station and as a portable solution you can take into the field.

16 Channels Across Two Frequency Bands

The KP-R3300 supports two frequency plans: Band A and Band B. Each band includes 8 channels, giving you flexibility when matching the receiver to your compatible video transmitter. This makes setup quicker and helps you choose the channel that best fits your FPV system.

Easy Button Control and Clear LED Indicators

The receiver is equipped with a frequency selection button and a dedicated power button. A short press switches to the next channel, while a longer press changes the active band. This keeps operation simple and convenient, especially when you need to configure your FPV setup quickly.

The current operating status is shown using LED indicators. A green LED shows power status, a red LED indicates the selected channel in Band A, and a blue LED indicates the selected channel in Band B. The number of flashes corresponds to the channel number, so you can confirm settings at a glance.

• Green LED – power on indication.
• Red LED – selected channel indication for Band A.
• Blue LED – selected channel indication for Band B.
• Short button press – switches channels CH1 to CH8.
• Long button press – switches between Band A and Band B.
• ON/OFF button – powers the receiver on and off.

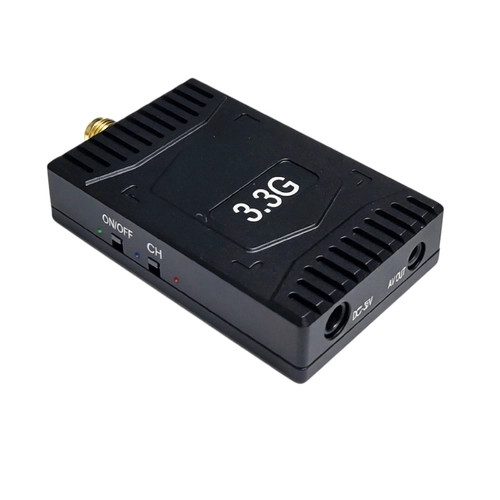

Compact Housing and Practical Connections

With dimensions of just 50 x 32 x 11 mm, the Kimpok KP-R3300 is easy to carry in an FPV gear bag or integrate into a compact receiving station. Its small size makes it especially handy for hobby use where portability and simple installation matter.

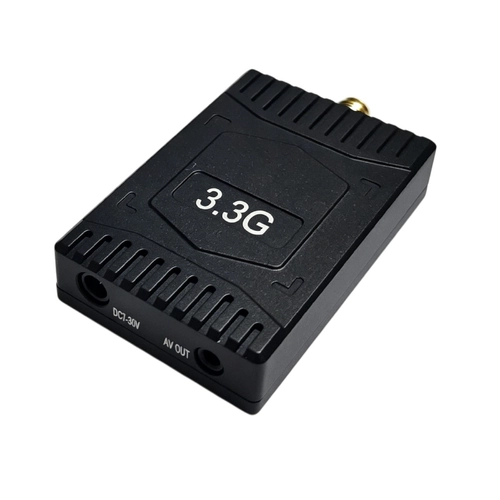

The receiver includes a DC power jack, AV output jack, and antenna connector. With the included AV cable, you can quickly connect it to a compatible display device, while the included antenna helps you build a basic receiving setup right out of the box.

What’s Included

The package includes the basic accessories needed to get started with the receiver. Simply connect the antenna, power the unit through the DC input, and link the AV output to a compatible monitor, goggles, or recorder.

• Kimpok KP-R3300 3.3G analog video receiver – 1 pc
• Antenna – 1 pc
• Power cable – 1 pc
• AV cable – 1 pc
• User manual – 1 pc

Usage Notes

Before use, make sure the receiver and transmitter are set to the same band and channel. Always connect the antenna before powering up the receiver, and use frequencies in accordance with your local radio regulations. Thanks to its straightforward operation, compact design, and useful accessories, the Kimpok KP-R3300 is a practical choice for anyone building or expanding a 3.3GHz analog FPV system.
