Kimpok Analog Transmitter KP-T5830

Kimpok KP-T5830 is a high-power 5.8GHz analog FPV video transmitter built for hobby pilots who need a strong, stable video link in demanding FPV setups. With adjustable output power up to 3W, 48 channels, IRC Tramp support, and a wide DC 7–36V input range, this VTX is a great fit for FPV drones, RC models, and custom analog video builds where range, flexibility, and reliable thermal performance matter.

Designed for tougher installations, the KP-T5830 combines a compact form factor with an aluminum heatsink, active cooling fan, and an MMCX antenna connector. Clear LED indicators make it easy to quickly check the current channel, band, and power level without unnecessary guesswork.

Key features

• High output power up to 3000mW for demanding analog FPV applications
• Selectable RF power levels: 25mW / 1000mW / 2000mW / 3000mW
• PIT mode for safer bench setup and configuration
• 48 channels across 6 bands for flexible frequency selection
• 5.8GHz analog FPV support in the 5362–5945MHz range
• IRC Tramp compatible for convenient VTX control through a compatible flight controller
• Built-in heatsink and fan for improved cooling under load
• Thermal protection with automatic power reduction when overheating
• Wide input voltage: DC 7–36V, compatible with 2–8S setups
• Compact mounting format with 30.5 x 30.5mm hole spacing

Up to 3W output power with adjustable RF levels

The standout feature of the Kimpok KP-T5830 is its impressive output power of up to 3000mW. You can choose from four RF levels—25mW, 1000mW, 2000mW, or 3000mW—making it easy to match your VTX settings to your flying environment, required range, tuning stage, and local operating regulations.

• 25mW – ideal for testing, setup, and short-range use
• 1000mW – a strong option for typical FPV use where extra signal strength is needed
• 2000mW – a higher-output setting for more demanding builds
• 3000mW – maximum RF power for users who want the strongest available setting
• PIT mode – useful for bench work and setup without full-power transmission

The power level is indicated by the green LED: one flash means 25mW, two flashes mean 1000mW, three flashes mean 2000mW, and four flashes mean 3000mW. In PIT mode, the green LED stays constantly on.

48 channels in the 5.8GHz band

The KP-T5830 supports 48 channels across six frequency bands: A, B, E, F, R, and L. Its 5362–5945MHz operating range gives you the flexibility to match your receiver, reduce interference, and fine-tune your FPV setup when multiple systems are operating nearby.

• 48 working channels for flexible analog video setup
• 6 frequency bands – Band A, Band B, Band E, Band F, Band R, and Band L
• 5362–5945MHz range for compatibility with 5.8GHz analog FPV systems
• Quick channel switching via short button press
• Band switching by holding the button for 5 seconds

Kimpok KP-T5830 frequency table

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865 MHz	5845 MHz	5825 MHz	5805 MHz	5785 MHz	5765 MHz	5745 MHz	5725 MHz
Band B	5733 MHz	5752 MHz	5771 MHz	5790 MHz	5809 MHz	5828 MHz	5847 MHz	5866 MHz
Band E	5705 MHz	5685 MHz	5665 MHz	5645 MHz	5885 MHz	5905 MHz	5925 MHz	5945 MHz
Band F	5740 MHz	5760 MHz	5780 MHz	5800 MHz	5820 MHz	5840 MHz	5860 MHz	5880 MHz
Band R	5658 MHz	5695 MHz	5732 MHz	5769 MHz	5806 MHz	5843 MHz	5880 MHz	5917 MHz
Band L	5362 MHz	5399 MHz	5436 MHz	5473 MHz	5510 MHz	5547 MHz	5584 MHz	5621 MHz

IRC Tramp support and easy FPV control

The Kimpok KP-T5830 analog transmitter supports the IRC Tramp protocol, allowing integration with a compatible flight controller for convenient VTX control directly from your FPV system. This is especially useful when the transmitter is mounted in a hard-to-reach location and you want to change channel, band, or output power without taking the build apart.

• IRC Tramp support – adjust transmitter settings through a compatible controller
• Channel and band button – fast on-device control without extra tools
• Power button – easy switching between RF output levels
• Red LED – shows the selected channel by the number of flashes
• Blue LED – indicates the selected frequency band
• Green LED – displays the current power level or PIT mode status

A short press of the channel button moves to the next channel, while holding it for 5 seconds changes the band. The power button switches between 25mW, 1000mW, 2000mW, and 3000mW, and holding it for more than 3 seconds activates PIT mode.

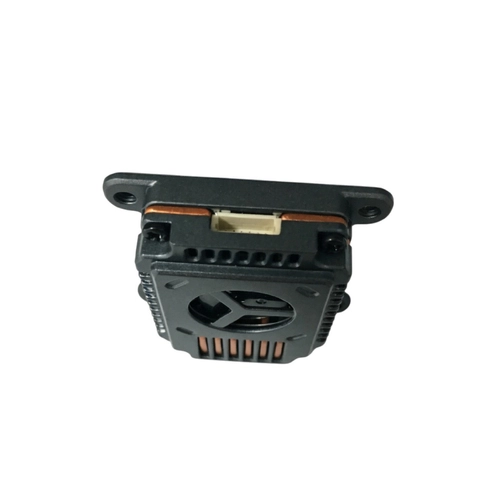

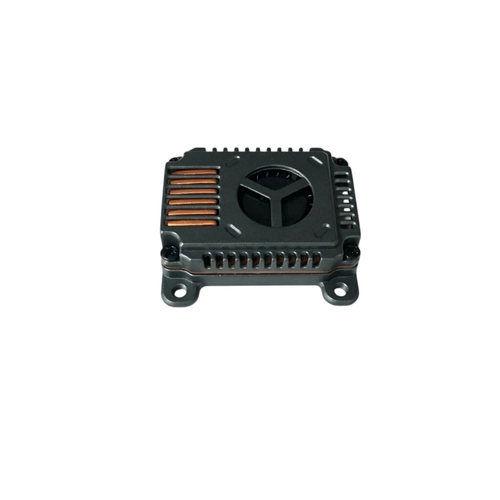

Aluminum heatsink, cooling fan, and thermal protection

Running at up to 3W requires effective heat management, and the KP-T5830 is built with that in mind. An aluminum heatsink and active fan help keep the module cooler during extended use and at higher power levels, making it a better choice for demanding FPV builds.

The transmitter also features thermal protection. If the module temperature exceeds 100°C, RF power is automatically reduced by one level. If the temperature remains above that threshold, the unit can continue stepping down until it reaches the minimum 25mW setting. Once the temperature drops below 95°C, the transmitter returns to the previously selected power level.

• Aluminum heatsink – improves heat dissipation area
• Built-in cooling fan – supports thermal stability during operation
• Automatic overheat protection – reduces power when temperatures get too high
• Automatic return to the selected power level after cooling down
• More stable performance in demanding high-power conditions

Compact installation, wiring, and package contents

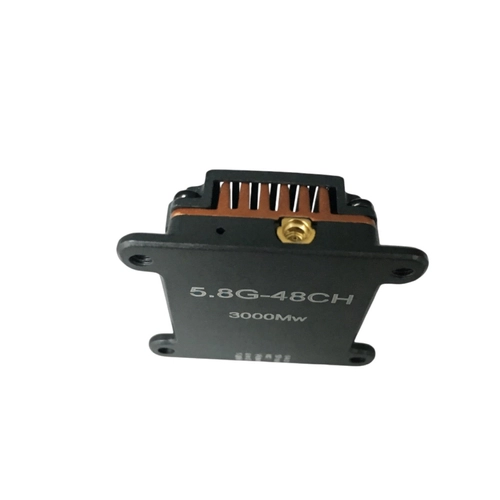

The Kimpok KP-T5830 measures 37.7 x 36.1 x 11mm, weighs only 16g, and uses a 30.5 x 30.5mm mounting pattern with 3.15mm mounting holes. This makes it easy to install in FPV frames, RC models, and other custom platforms using analog video transmission. The unit supports DC 7–36V input, making it suitable for 2–8S power setups.

Technical specification – Kimpok KP-T5830 analog transmitter

Product name	Kimpok KP-T5830 Analog Transmitter
Product type	5.8GHz analog FPV video transmitter (VTX)
Frequency range	5362–5945 MHz
Number of channels	48 channels
Bands	A, B, E, F, R, L
Maximum output power	3W
Power adjustment	25mW / 1000mW / 2000mW / 3000mW
PIT mode	Yes
Input voltage	DC 7–36V
Supported battery setups	2–8S
Antenna connector	MMCX
Control	IRC Tramp, channel/band button, power button
Cooling	Aluminum heatsink and fan
Mounting hole spacing	30.5 x 30.5 mm
Mounting hole diameter	3.15 mm
Dimensions	37.7 x 36.1 x 11 mm
Weight	16 g

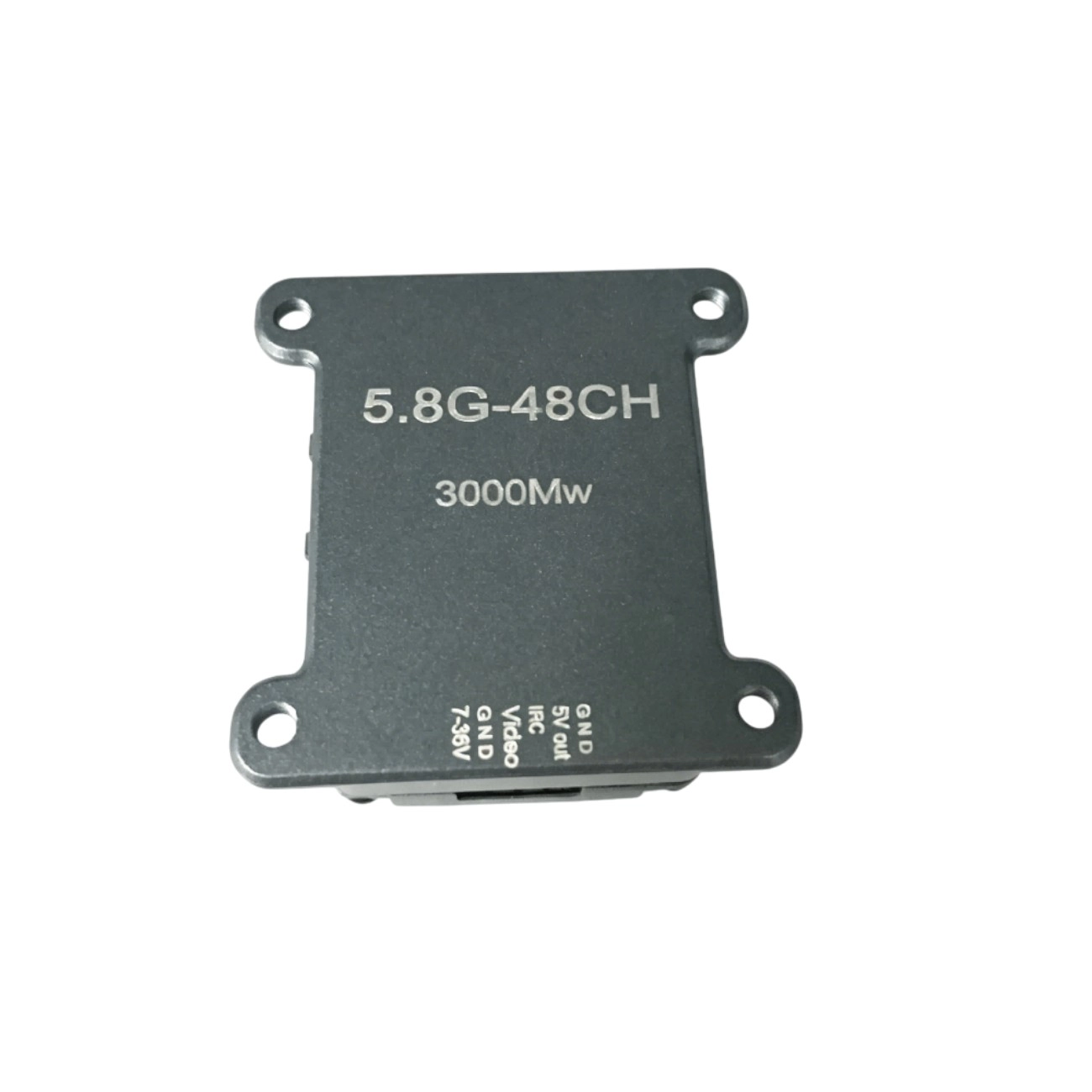

6P 1.0 wiring:

Kimpok KP-T5830 wiring table

Wire number	Function	Color
1	7–36V	Red
2	GND	Black
3	Video	Yellow
4	IRC	White
5	5V out	Red
6	GND	Black

What’s in the box:

• Kimpok KP-T5830 5.8GHz analog VTX
• MMCX antenna cable
• 6P 1.0 wire harness

Important usage tips:

• Always make sure the antenna is connected to the RF output before powering on the transmitter.
• Double-check the input voltage and wiring polarity before first use.
• Leave enough free space around the module to maintain proper airflow.
• If the temperature gets too high, the transmitter may automatically reduce output power.
• Use frequency bands and power levels in accordance with local regulations.
