Kimpok Analog Transmitter KP-T5825

Kimpok KP-T5825 Analog FPV Video Transmitter 4.9–5.8GHz

The Kimpok KP-T5825 is a powerful analog FPV video transmitter designed for drones, UAV platforms, and hobby projects that need stable video transmission over longer distances. With a wide 4.9–5.8GHz operating range, 64 channels, and adjustable output power up to 2500mW, it gives FPV pilots plenty of flexibility when building a reliable low-latency video setup.

This VTX is a great fit for hobbyists who want a strong signal, simple tuning, and flexible power settings for everything from bench testing to long-range flights. Thanks to IRC Tramp support, compatible systems can control key settings without needing direct access to the transmitter itself.

Up to 2500mW Output Power for Flexible FPV Setups

One of the biggest advantages of the Kimpok KP-T5825 is its adjustable RF output power. You can select from PIT, 25mW, 400mW, 800mW, 1500mW, or 2500mW, making it easy to match the transmitter to your current flying conditions, test environment, or range requirements.

• Up to 2500mW RF output – strong video signal for demanding FPV and UAV builds.
• PIT mode – useful during setup and when flying near other FPV pilots.
• Selectable power levels: 25 / 400 / 800 / 1500 / 2500mW – balance range and power consumption with ease.
• Button control – quick power changes without complicated setup.
• LED status indication – fast and convenient power level confirmation.

64 Channels and Wide 4.9–5.8GHz Frequency Coverage

The Kimpok KP-T5825 operates across 4884–6055MHz, offering excellent flexibility when choosing a cleaner channel in busy RF environments. Its 64-channel support makes it easier to avoid interference, especially when flying in areas with multiple FPV systems or other radio sources nearby.

• Frequency range: 4884–6055MHz – wide tuning options for analog video links.
• 64 working channels – more freedom to find a cleaner signal.
• Analog FPV transmission – low-latency video for a responsive flying experience.
• NTSC/PAL support – compatible with popular analog FPV cameras.
• IRC Tramp protocol – convenient remote control in compatible builds.

Compact Design and Efficient Heat Dissipation

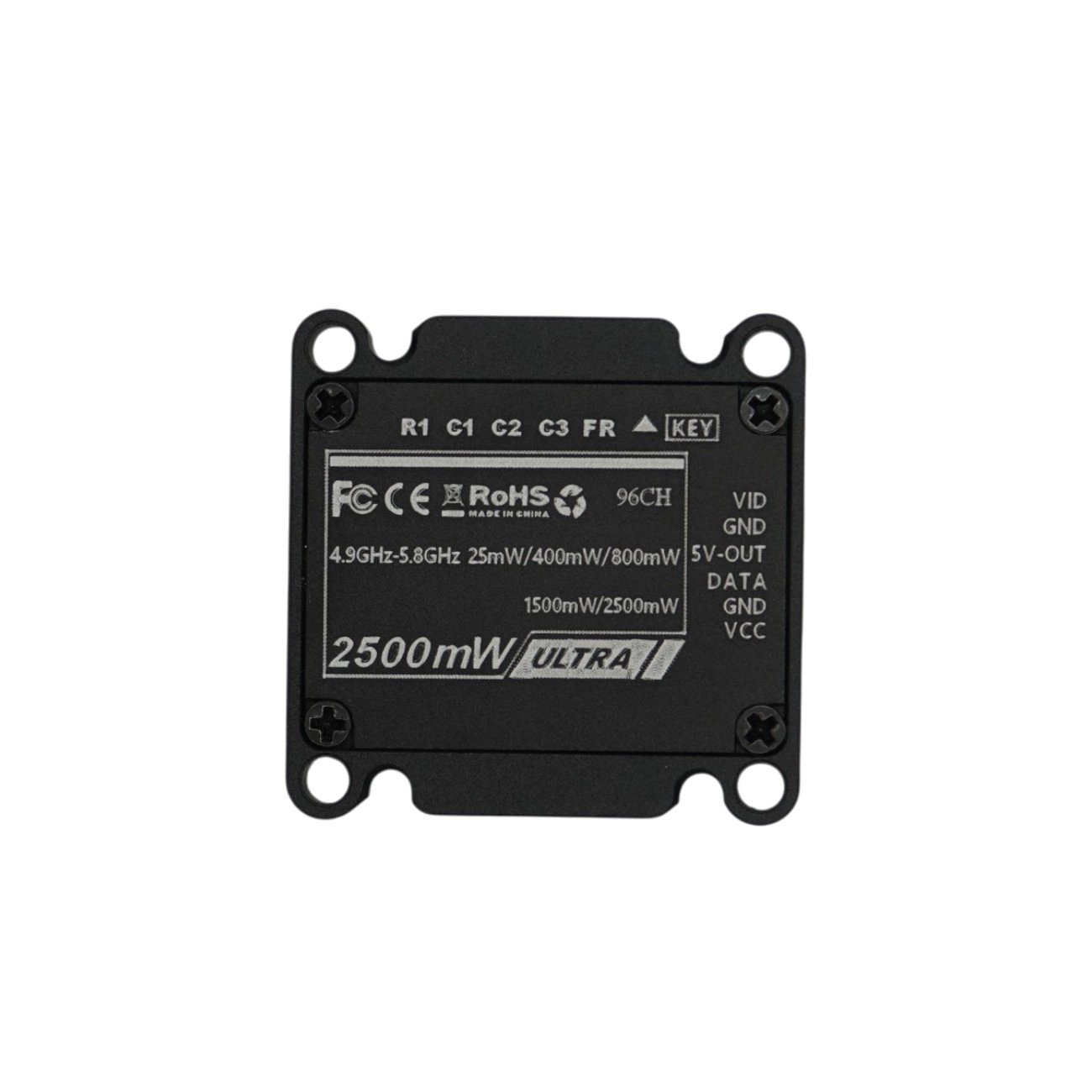

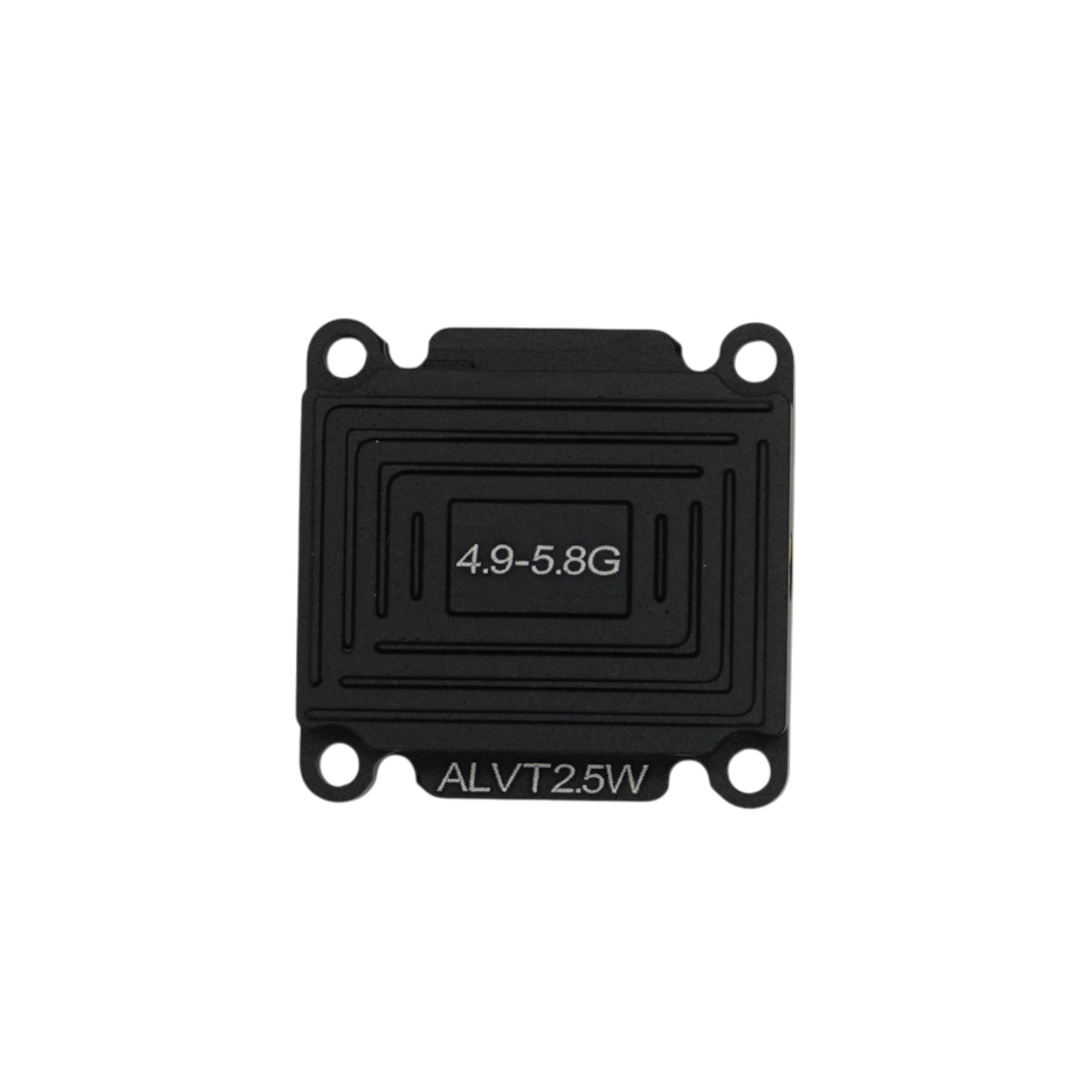

The KP-T5825 analog transmitter is built for installations where space matters. Its compact size, low weight of around 18.2g, and standard 30.5 x 30.5mm mounting pattern make it easy to install in many FPV frames and UAV platforms. An aluminum heatsink helps maintain stable performance, especially at higher output power levels.

• Weight: approx. 18.2g – keeps extra load on the drone to a minimum.
• Dimensions: 36 x 35 x 7mm – easy to fit into compact builds.
• Mounting pattern: 30.5 x 30.5mm – compatible with a common FPV mounting standard.
• MMCX antenna connector – secure and compact antenna connection.
• JST 6-pin cable connector – quick connection for signal and power.

Kimpok KP-T5825 Technical Specifications

What’s Included and Best Use Cases

The Kimpok KP-T5825 is a smart choice for users building an analog FPV video system for a long-range drone, test platform, mobile monitoring setup, or UAV project. Its wide frequency coverage, adjustable power output, and lightweight design make it suitable for both simple and more advanced hobby builds.

• BeastFPV VTX 4.9–5.8GHz 64CH transmitter – 1 pc.
• RHCP antenna 4.8–6GHz 3dBi – 1 pc.
• 6-pin SH1.0 cable – 1 pc.

Important: Always connect a compatible antenna before powering on the transmitter. Make sure the selected frequency and output power comply with your local regulations. Proper cooling and correct installation are essential for stable operation, especially when using higher power levels.
