Kimpok Analog Transmitter KP-T1760

Kimpok KP-T1760 Analog FPV Video Transmitter 1.7GHz 6W

The Kimpok KP-T1760 is a high-power analog FPV video transmitter built for hobby drones, UAV platforms, and long-range projects where strong signal, stable video transmission, and low latency really matter. Operating in the 1.7GHz band and delivering up to 6000mW (6W) of output power, it is a great fit for more demanding FPV builds than standard low-power analog VTX units.

Designed for users who want to build their own custom analog FPV video system, the KP-T1760 supports 8 channels in the 1680-1960MHz range, offers selectable power levels, and works with the IRC Tramp protocol for convenient control in compatible setups. It is a solid option for FPV pilots working on long-range drones, field testing rigs, and specialized hobby UAV builds.

Up to 6000mW Output Power for Serious FPV Flights

The biggest advantage of the Kimpok KP-T1760 is its impressive transmission power of up to 6W. You can choose between three power levels: 25mW, 800mW, and 6000mW, making it easy to match the transmitter to different stages of your project — from bench setup and short-range testing to more demanding long-range flights.

• Up to 6000mW output power - a huge signal reserve for demanding FPV setups.
• Three selectable power levels - 25mW, 800mW, and 6000mW for flexible use.
• Analog video transmission - low latency that is especially useful for real-time flying.
• 1.7GHz operating band - an interesting alternative to common 5.8GHz systems.
• Great for long-range use - suitable for FPV drones, UAV platforms, and test projects.

8 Channels in the 1680-1960MHz Range

The KP-T1760 operates across the 1680-1960MHz frequency range and provides 8 channels, allowing you to match the transmitter with a compatible receiver, antenna setup, and local RF conditions. This makes it a smart choice for hobbyists building a more specialized analog FPV link outside the most popular 5.8GHz band.

• 1680-1960MHz frequency range - easier matching with the right receiver setup.
• 8 working channels - more flexibility when choosing operating frequency.
• Stable FPV transmission - best performance with a properly matched antenna and receiver.
• IRC Tramp support - convenient VTX control in compatible configurations.
• Built for drones and UAV platforms - ideal for custom integration with your camera, power source, and video system.

Compact Design with 30.5 x 30.5mm Mounting Pattern

Despite its high output power, the Kimpok KP-T1760 keeps a relatively compact form factor. It weighs only about 21.5g and measures 37 x 46 x 17.5mm. The standard 30.5 x 30.5mm mounting pattern makes installation easier in many FPV frames and UAV builds, while the wide DC 7-36V input range allows use with 2S-8S battery setups.

• Approx. 21.5g weight - a very good power-to-weight ratio for its class.
• 37 x 46 x 17.5mm size - easier installation planning in custom builds.
• 30.5 x 30.5mm mounting pattern - compatible with a popular FPV mounting standard.
• DC 7-36V input - supports 2S-8S battery configurations.
• Made for integration - perfect for FPV drones, long-range projects, and experimental UAV platforms.

Kimpok KP-T1760 Technical Specification

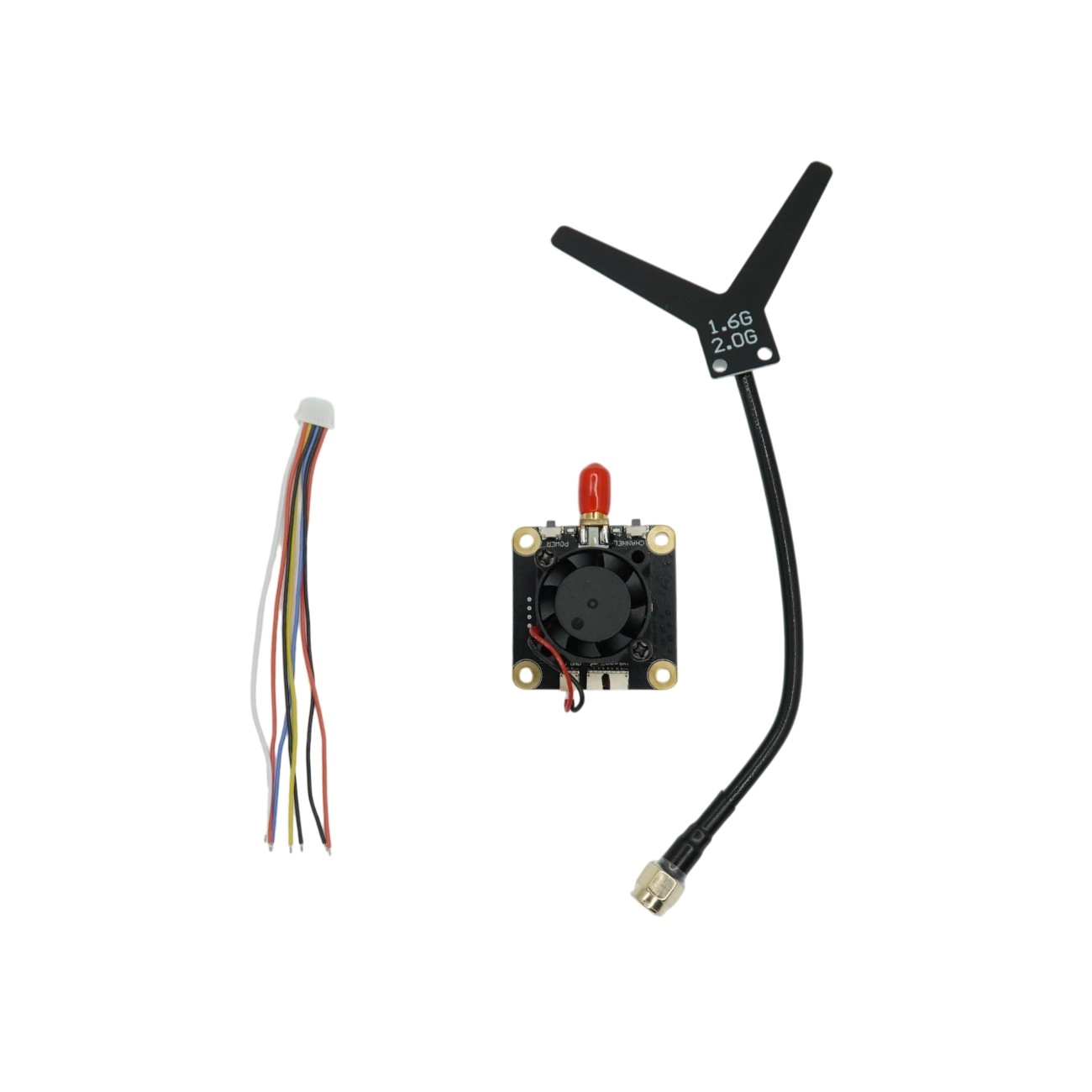

What’s Included and Typical Use

The Kimpok KP-T1760 is aimed at hobby users building a 1.7GHz analog FPV system and looking for a transmitter with very high output power, low weight, and wide voltage support. It works well in long-range drones, test platforms, UAV projects, and custom builds where the user selects the receiver, antennas, and other parts of the video chain individually.

• Kimpok KP-T1760 analog transmitter - 1 pc

Important: Before powering on the transmitter, make sure a compatible antenna is connected, the power polarity is correct, and the module has proper cooling. You should also verify that your selected frequency and transmission power comply with local radio regulations.
