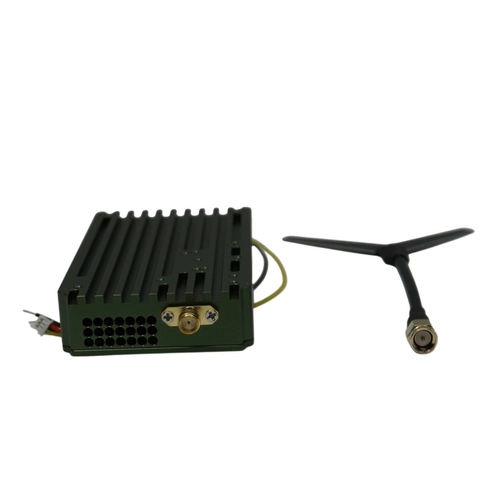

Kimpok Analog Transmitter KP-T1580B

Kimpok KP-T1580B Analog Video Transmitter – 1.5 GHz, 8 W for FPV, UAV and RC Projects

Kimpok KP-T1580B is a high-power 1.5 GHz analog video transmitter (VTX) designed for FPV systems, UAV platforms, RC models, and other hobby projects that require reliable wireless camera transmission. Operating across the 1505–1680 MHz range with 8 selectable channels and FM modulation, it is a great choice for users who want a stable analog video link, straightforward setup, and solid compatibility with matching cameras and receivers.

Built for more demanding setups, the Kimpok KP-T1580B analog transmitter combines 8 W output power, a durable metal housing, and active fan cooling. This makes it especially appealing for long-range FPV builds and advanced analog installations where lower-power transmitters may not provide enough signal headroom.

• 8 W output power – ideal for advanced FPV, UAV, and long-range hobby applications.
• 1.5 GHz analog transmission – designed for use with compatible 1.5 GHz video receivers.
• 8 available channels – easy frequency matching for different setups.
• FM modulation – a proven standard for analog video transmission.
• Metal case with cooling fan – helps maintain stable performance during extended operation.
• Wide DC 10–36 V input – easy integration with various UAV and FPV power systems.

8 W Output Power for a Stronger and More Stable Analog Video Link

The standout feature of the Kimpok KP-T1580B is its 8 W RF output power. In real-world use, this gives you more signal reserve than typical lower-power FPV transmitters, making it a strong option for projects where consistent analog video transmission over greater distances is important. For hobbyists building long-range systems, this extra power can make a noticeable difference when paired with the right antenna setup and proper line of sight.

• High-power analog VTX – built for more demanding video transmission tasks.
• Better signal margin – useful in setups where reliability matters.
• Great for long-range projects – especially when combined with properly matched antennas.
• Live analog video feed – suitable for FPV flying, testing, monitoring, and custom builds.

1.5 GHz Band and 8 Selectable Channels

The Kimpok KP-T1580B operates in the 1.5 GHz band and offers 8 transmission channels, giving you flexibility when matching your transmitter to a compatible receiver and adapting to your working environment. The 1.5 GHz band is often chosen in analog systems as an alternative to the more common 2.4 GHz and 5.8 GHz ranges, especially in projects where signal stability and range are key priorities.

Channel frequencies span from 1505 MHz to 1680 MHz. Channel selection is handled via a button on the housing, allowing for quick adjustments without complicated menus or extra software.

Metal Housing and Active Cooling for Demanding Use

High-power VTX units generate a significant amount of heat, which is why the Kimpok KP-T1580B features a metal enclosure and a built-in cooling fan. This design helps dissipate heat more effectively and supports more stable operation during longer sessions.

Active cooling is especially important at 8 W power output. When installing the transmitter, it is a good idea to leave enough room around the unit for airflow. Do not block the fan, and never power the transmitter on without a connected antenna.

• Metal case – improved durability and better heat dissipation.
• Built-in fan – active cooling for high-power operation.
• Designed for longer runtime – a practical choice for stable analog transmission systems.
• SMA female antenna connector – compatible with properly matched antennas.

Wide Input Voltage and Easy Camera Integration

With support for DC 10–36 V input, the Kimpok KP-T1580B fits a wide range of UAV and FPV power configurations. The transmitter draws approximately 1.6 A, so your power source should provide an appropriate safety margin. The module handles an analog video signal of 1 Vp-p and can be used with compatible analog cameras and 1.5 GHz receivers.

Thanks to its straightforward connection scheme, this transmitter can be used not only in drones and RC models, but also in test benches, custom observation systems, and other hobby electronics projects that require wireless transmission from an analog camera.

What’s Included and Important Usage Tips

The package includes the Kimpok KP-T1580B analog transmitter and an antenna. For operation, you will also need a compatible 1.5 GHz receiver set to the same frequency, along with a suitable power source. Before installation, always double-check the wiring for the camera, power input, and antenna connection.

• Kimpok KP-T1580B 1.5 GHz 8 W analog video transmitter – 1 pc
• Antenna – 1 pc

Always connect the antenna to the SMA connector before powering on the transmitter. Do not operate the unit without an antenna, as this may damage the module. Make sure there is adequate airflow around the housing, do not block the cooling fan, and always use the selected frequency and transmission power in accordance with your local radio regulations.
