Kimpok Analog Transmitter KP-T1350

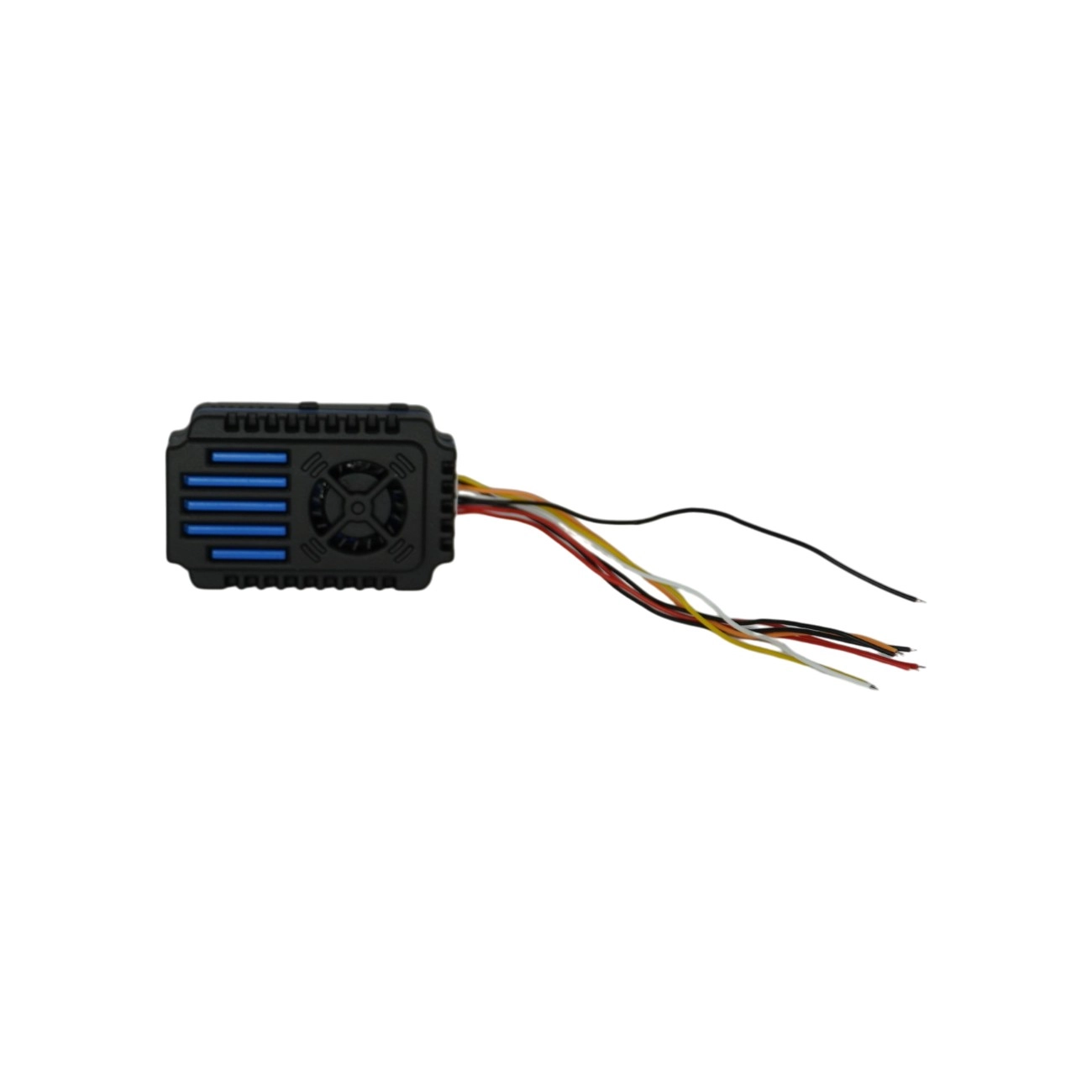

Kimpok KP-T1350 Analog FPV Video Transmitter for Long-Range Flights

The Kimpok KP-T1350 is a compact analog FPV video transmitter designed for drones, UAV platforms, and custom builds that need stable video transmission in the 1.2G/1.3GHz band. It is a great fit for hobbyists looking for more range than typical 5.8GHz systems while keeping the simple setup and low latency that make analog FPV so popular.

With 32 channels, adjustable output power up to 5000mW, and a wide 7–36V DC input range, the KP-T1350 is easy to integrate into many FPV drone and specialist UAV configurations. It is a practical choice for long-range flying, field testing, inspection setups, and experimental projects where signal strength and flexibility matter.

Adjustable Transmission Power and PIT Mode

One of the biggest advantages of the Kimpok KP-T1350 is its selectable transmission power. You can switch between PIT mode, 25mW, 1000mW, and 5000mW depending on your flying environment, expected range, interference level, and overall FPV setup. Lower power levels are handy for bench testing and setup, while higher levels are better suited for demanding long-range applications.

• Up to 5000mW output power – extra signal headroom for long-range FPV applications.
• PIT mode – convenient for setup, testing, and use around other pilots.
• 25mW mode – useful for short-range testing and initial configuration.
• 1000mW mode – a balanced option between range and power consumption.
• IRC Tramp support – lets you control transmitter settings in compatible FPV systems.

1.2G/1.3GHz Band and 32 Working Channels

The KP-T1350 operates across a 1080–1420MHz frequency range, offering 32 channels divided into four groups. This band is often chosen by FPV enthusiasts who prioritize more stable transmission over longer distances and better signal propagation compared with higher-frequency systems. Channels and frequency groups can be changed manually using onboard buttons, making quick adjustments easy without complex setup steps.

• 1080–1420MHz frequency range – broad channel selection for different FPV builds.
• 32 channels – more flexibility when choosing an operating frequency.
• FM modulation – classic analog video transmission with low latency.
• PAL/NTSC support – compatible with popular analog FPV cameras.
• MMCX antenna connector – compact and reliable antenna connection.

Compact Design for Easy Drone Installation

Even with its high output power, the Kimpok KP-T1350 remains compact and lightweight. The transmitter weighs around 24.5g without the antenna, and its 20x20mm M2 mounting pattern makes installation easy in many FPV frames. The wide 7–36V DC input voltage also means it can be powered from 2S to 8S battery setups, giving builders more freedom when designing their video system.

• Lightweight design – approximately 24.5g without antenna.
• Compact size – 53.5 x 32.5 x 15.5mm.
• 20x20mm M2 mounting – easy integration with popular FPV frames.
• 7–36V DC input – compatible with 2S–8S power systems.
• 5V / 0.6A output – useful for powering selected video system components.

Kimpok KP-T1350 Technical Specifications

Package Contents and Recommended Use

The Kimpok KP-T1350 is a solid option for FPV setups where strong signal performance, low latency, and operation on a less common band than standard 5.8GHz are important. It works especially well in long-range drones, test builds, and UAV projects where the user chooses the antenna, receiver, and other video system components independently.

• Kimpok KP-T1350 analog transmitter – 1 pc

Note: A compatible antenna and a receiver supporting the correct frequency range are required for proper operation. Before use, make sure your setup complies with local regulations regarding transmission frequencies and output power.
