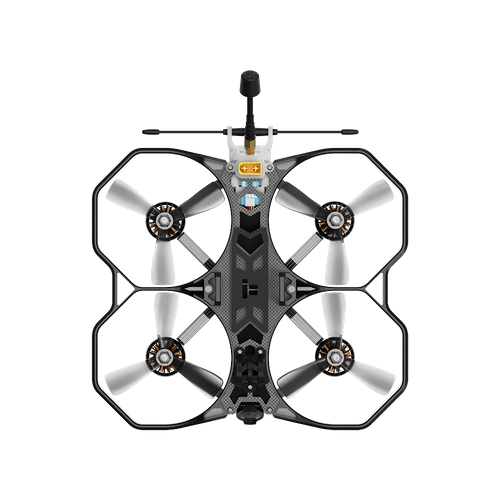

IFlight ProTek35 V1.4 HD 6S BNF racing drone DJI - DJI O3 Air Unit

IFlight racing drone ProTek35 V1.4 HD 6S BNF DJI - DJI O3 Air Unit

ProTek CineWhoop has longer on-the-fly capabilities and weighs less than previous cinewhoops! In the new version of ProTek35, the frame has been upgraded to be compatible with the air unit DJI O3. the iFlight was able to increase speed and thrust by 50% compared to its 3-inch predecessor, giving you a lot more room for a lot more fun. As a result, the ProTek35 is equipped with Butter Smooth 2205 2300KV motors, BLITZ Whoop F7 AIO, 55A 2-6S ESC propellers, Nazgul 3535 and much more!

Features:

• No props or frames visible!
• Air unit DJI O3 HD Low-latency digital transmission
• Secured battery plug and CNC bracket - easy to install battery straps
• High-performance True-AIO BLITZ F7 AIO 55A board to save weight and space
• T700 Quality Carbon - 40% higher tensile strength compared to regular 3K carbon
• Lightweight, one-piece frame construction - less flexible, more rigid, more durable
• Low resonance frame design - less Jello, more cinematic materials

Technical data:

• Product name: ProTek35 V1.4 O3 6S HD
• AIO: BLITZ Whoop F7 AIO
• Video transmission: Air unit DJI O3
• Frame: 151 mm wheelbase
• Motor: XING 2205 2300KV motors
• Support: propellers Nazgul 3535
• Weight: 363 g (without battery)
• Dimensions (L.×width.×wys.): 217×194×32.5 mm
• Top speed: 140 km/h
• Maximum takeoff altitude: 5000 m
• Maximum hover time: approx. 6 minutes (with 1400 battery with no load)
• Maximum wind speed resistance: Level 4
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Antennas: Single antenna
• GNSS: not applicable

Video transmission:

• Product name: air unit DJI O3
• Weight: approx. 36.4 grams (with headband)
• Communication bandwidth: max. 40 MHz
• Field of view (single screen): 155°
• Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
• End-to-end delay

With goggles DJI FPV V2:

• Video transmission quality 810p/120fps: Latency is less than 28ms.
• Video transmission quality 810p/60fps: Latency is less than 40 ms.

With Goggles DJI Goggles 2:

• 1080p/100fps video transmission quality: latency is only 30 ms.
• 1080p/60fps video transmission quality: latency is only 40 ms.
• Maximum video transmission rate: 50 Mbps
• Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Input power supply: 7,4-26,4 V
• Audio transmission: not applicable
