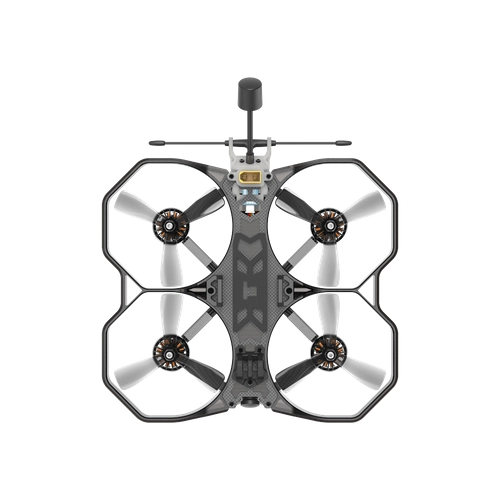

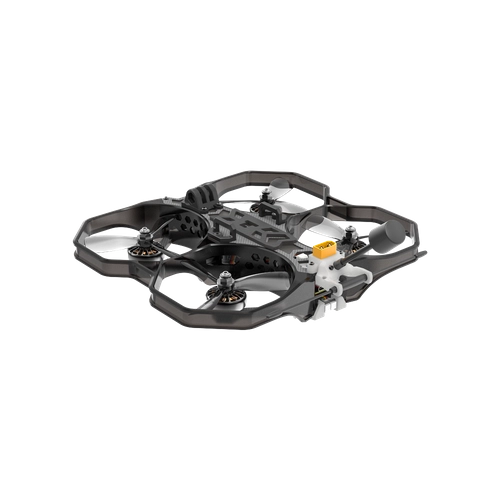

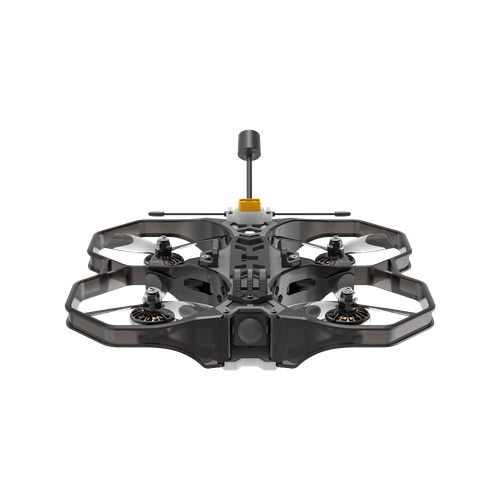

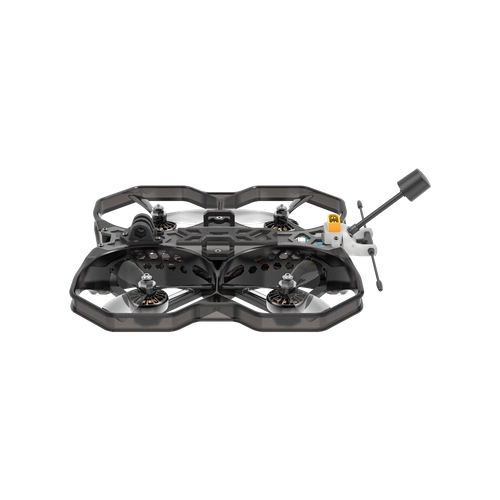

IFlight ProTek35 V1.4 Analog 6S PNP racing drone

IFlight racing drone ProTek35 V1.4 Analog 6S PNP

ProTek CineWhoop has longer on-the-fly capabilities and weighs less than previous cinewhoops! New version of ProTek35 features Secured Battery Plug. the iFlight was able to increase speed and thrust by 50% compared to its 3-inch predecessor, giving you a lot more room for a lot more fun. As a result, the ProTek35 is equipped with Butter Smooth 2205 2300KV motors. Also includes RaceCam R1 Mini FPV camera, BLITZ whoop F7 AIO, 55A 2-6S ESC, 5.8 GHz BLITZ Mini 600 mW VTX, Nazgul 3535 propellers and more!

Features:

• No props or frames visible!
• Secured battery plug and CNC bracket - easy to install battery straps
• High-performance True-AIO BLITZ F7 AIO 55A board to save weight and space
• T700 Quality Carbon - 40% higher tensile strength compared to regular 3K carbon
• Lightweight, one-piece frame construction - less flexible, more rigid, more durable
• Low resonance frame design - Less jello, more cinematic materials
• RaceCam R1 Mini FPV 19*19 Camera
• Pre-tuned with smooth freestyle settings

Technical data:

• Product name: ProTek35 V1.4 6S analogue
• AIO: BLITZ Whoop F7 AIO
• Video transmission: BLITZ Mini 600mW VTX
• Frame: 151 mm wheelbase
• Motor: XING 2205 2300KV motors
• Support: propellers Nazgul 3535
• Weight: 335g (without battery)
• Dimensions (L. × width. × height.): 217 × 194 × 32.5 mm
• Maximum speed: 140 km/h (manual mode)
• Maximum takeoff altitude: 5000 m
• Maximum hover time: approx. 6 minutes (with 6S 1400 battery with no load)
• Maximum wind speed resistance: level 4
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Antennas: Single antenna
• GNSS: not applicable

Video transmission:

• Product name: BLITZ Mini 600 mW VTX
• Output power: 0-25-200-400-600mW
• Input voltage: 5 V
• Operating current: ≤pit @ 80mA, ≤25 mw @ 280 mA, ≤ 100 mw @ 405 mA, ≤ 400 mw @ 485 mA, ≤ 600 mw @ 575 mA
• Fre transmission: 40CH(ABEFR)
• Antenna interface: MMCX
• Mounting hole: 20×20/Φ3mm/25×25/Φ2mm
• Weight: 4 grams (without antenna)
• Dimensions: l.29mm*width.29mm
