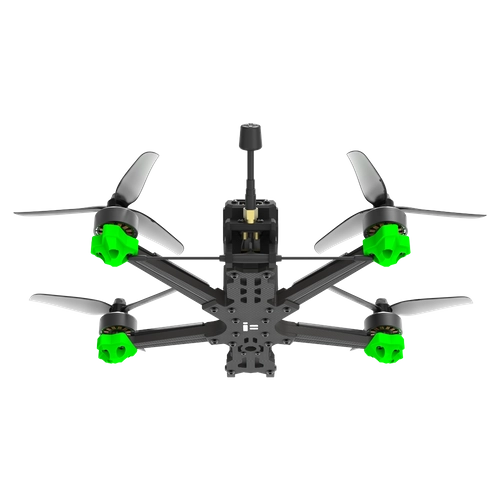

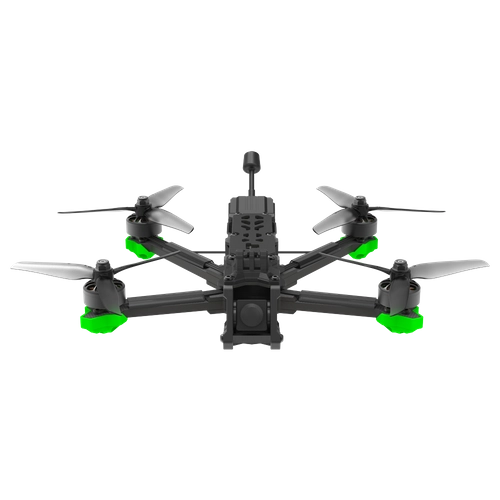

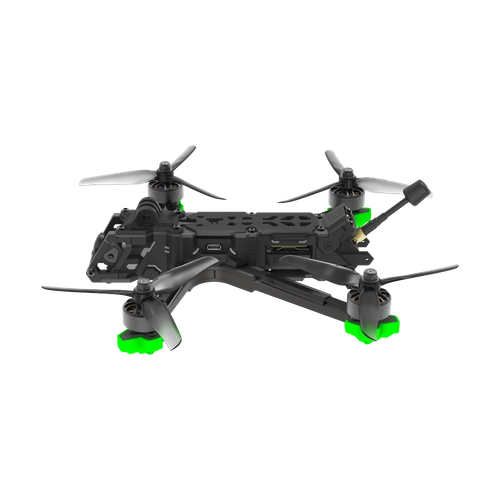

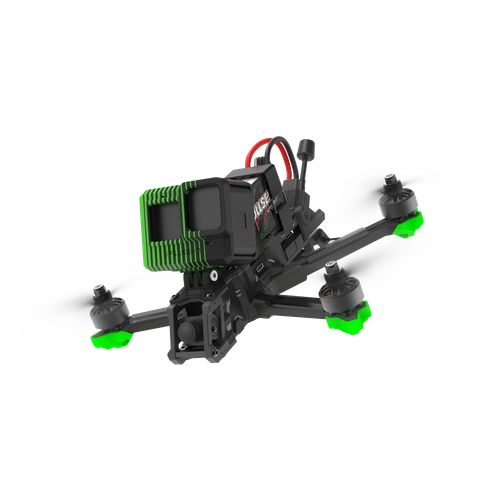

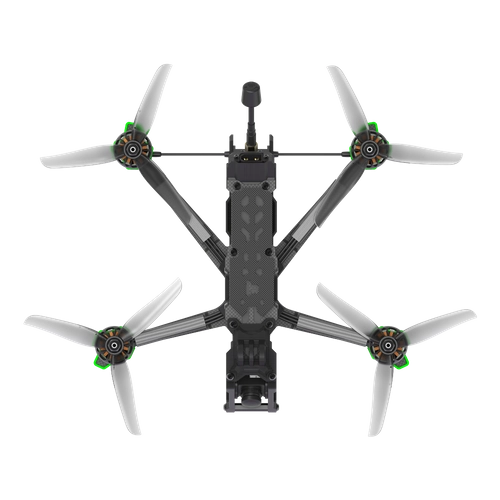

IFlight Nazgul Evoque F5X V2 Analog 6S PNP racing drone

IFlight racing drone Nazgul Evoque F5X V2 Analog 6S PNP

A new standard of Bind-And-Fly drones that are easy to get started with, but whose durability and performance are for enthusiasts of unparalleled experience.

Features:

Latest Nazgul frame for maximum protection

The old days are gone, and the electronics were full of dirt and wet grass with every accident. Our state-of-the-art frame reduces debris that can accumulate on the flight controller or ESC systems, preventing failures or short circuits. Strategic airflow to keep components cool and clean without compromising on weight and performance. Illuminated side panels and protective parts made of 360-degree TPU.

Protected battery plug with anti-spark filter

Connecting the battery can cause a loud spark at the connector, which is caused by the high battery current flowing into the low ESR capacitor first, as well as replenishing the ESC's capacity. We added a protective circuit to extend the life of XT60 connectors and prevent sudden voltage or current spikes, which can protect electronics from damage.

Technical data:

• Product name: Evoque F5 V2 Analog
• FC: BLITZ Mini F722 Flight Controller
• Controller: BLITZ Mini E55 4-in-1 2-6S 55A ESC
• Video transmission: BLITZ Whoop 1.6 W VTX
• Frame wheelbase: 225 mm (Squashed X) / 223 mm (DeadCat)
• Engine: XING-E Pro 2207 motors
• Support: propellers Nazgul F5
• Weight: 419g
• Starting weight: ok. 693 g/695 g (with 6S1400 mAh battery)
• Dimensions (L.×width.×wys.): 172×145×36±2mm (crushed X) / 190×136×36±2mm (DeadCat)
• Diagonal distance: 225 mm
• Maximum speed: 190 km/h (manual mode)
• Maximum takeoff altitude: 7000 m
• Maximum hover time: approx. 7.5 minutes
• Maximum flight distance: 5 km
• Maximum wind speed resistance: level 7
• Operating temperature range: -10° to 40° C (14° to 104° F)
• Antennas: Single antennas
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)

Video transmission:

• Product name: BLITZ Whoop 1.6 W VTX
• Input voltage: 7 V ~ 34 V
• Interface: MMCX
• Power levels: PIT/25mW/400mW/800mW/1600mW
• Channels: 40 (including Raceband)
• Mounting scheme: 30.5x30.5mm/Φ3
• Lightweight: 18.9 g (without antenna)
• VTX Telemetry: IRC Tramp
• Betaflight IRC Tramp configuration: please download the attached VTX table for Betaflight!
• RC Tramp VTX table values: 25 mW/400 mW/800 mW/1600 mW
