HD VTX mount for BetaFPV Pavo20 Pro frame (gray transparent) | O4 Pro

BetaFPV Pavo20 Pro HD VTX Mount (Transparent Grey) | O4 Pro

The BetaFPV Pavo20 Pro HD VTX Mount for DJI O4 Air Unit Pro is a purpose-built upgrade designed for pilots who want a clean, secure, and reliable HD setup on the Pavo20 Pro cinewhoop frame. Built for hobby FPV use, this mount improves camera stability, supports smooth HD footage, and makes installation fast and straightforward. Its refined design is optimized for the DJI O4 Air Unit Pro, giving your build a tidy fit, strong antenna positioning, and dependable performance for both freestyle sessions and cinematic flying.

Key Features

• Designed for DJI O4 Air Unit Pro – dedicated mount tailored specifically for the O4 Pro system.
• Made for the BetaFPV Pavo20 Pro frame – precise fit for stable mounting and hassle-free integration.
• Enhanced camera stability – dual mounting holes help optimize camera rotation and support smooth tilt adjustment from 0° to 40°.
• Improved antenna positioning – 30° angled antenna holders help maintain strong signal performance and a cleaner layout.
• Quick and easy installation – injection-molded mount design enables fast assembly with minimal adjustment.
• Built for HD footage – works together with the Pavo series rubber damping system to help reduce vibration during flight.
• Freestyle and cinematic ready – a solid option for hobbyists looking for durability, neat cable routing, and dependable HD recording support.

Specifications

• Product type: HD VTX mount / bracket
• Compatibility: BetaFPV Pavo20 Pro frame
• Supported video system: DJI O4 Air Unit Pro
• Color: Transparent Grey
• Mount weight: 7.2 g
• Camera tilt range: 0°–40°

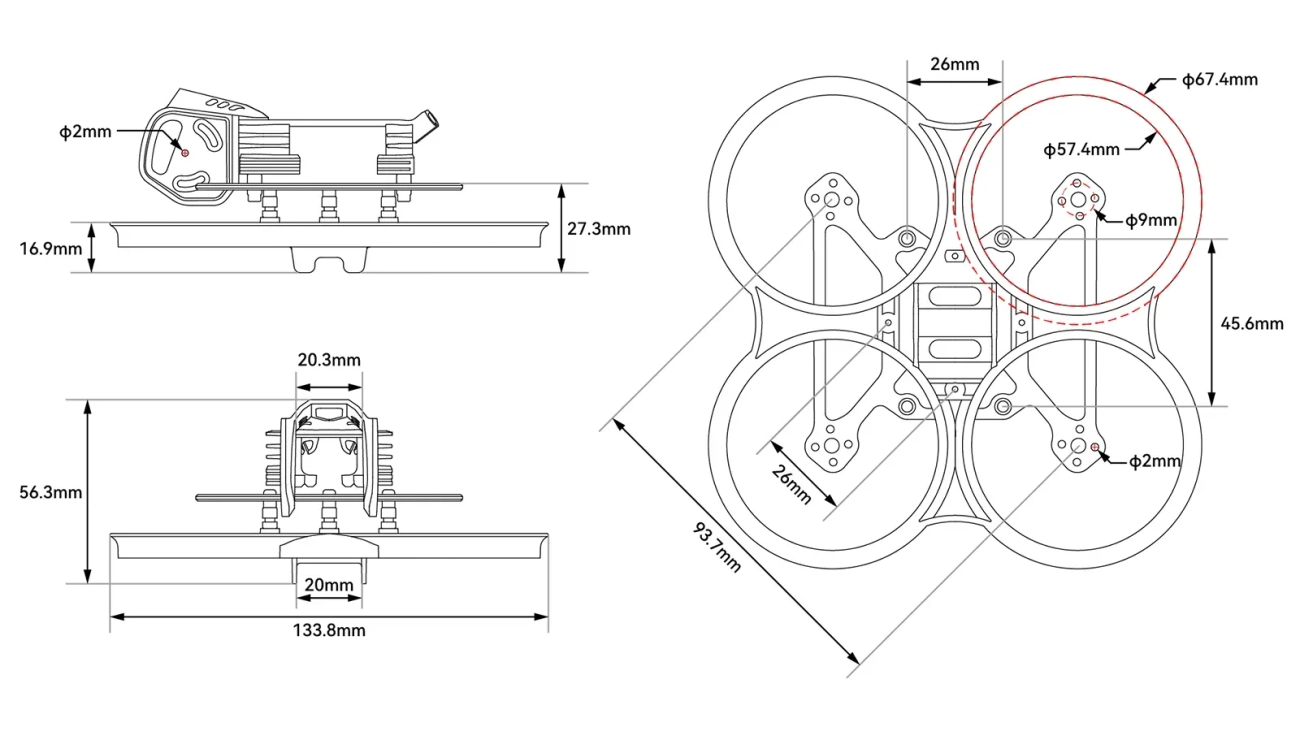

Frame Diagram with O4 Pro Mount

This layout shows how the Pavo20 Pro Brushless Whoop frame is configured with the O4 Air Unit Pro mount, making it easier to plan your build and installation.

O4 Air Unit Pro Mount Diagram

Take a closer look at the mount structure and key installation points of the O4 Air Unit Pro bracket.

Important Notes

1. The O4 Air Unit Pro mount works only with the DJI O4 Air Unit Pro and is not compatible with the standard O4 Air Unit or DJI O3 Air Unit.
2. This mount is designed exclusively for the BetaFPV Pavo20 Pro, including the NightFire Edition.

Compatible HD VTX Ecosystem

The Pavo20 Pro platform is known for its flexible HD VTX design, supporting systems such as DJI O3 Air Unit, Caddx Vista, RunCam Link, and DJI O4 Air Unit Pro. This version is focused on the O4 Pro mount, making it a great choice for pilots upgrading their current setup or building a lightweight cinewhoop with the latest HD gear in mind.

Optimized for HD VTX Performance

The O4 Pro mount has been developed to maximize compatibility, protection, and usability for HD FPV flying. Its updated shape supports a cleaner build, convenient access to accessories like ND filters, and a more secure overall fit for demanding hobby use.

Why Choose the O4 Pro Mount?

Based on the proven O3-style mounting concept, the O4 Air Unit Pro bracket adds meaningful improvements for modern FPV builds. Dual mounting holes help fine-tune camera positioning, the angled antenna holders improve cable and antenna management, and the streamlined design makes this mount a smart solution for pilots who want both cinematic precision and freestyle durability.

What's Included

• 1x O4 Air Unit Pro Mount
• 6x Rubber Dampers
• 6x M2×10 Screws
• 6x M2×4 Screws
