Frame for the Pilotix Mark4-8 V2 Partizan Edition Drone
36,00 €

PILOTIX / MARK4-8 V2 / DRONE FRAME

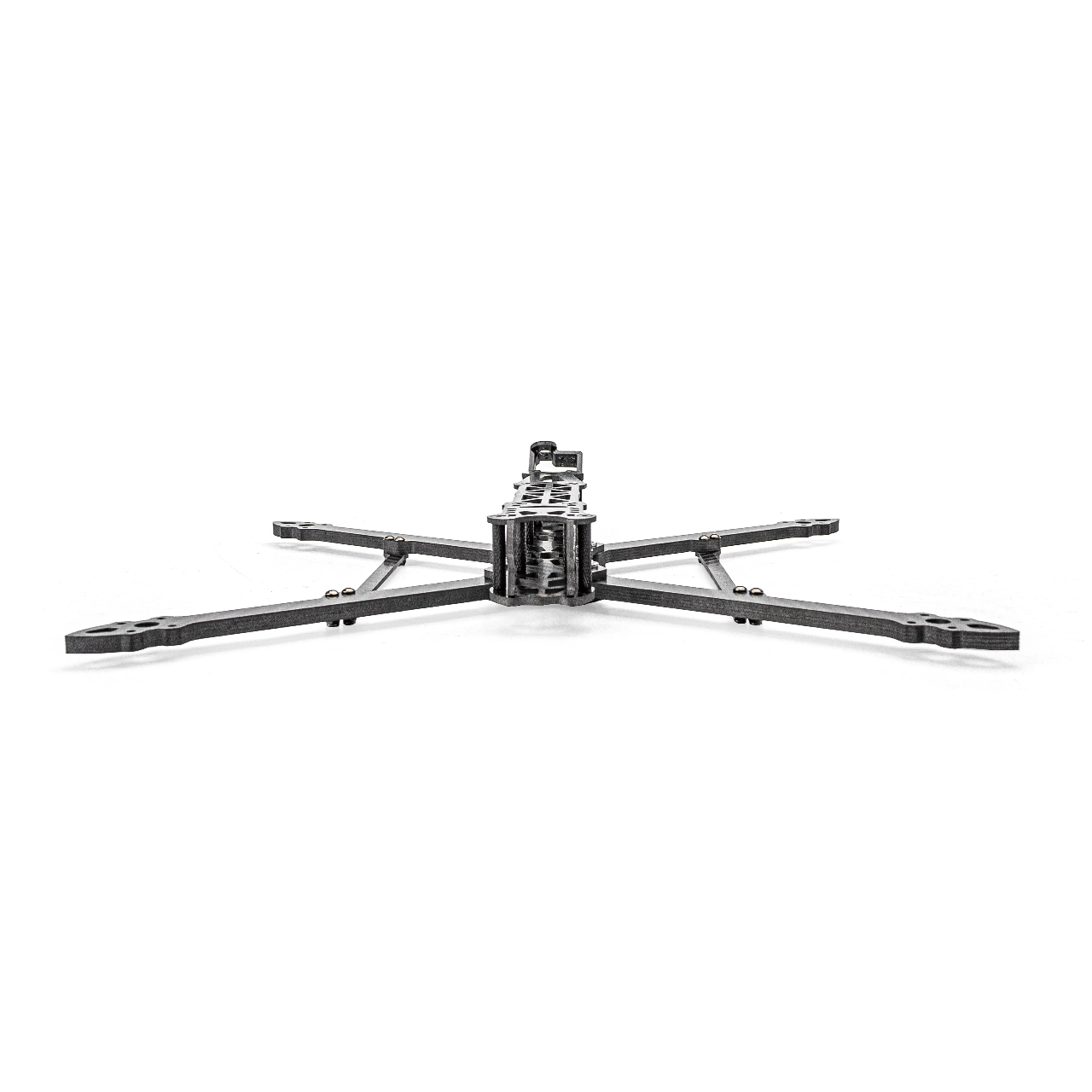

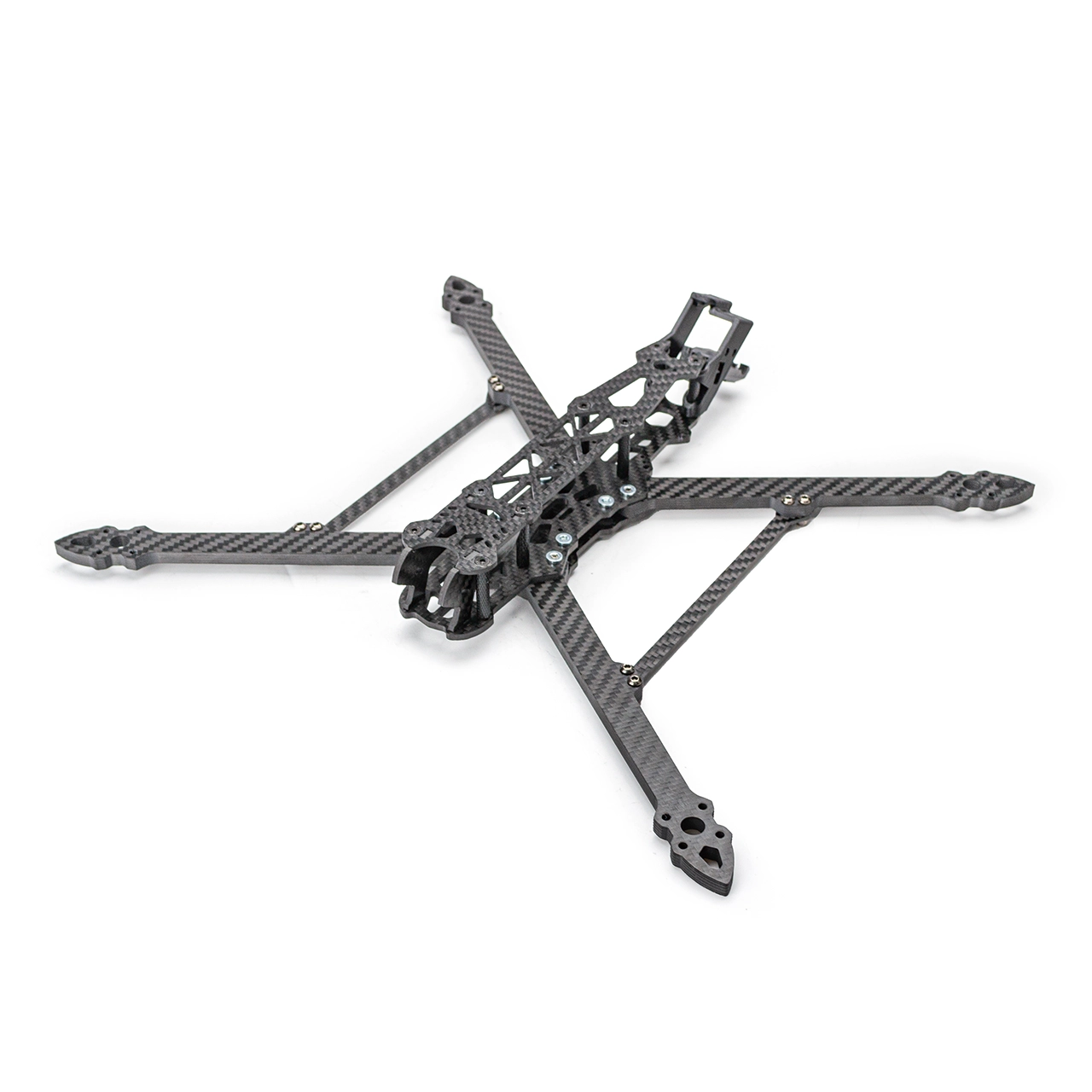

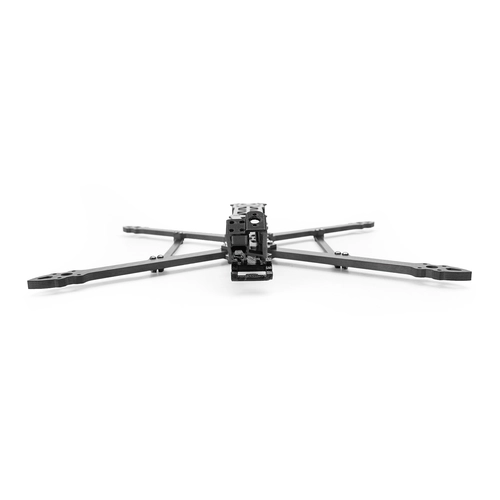

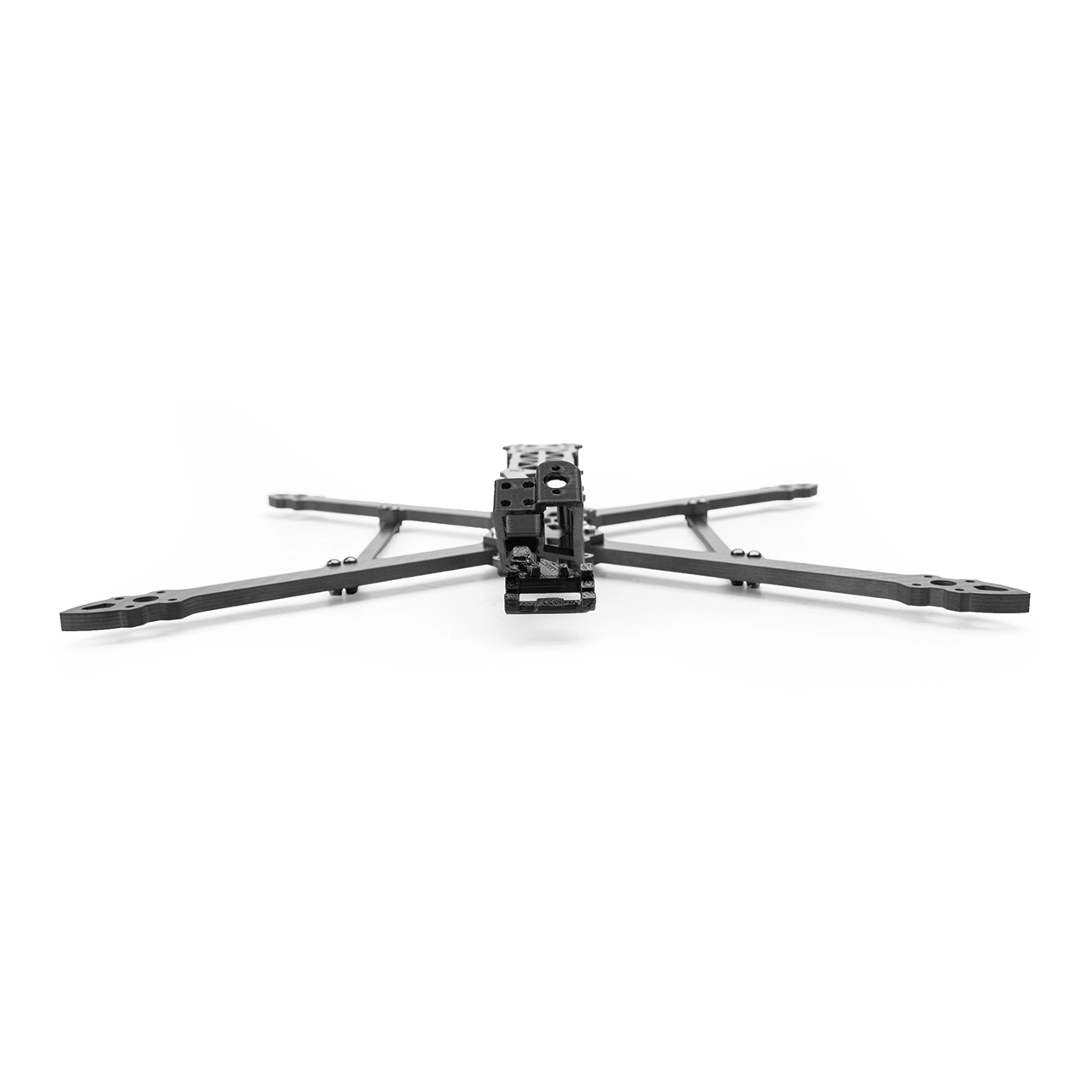

Pilotix Mark4-8 V2 Partizan Edition drone frame

Pilotix Mark4-8 V2 is an 8-inch carbon fiber frame designed for long-range and FPV flights. It combines a durable, lightweight construction with customization options.

The improved geometry reduces vibrations and improves flight stability, while the modular design allows for quick replacement of individual components without fully disassembling the frame.

Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame

Key information

Model
Mark4-8 V2
Frame size
8 inches
Material
Carbon fiber
Wheelbase
367 mm
Arm thickness
6 mm
Top plate thickness
2,5 mm
Bottom plate thickness
2 mm
Side camera panel thickness
2,5 mm
Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame

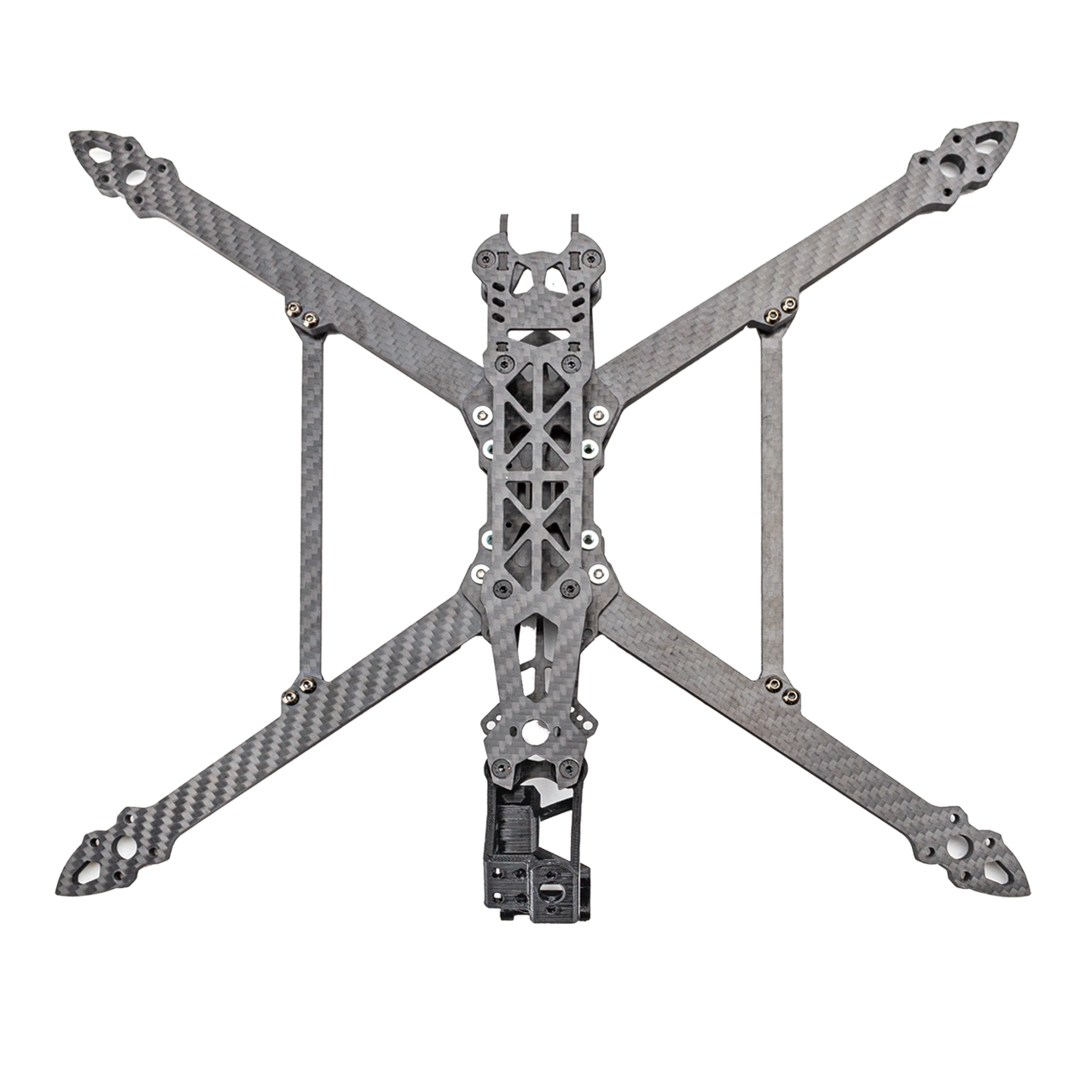

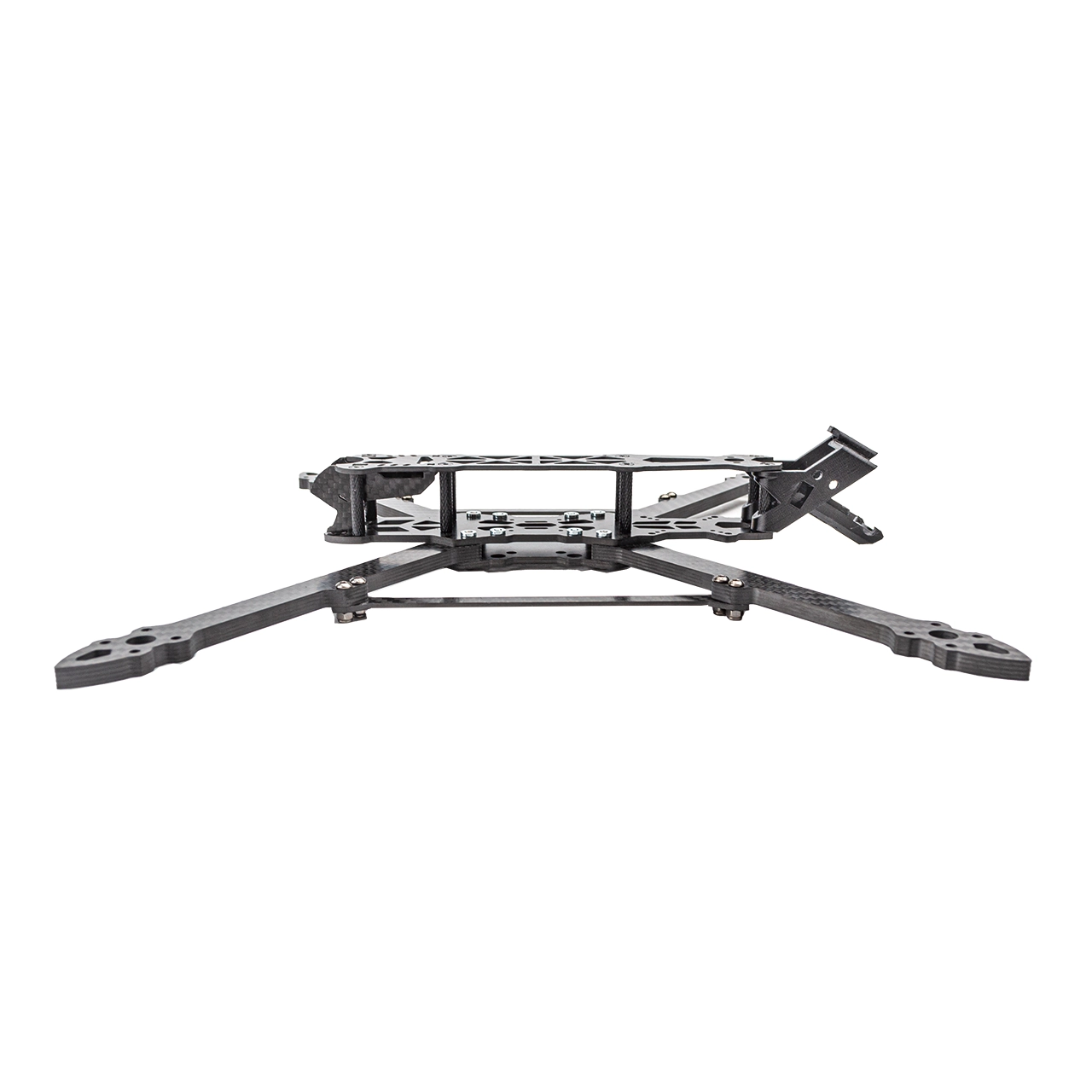

CONSTRUCTION

Frame dimensions and plate thickness

The frame has a 367 mm wheelbase and weighs 214 g. The arms are 6 mm thick, the top plate is 2,5 mm thick, the bottom plate is 2 mm thick, and the side camera panel is 2,5 mm thick. The internal space is 35 mm high.

MOUNTING

Flight controller and motor mounts

Flight controller mounting options include 20x20 mm and 30,5x30,5 mm; the FC mounting holes have a 30,5 mm spacing. The motor mounts fit 16x16 mm and 19x19 mm mounting patterns.

Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame
Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame

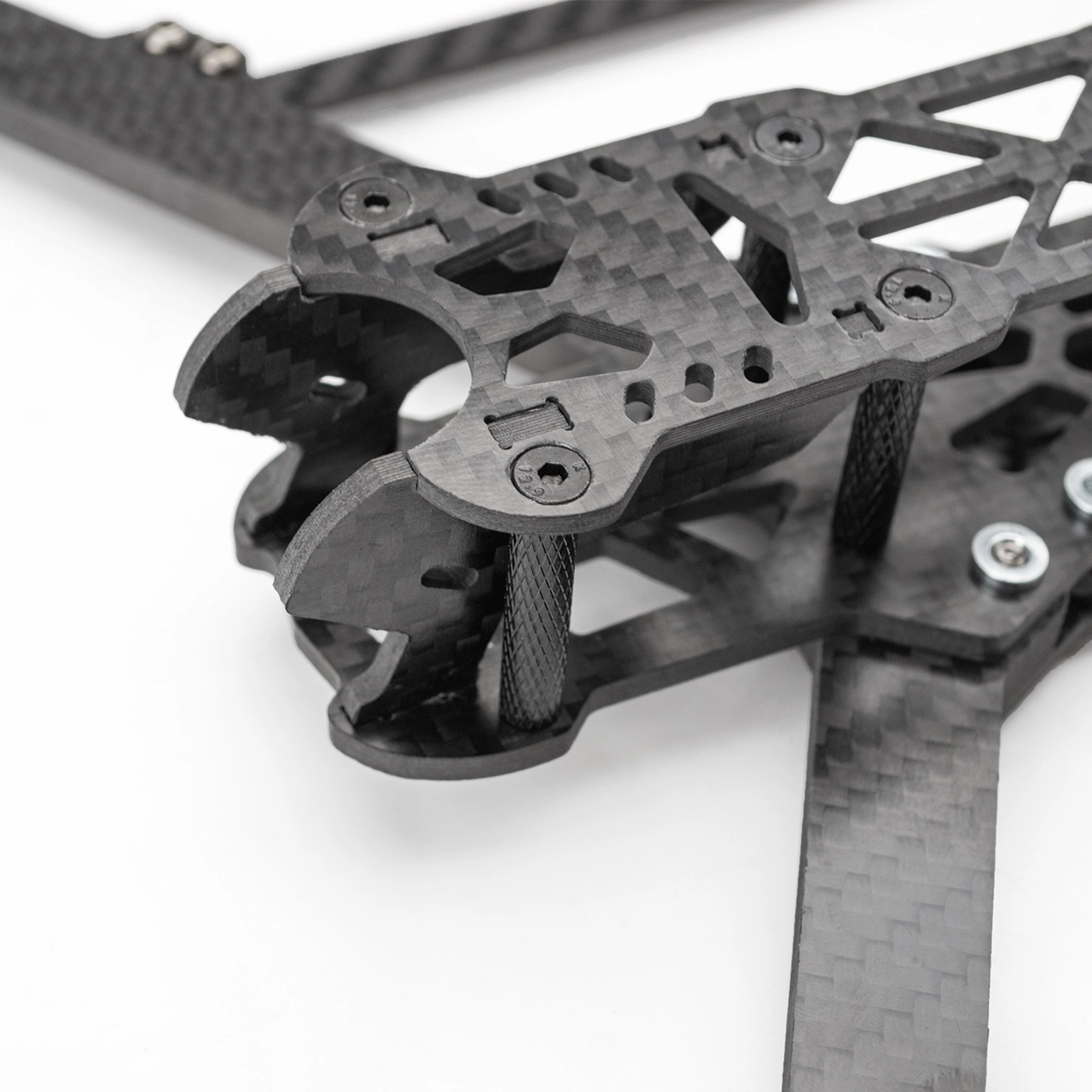

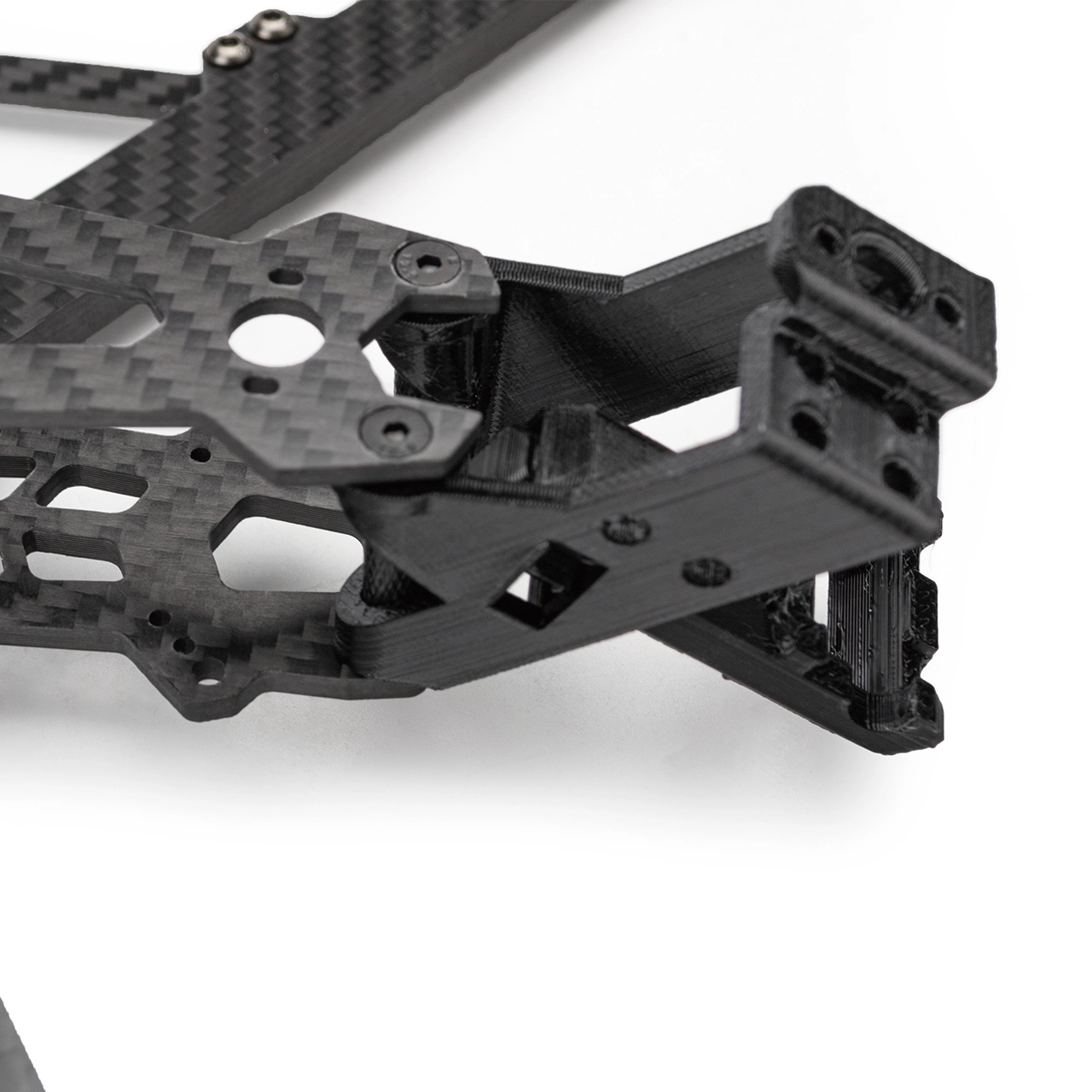

CAMERA

Micro FPV camera mount

The frame allows mounting a Micro-size FPV camera (19 mm). The side camera panels are 2,5 mm thick.

APPLICATION

For long-range and FPV flights

The eight-inch carbon fiber frame is designed for long-range and FPV flights. The improved geometry reduces vibrations and promotes flight stability.

Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame
Product image: Pilotix Mark4-8 V2 Partizan Edition drone frame

KIT

Frame assembly components

The kit includes carbon fiber plates, blocks, aluminum standoffs, screws and nuts, as well as prints, a battery pad, and battery straps.

TECHNICAL SPECIFICATIONS

Technical specifications

ModelMark4-8 V2
Frame size8 inches
MaterialCarbon fiber
Wheelbase367 mm
Arm thickness6 mm
Top plate thickness2,5 mm
Bottom plate thickness2 mm
Side camera panel thickness2,5 mm
Internal space height35 mm
Motor mounting hole spacing16x16 mm and 19x19 mm
Mounting hole spacing20x20 mm and 30,5x30,5 mm
FC mounting hole spacingFC mounting holes: 30,5 mm
Camera mount19 mm
Weight214 g
EAN5061099734554
Manufacturer's symbol6422

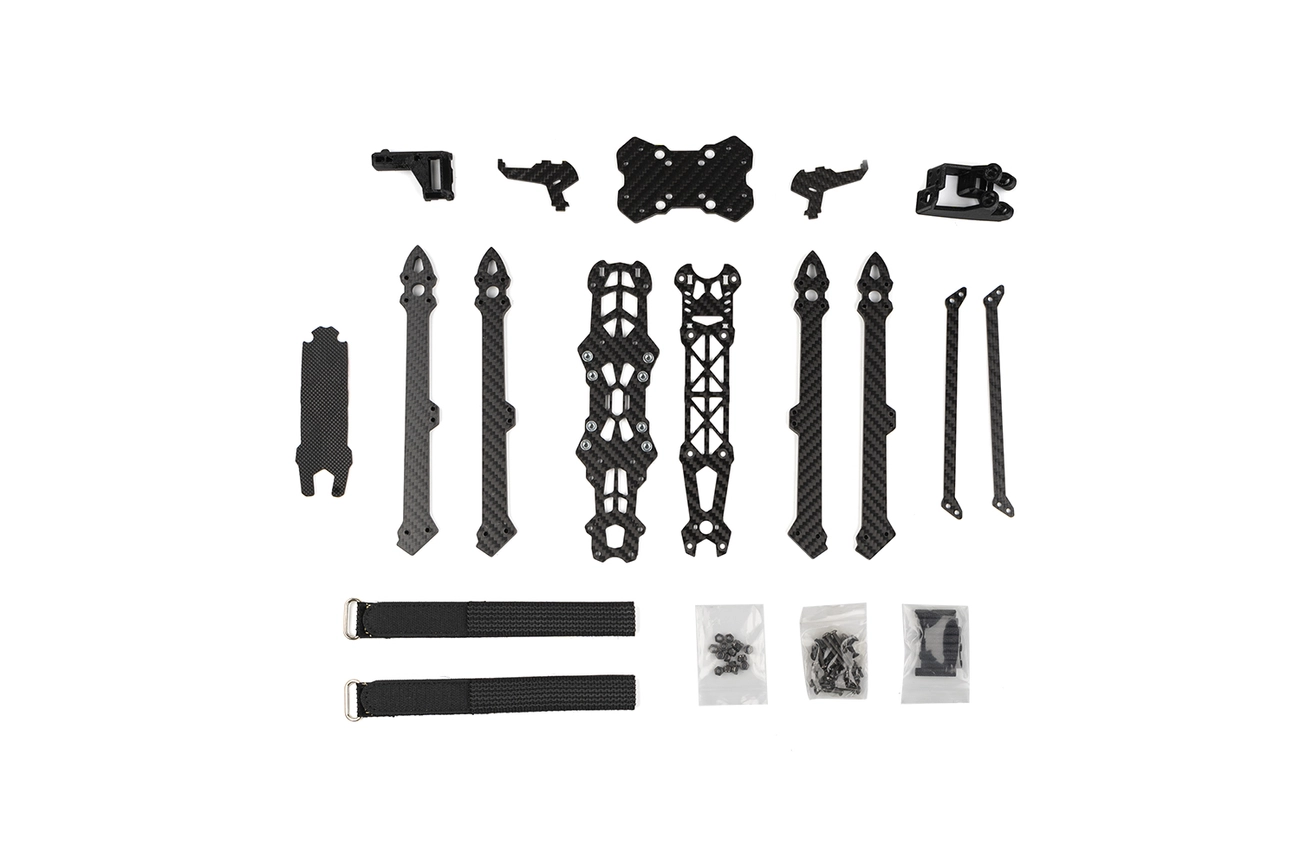

KIT CONTENTS

What's in the box

  • 1x Carbon fiber plate set
  • 8x Square block
  • 1x Aluminum standoff set
  • 1x Screw set
  • 1x Nut set
  • 1x Print set
  • 1x Battery pad
  • 2x Battery strap
