Frame Channel for BetaFPV Pavo20 (Blue)

BetaFPV Pavo20 Frame Duct for Pavo20 (Blue)

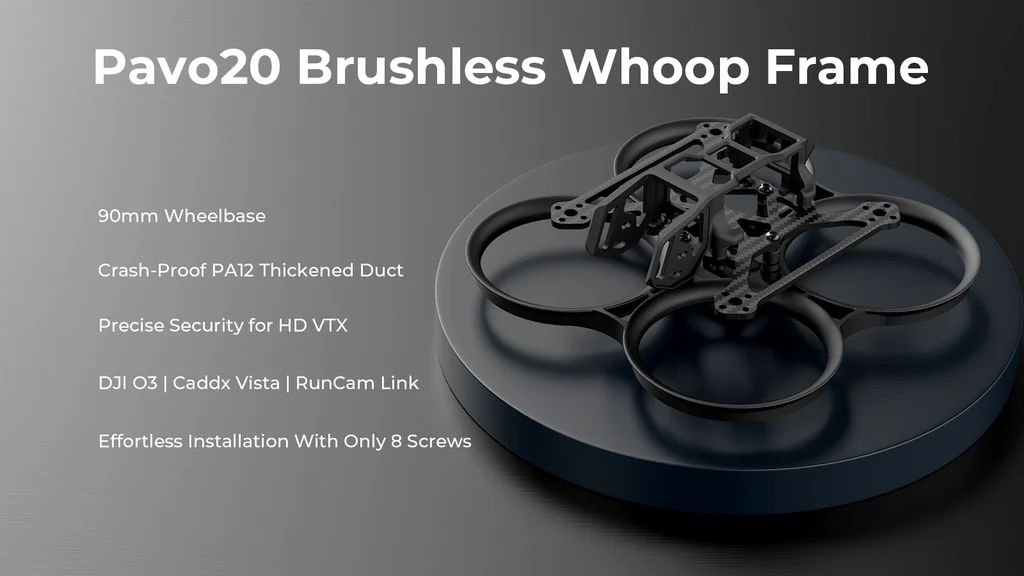

The BetaFPV Pavo20 Brushless Whoop Frame Duct in blue is designed for builders who want to get the most out of a 2-inch DJI O3 cinewhoop under 150 g. Engineered for performance, durability, and a clean HD setup, this redesigned frame delivers precise protection, improved airflow, and excellent compatibility with popular HD VTX systems such as DJI O3 Air Unit, Caddx Vista, and RunCam Link. Made from tough PA12 material with reinforced prop guards, it is built to handle demanding freestyle and cinematic flights while keeping your electronics and camera better protected.

Key Features

• Designed for 2-inch cinewhoop builds with support for DJI O3 setups under 150 g.
• Compatible with popular HD VTX systems, including DJI O3 Air Unit, Caddx Vista, and RunCam Link.
• Durable PA12 construction with reinforced protective ducts for improved impact resistance.
• Aerodynamic frame design optimized for efficient airflow and strong flight performance.
• Integrated HD VTX mount for easier installation without constant screw adjustment.
• 4-point camera side panel mounting helps protect the lens and keeps the camera angle secure during hard flights.
• Supports ND filter installation for smoother cinematic footage.
• Open battery strap slot with side retainers keeps the battery firmly in place during flight.

Note: The Pavo20 frame supports 2S–4S battery fitment, but the Pavo20 quad itself is intended for 3S batteries only.

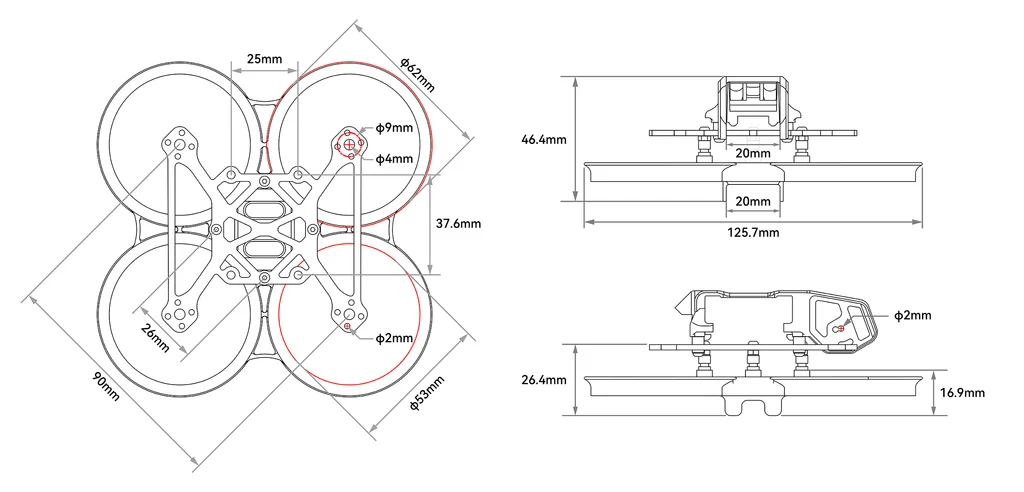

Specifications

• Product: Pavo20 Brushless Whoop Frame
• Wheelbase: 90 mm
• Material: PA12 / PP
• Weight: 26.7 g (with HD VTX mount), 13.8 g (protective duct), 4.1 g (HD VTX mount only)

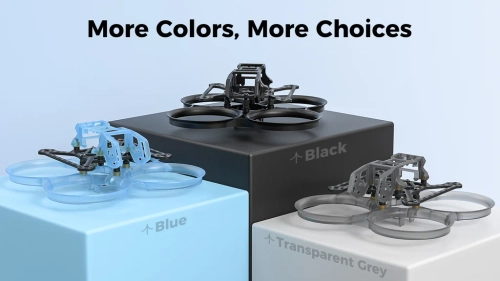

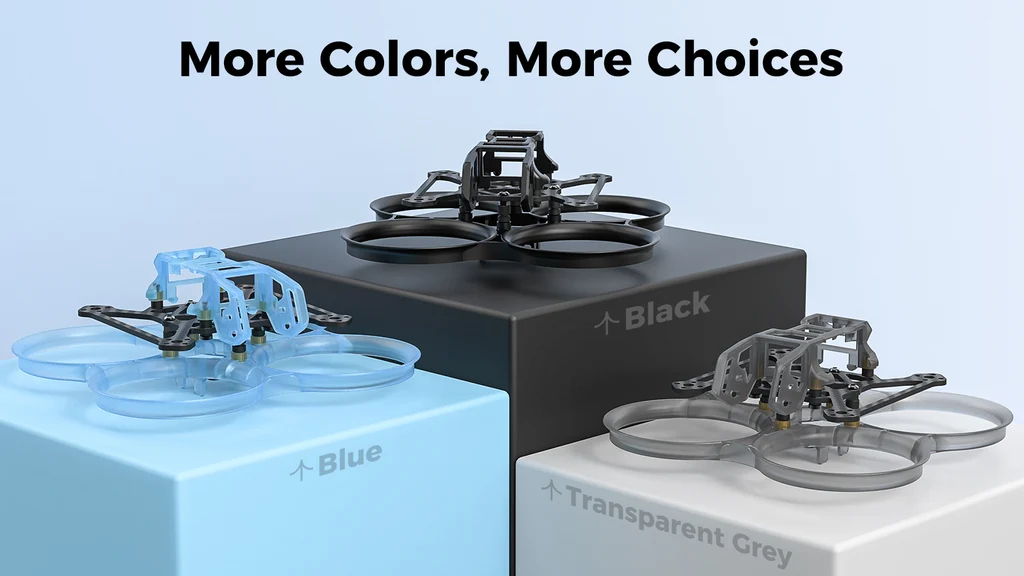

• Color: Black / Blue / Transparent Gray
• Top plate thickness: 2 mm
• Camera size: 19 mm / 20 mm
• Camera filter support: Yes
• FC mounting: 26 × 26 mm, suitable for standard whoop FC boards
• Motor mounting: 4-M2-φ9 mm
• Battery slot width: 20 mm

HD VTX Compatibility

The Pavo20 frame is ready for a range of HD FPV systems, making it a flexible option for custom builds. The DJI O3 Air Unit offers high-quality HD recording and stable dual-band transmission, while the Caddx Vista provides low-latency 720p video performance. The RunCam Link is also supported, giving pilots more freedom to build the setup that suits their flying style best.

Precise Protection for HD Gear

This frame has been redesigned to provide more precise protection for your HD camera system. The side camera panels and 4-point mounting structure help shield the lens while keeping the camera firmly positioned. It also makes ND filter installation quick and easy, which is a great bonus for pilots focused on cinematic footage. The integrated brass nut design improves durability and simplifies assembly, while the battery mounting area keeps your pack stable and secure throughout the flight.

Note: The 2S–4S specification applies to the frame fitment. The Pavo20 quadcopter itself supports 3S batteries only.

Vibration behavior and tuning considerations for the Pavo20 are similar to those found on the Pavo Pico platform, which can be helpful for builders already familiar with the series.

Integrated HD VTX Mount

The integrated HD VTX mount is built for a cleaner and more reliable installation. Using a molded brass nut structure and half-thread screws, it reduces the need for repeated adjustment, improves anti-vibration performance, and helps maintain a stable HD image in flight. It is also compatible with the Pavo Pico platform.

Pavo Series COB LED Strip

The Pavo Series COB LED Strip is a 5V LED strip measuring 560 mm x 4 mm, designed to add extra visibility and style to your build. It can be mounted securely to the frame for better visibility in low-light conditions or night flying, while also giving your cinewhoop a custom look. Available colors include Ice Blue, White, Green, and Red, with color-mixing options for even more personalization.

ND Filter for DJI O3 Camera

The BETAFPV ND Filter for DJI O3 Camera is designed specifically for the Pavo20 and Pavo Pico Brushless Whoop. These lightweight filters reduce the amount of light entering the lens, helping pilots achieve longer exposure times or a wider aperture for smoother, more cinematic footage. Made from high-quality optical glass, they are easy to install and a smart upgrade for HD-focused builds.

Recommended Parts

• FC & ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
• Motors: 1103 | 8000KV / 8500KV / 11000KV
• Propellers: GF 2015-2B, GF 2020-4B
• Battery: 2S–4S 450mAh–650mAh, LAVA 4S 450mAh 75C, LAVA 4S 550mAh 75C
• VTX: DJI O3, Caddx Vista, RunCam Link
• Filter: BETAFPV ND Filter

Package Includes

• Pavo20 Brushless Whoop Frame
• 1 x Pavo20 Whoop Duct
• 1 x 130 mm Battery Strap
• 2 x Anti-slip Battery Pads
