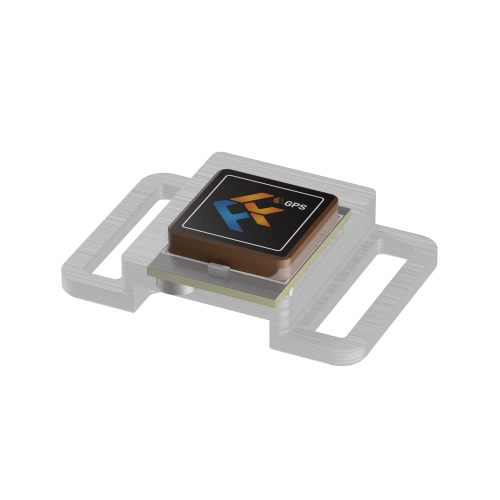

FlyFishRC M10 Mini GPS Module

FlyFishRC M10 Mini GPS Module

The FlyFishRC M10 Mini is a compact, fast, and easy-to-use GPS module designed for FPV and RC hobby builds where low weight and reliable positioning matter. Equipped with a 12×12 mm RHCP ceramic antenna, it delivers strong signal reception and a stable connection, making it a great choice for pilots looking for dependable GPS performance in a tiny form factor.

Key features:

• Ultra-compact and lightweight design for space-saving installs
• 12×12 mm RHCP ceramic antenna for excellent signal reception
• Fast hot start time of just 1–3 seconds
• Wide input voltage range: 3.3–5.5 V
• Recommended baud rate: 115200 bps
• Ideal for FPV drones, RC aircraft, and other hobby electronics projects

Specifications:

• Speed accuracy: 0.05 m/s
• Cold start: 30 s
• Hot start: 1–3 s
• Tracking sensitivity: -167 dBm
• Input voltage: 3.3–5.5 V (typically 5 V)
• Maximum altitude: 50,000 m
• Maximum speed: 500 m/s
• Maximum acceleration: ≤4G
• Baud rate: 4800–115200 bps (115200 bps recommended)
• GPS module dimensions: 16.2 × 12.3 × 4.9 mm
• Ceramic GPS antenna dimensions: 12×12 mm
• Weight: 2.4 g (±0.5 g)

Pin definition:

• VCC: Main system power input, 5 V, approx. 40 mA during operation
• GND: Ground
• RXD: Data input
• TXD: Data output

Package contents:

• 1× FlyFishRC M10 Mini GPS Module
• 1× GPS battery mounting strap
• 4× #30 silicone wires
• 1× GPS user manual
