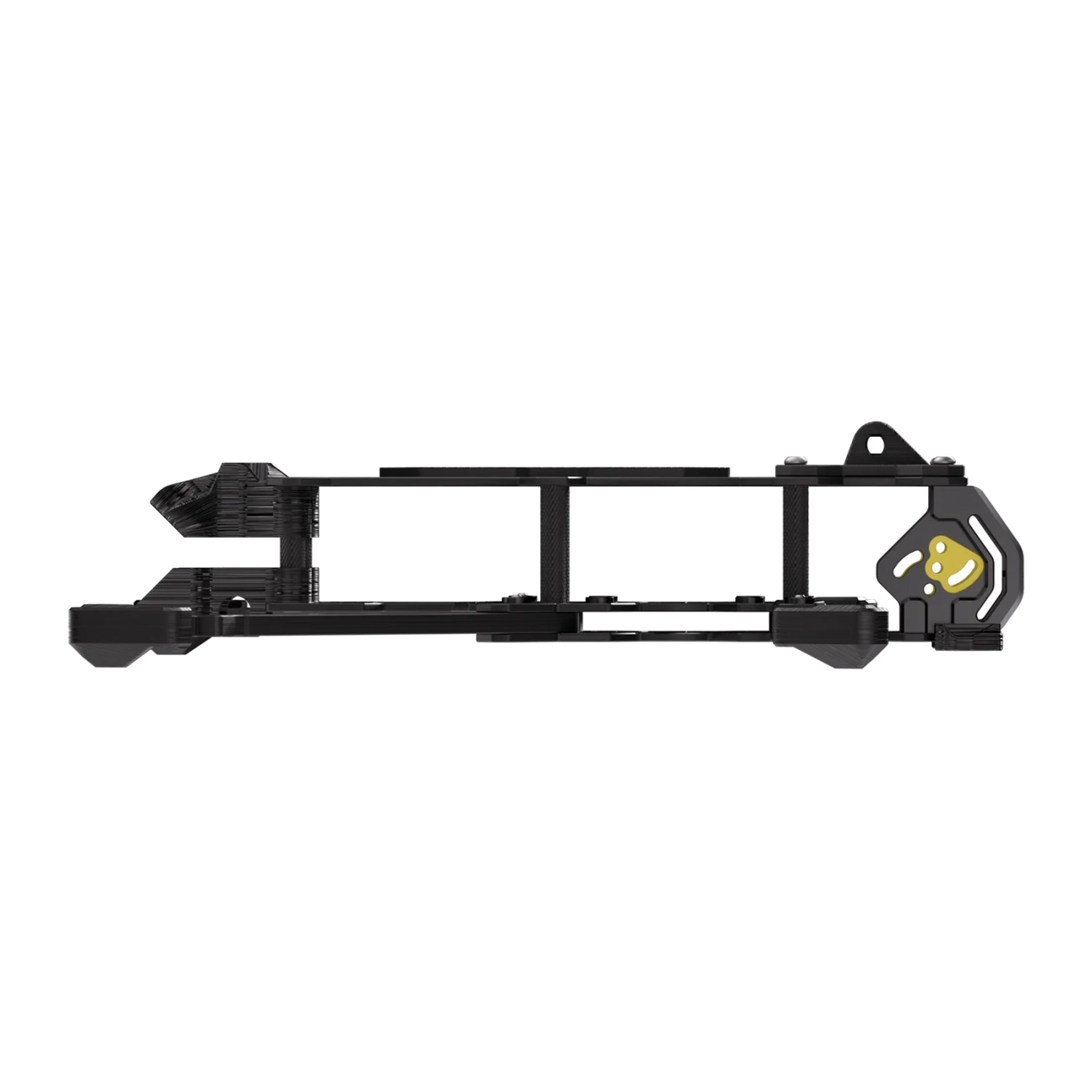

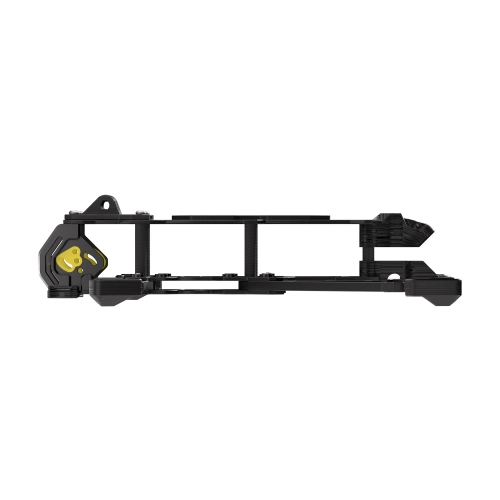

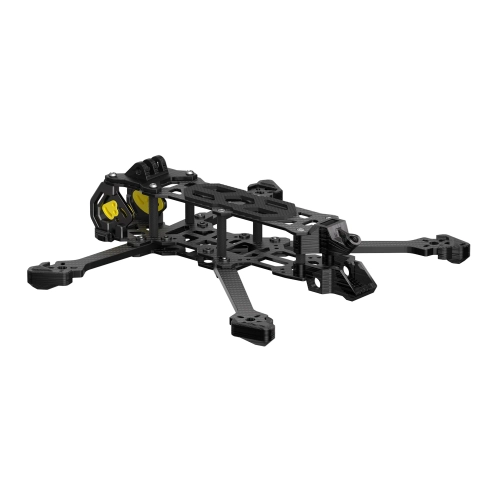

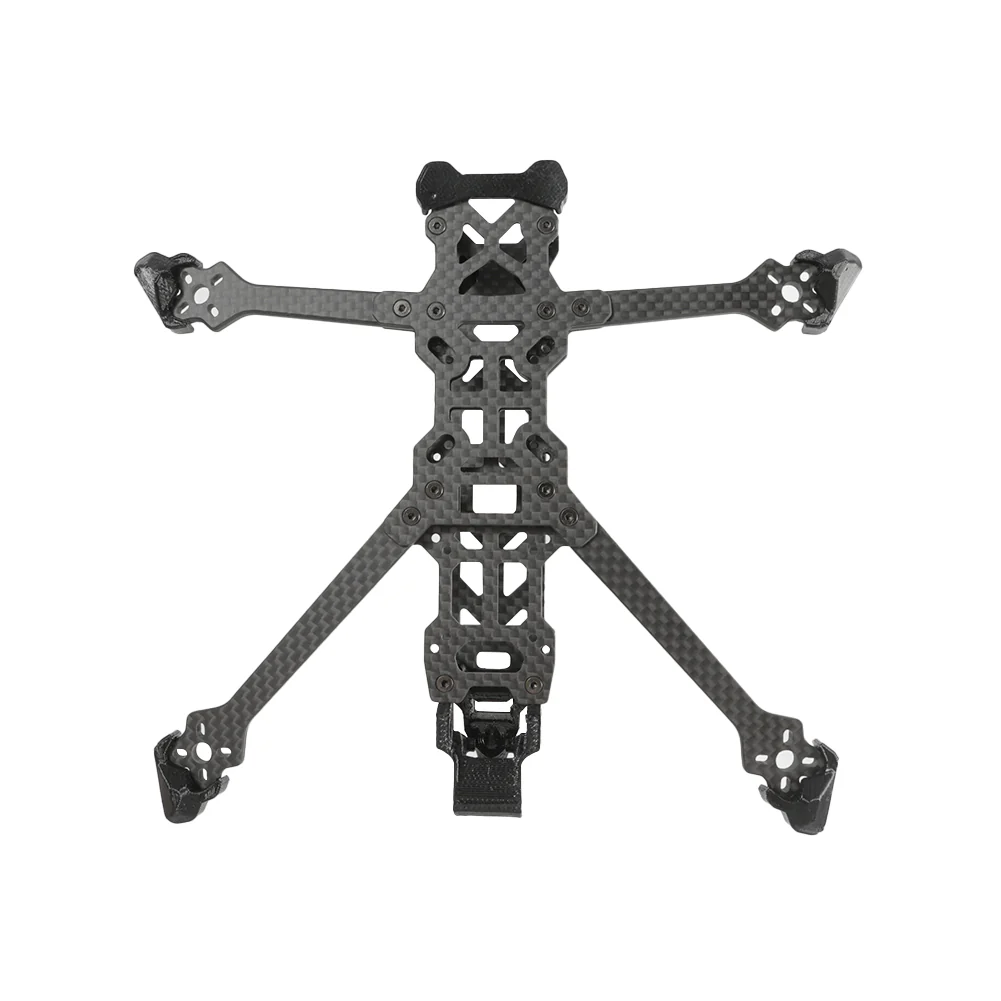

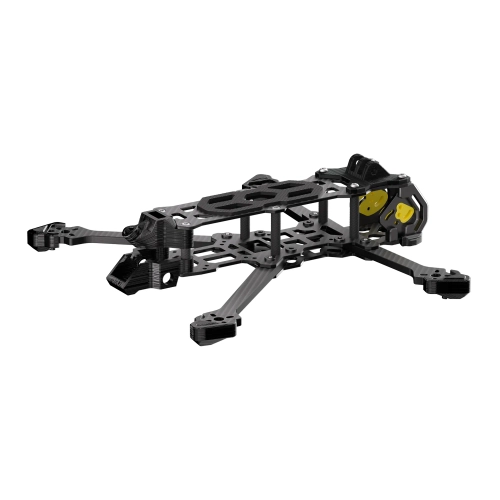

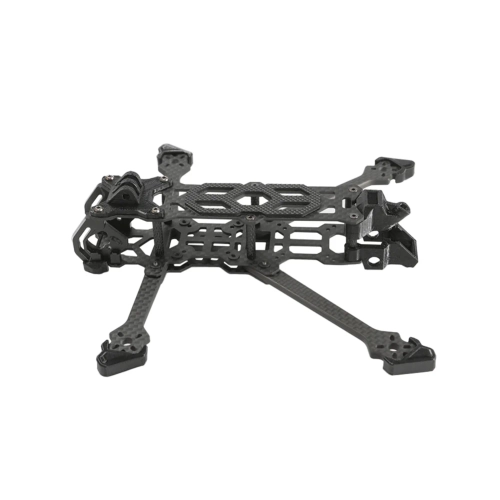

FlyFishRC Atlas 4 LR FPV Frame

Atlas 4 LR FPV Frame

FlyFishRC Atlas 4 – New, Ultra-Light 4" Frame

Atlas is a new, exceptionally lightweight 4-inch frame from FlyFishRC, weighing only 55g. It's a strong contender in the sub-250g category!

Unlike traditional long-range frames, Atlas stands out with its versatility. It offers longer flight times, but its true strength lies in its ability for dynamic freestyle. FlyFishRC has extensively tested it in park FPV sessions, where it performed excellently!

Thanks to a thoughtful design that combines lightness with robust durability, Atlas handles any conditions. Equipped with CNC aluminum plates, silicone dampeners, and a deadcat layout, it ensures a stable, smooth flight without props in view.

Open and Flexible Design

In line with FlyFishRC's philosophy, all 3D models are available as open-source on our Thingiverse, allowing for modifications.

Atlas weighs only 55g with a full TPU set, which includes:
✔ Arm guards
✔ Sport camera mount
✔ VTX and RX antenna mounts
✔ Mini GPS holder
✔ XT30 mount for frame integration

Don't want integrated XT30?
For full flexibility, two additional slots have been cut into the top plate – at the back and front, just behind the camera mount. You can also simply route the cable from the side.

Atlas gives you complete configuration freedom:

• Want sub-250g? Choose AIO 30-40A, DJI O3/Vista/Walksnail/Analog, FlyFishRC 1804 motors, and a 6S 380mAh battery – you'll easily stay under 250g!
• Looking for a stronger setup? FlyFishRC 2004 motors and a larger battery provide more power and flight time!

Key Features:

✔ Top-quality T700 carbon fiber
✔ Sub-250g in the right configuration
✔ Thoughtful, lightweight, and durable design
✔ Only 55g (with TPU)
✔ No props in view
✔ CNC aluminum plates protecting the camera
✔ Silicone dampeners eliminating "jello" effect in DJI O3
✔ Compatible with 19mm/20mm cameras
✔ High-quality TPU components
✔ Optional XT30 integration
✔ Dedicated space for capacitor
✔ Designed for long flights
✔ All accessories for analog and HD builds included
✔ 12.9 grade screws with Loctite for added durability

Technical Specifications:

• Model: Atlas 4
• Geometry: Deadcat
• Wheelbase: 173 mm
• Arm thickness: 3.5 mm
• Top plate thickness: 1.5 mm
• Middle plate thickness: 1.5 mm
• Bottom plate thickness: 1.5 mm
• Propeller size: 4 inches
• CNC plate thickness: 4 mm
• FPV camera spacing: 19mm/20mm
• Weight: 55.6g (with TPU)
• Dimensions: 108 mm × 139 mm × 28 mm
• Motor mounting holes: 9 mm × 9 mm / 12 mm × 12 mm (M2)
• Stack mounting holes: 20 mm × 20 mm / 25.5 mm × 25.5 mm (M2)
• VTX mounting holes: 20 mm × 20 mm / 25.5 mm × 25.5 mm (M2)

Kit Contents:

• 1x Atlas 4 Frame Kit

Recommended Components (not included):

• Motors: FlyFishRC Flash 1804
• Propellers: HQProp T4x2.5 / HQProp T4x2x3
• FPV System: DJI O3 Air Unit
