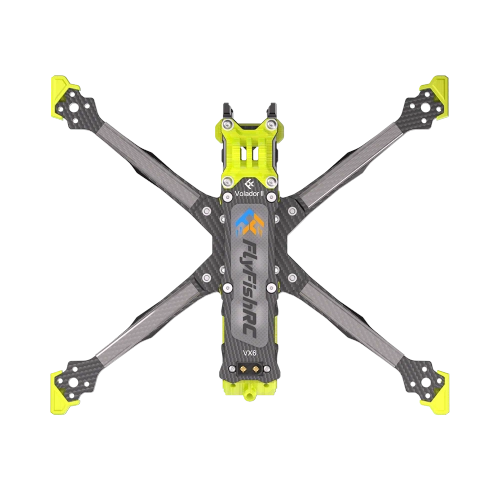

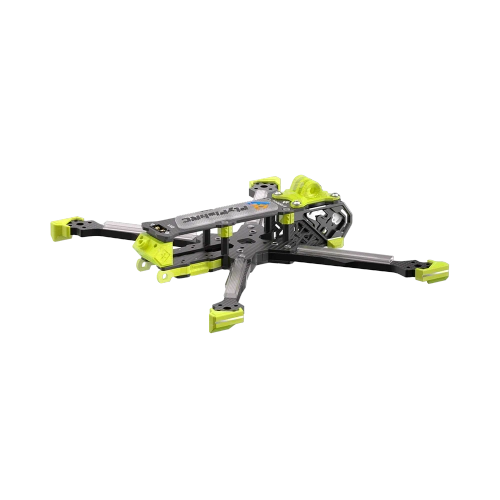

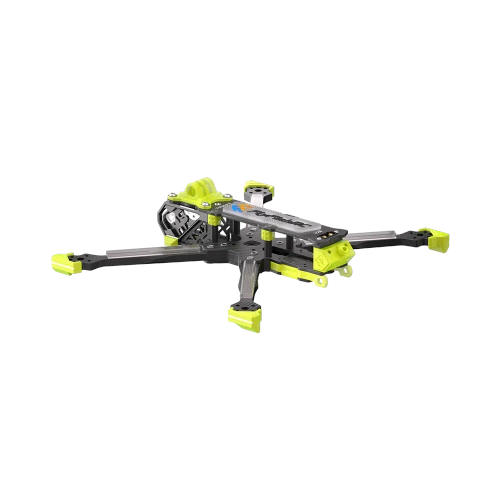

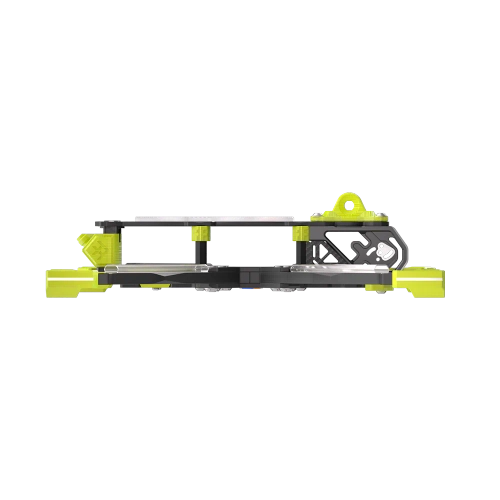

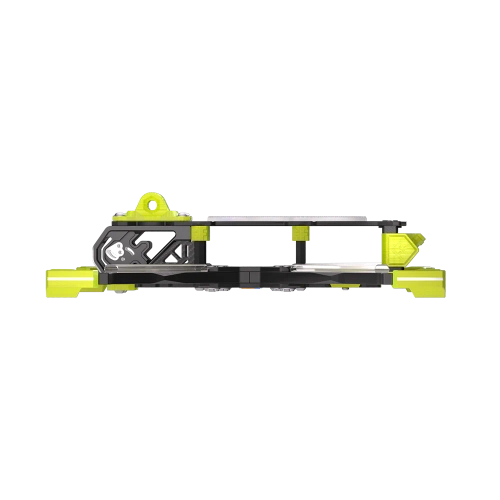

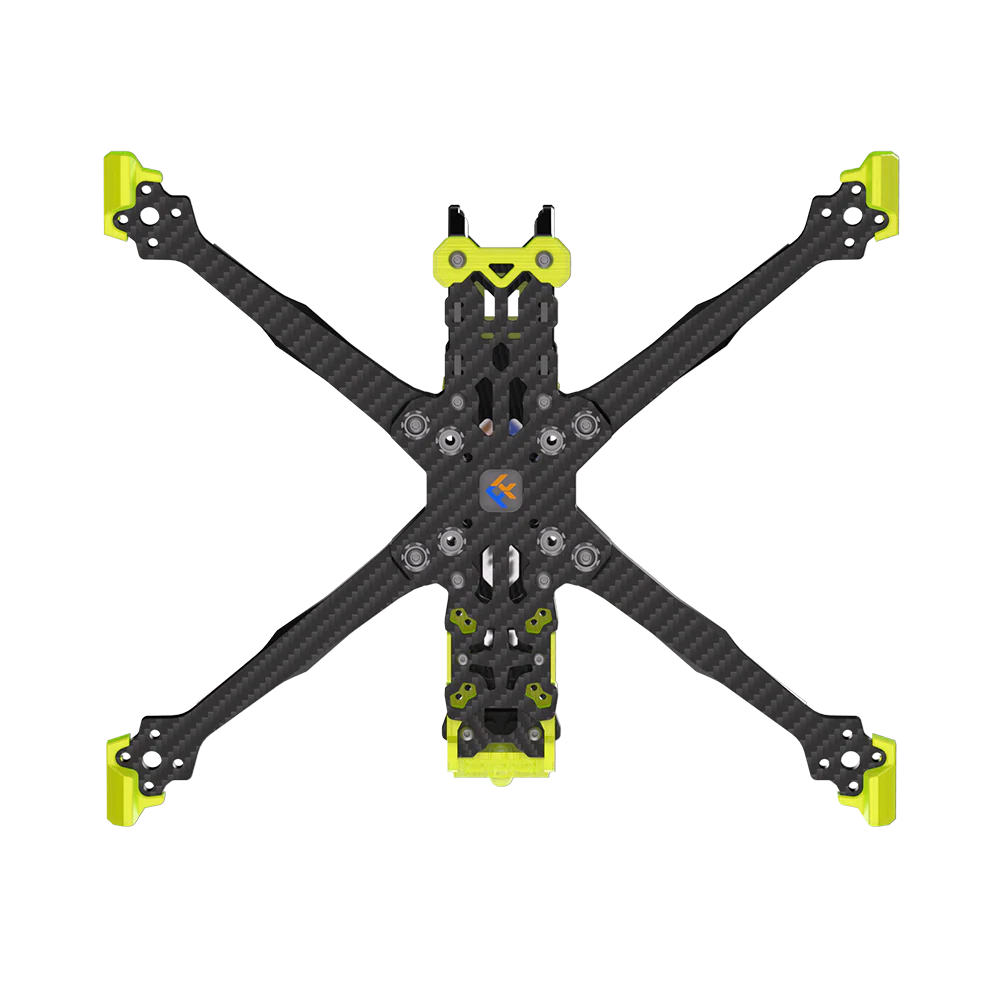

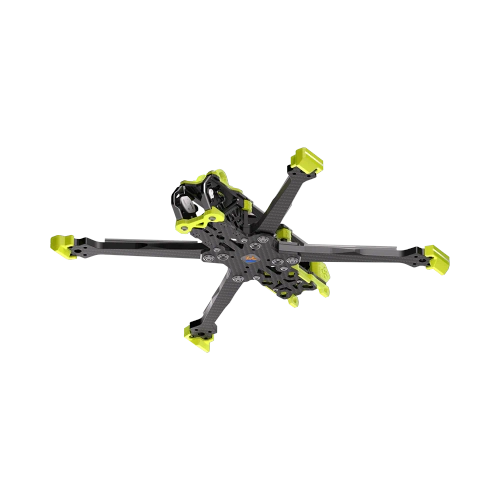

FlyFish RC Volador Ⅱ VX6 O4 FPV Freestyle T700 Frame Kit - Crystal yellow

FlyFishRC Volador II VX6 O4 Pro Freestyle T700 Frame (Yellow)

The FlyFishRC Volador II VX6 O4 Pro Freestyle T700 is a 6-inch freestyle FPV frame built for pilots who want a clean setup, high compatibility, and confidence-inspiring durability. The Volador II platform keeps the build process simple and organized, while upgraded materials, refined geometry, and smart accessories make it an excellent choice for both analog and HD builds.

The VX layout uses a Squashed X configuration for precise control and predictable freestyle handling. Its compact structure helps reduce frame resonance, while the independently removable arms make maintenance quicker and easier after hard sessions. Carefully designed TPU parts improve both protection and cable management, giving you one of the cleanest and most integrated-looking FPV builds in its class.

This version is also optimized for modern digital systems, including DJI O4 Air Unit installation. A dedicated silicone camera damping insert helps reduce “jello” in DVR footage, while maintaining compatibility with 19 mm / 20 mm cameras. Combined with strong CNC aluminum camera side plates and premium T700 carbon fiber, the result is a frame that looks sharp and performs even better in the air.

The frame is made from high-strength CNC aluminum parts and premium T700 carbon fiber plates with a smooth finish and evenly chamfered edges. That means better durability, improved wire protection, less wear on battery straps, and a more premium overall feel. A redesigned battery pad with extra texture improves grip, while the rear integrated XT60 mount helps protect power leads from prop strikes and makes one-handed battery connection much more convenient.

Everything needed for an analog or HD build is included in the kit, and the hardware comes with pre-applied Loctite for improved reliability. If you care about a tidy, solid, and great-looking freestyle quad build, the Volador II VX6 is built to deliver.

Key Features

• Premium T700 carbon fiber construction
• Squashed X geometry for maximum freestyle control
• Compact design that helps minimize frame resonance
• DJI O4 Air Unit-ready with silicone camera damping insert
• Compatible with 19 mm / 20 mm FPV cameras
• New CNC aluminum camera plates for improved camera protection
• Integrated rear XT60 mount for safer and cleaner power routing
• High-quality TPU components for protection and a clean finish
• Upgraded anti-slip battery pad with stronger adhesive
• Motor wire protection tubes included
• Supports both analog and HD builds
• Class 12.9 screws with factory-applied Loctite
• High compatibility with a wide range of FPV electronics

What’s New in V2

• Noticeably lighter frame design
• New lighter CNC side plates with improved fit for DJI O4 Air Unit
• New battery pad with better grip
• Added keystone brace to reduce arm vibration
• Added washers for the bottom screws
• Added motor wire protection tubes
• Top plate screws are now flush-mounted to better protect the battery in crashes
• New TPU arm guards are lighter and easier to remove
• All models include two TPU antenna mount options (with or without GPS mount)
• Updated bottom and middle plate thickness to 2.5 mm
• Improved arm-to-clamp plate connection for better stress distribution
• Symmetrical XT60 cutout in the top plate for reversible installation

VX6 Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Propeller size: 6 to 6.1 inch
• Material: T700 carbon fiber plates
• FPV camera width: 19 mm / 20 mm
• Weight: 188.2 g (with TPU parts)
• Color: Black / Yellow (optional)
• Overall dimensions: 209 × 159 mm
• Wheelbase: 268 mm
• Stack mounting: 20 × 20 mm / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• Motor mounting: 16 × 16 mm (Ø3 mm)

In the Box

• 1 × FlyFishRC Volador II VX6 frame kit
