FlyFish RC Volador Ⅱ VX6 O4 FPV Freestyle T700 Frame Kit - Black

FlyFishRC Volador II VX6 O4 Pro Freestyle T700 Frame (Black)

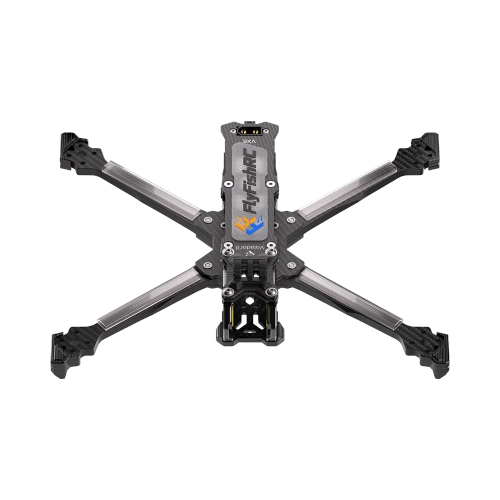

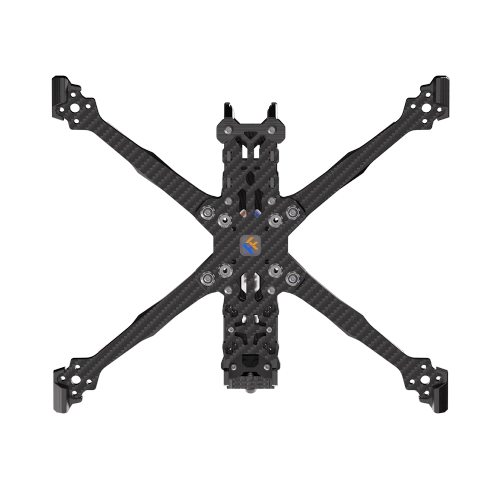

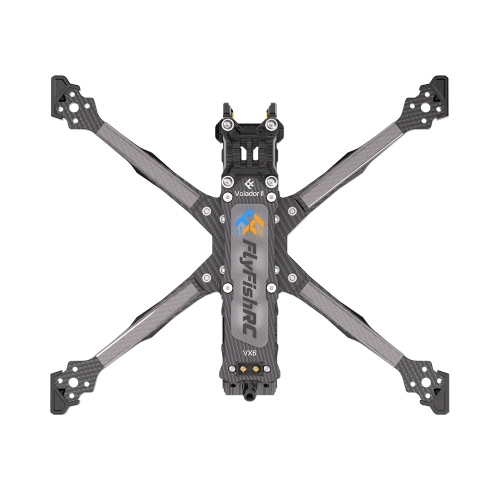

The FlyFishRC Volador II VX6 O4 Pro Freestyle T700 is a 6-inch freestyle FPV frame designed for pilots who want a clean build, high compatibility, and a solid, low-resonance structure. The Volador II series combines a simple and practical layout with all the essential accessories needed for an easy, tidy, and satisfying build.

The VX version uses a Squashed X layout, giving you excellent control and a balanced feel in the air. Its compact structure and independently removable arms help reduce frame resonance, while thoughtfully designed TPU parts make the whole setup look cleaner, more integrated, and more professional. If you care about both performance and aesthetics, this frame is built to impress.

For DJI users, FlyFishRC also designed a silicone camera damping insert specifically for the DJI O4 Air Unit camera, helping reduce “jello” in DVR footage. At the same time, the frame remains compatible with 19 mm / 20 mm FPV cameras, making it a flexible choice for a wide range of analog and digital systems.

The frame is built from high-strength CNC aluminum parts and premium T700 carbon fiber plates with a smooth surface and evenly chamfered edges. That means better durability, a cleaner finish, and less risk of damaging wires or battery straps during assembly and everyday use.

The redesigned battery pad with extra mesh texture offers improved grip and uses stronger adhesive for a more secure battery hold. A rear integrated XT60 mount helps protect power wires from prop strikes in crashes and makes one-handed battery connection much easier out in the field.

This frame includes the accessories needed for both analog and HD builds, plus 12.9-grade screws with pre-applied threadlocker for added reliability. Every detail, from the frame geometry to the TPU components, has been refined to create one of the cleanest and most polished freestyle builds in its class.

Key Features of the V2 Version

• Premium T700 carbon fiber construction
• Compact frame design to minimize resonance
• New CNC aluminum camera side plates for improved camera protection
• Silicone dampers for DJI O4 Air Unit to reduce jello in footage
• Integrated XT60 mount for improved safety and reliability
• High-quality, well-fitted TPU components
• Upgraded anti-slip battery pad
• New motor wire protection tubes
• Compatible with 19 mm / 20 mm cameras
• Includes accessories for analog and HD builds
• 12.9-grade screws with factory-applied threadlocker
• Wide electronics compatibility

Main Upgrades from V1 to V2

• Noticeably lighter frame
• New side CNC plates are lighter and better matched to the DJI O4 Air Unit
• Improved battery pad grip
• Added keystone support to reduce arm vibration
• Added washers for the bottom screws
• Added motor wire protection tubes
• Top plate screws are now flush-mounted to help protect the battery in crashes
• New TPU arm guards are lighter and easier to remove
• All models include two TPU antenna mounts (with or without GPS mount)
• Updated bottom and middle plate thickness to 2.5 mm
• Reworked arm-to-clamp plate connection for better stress distribution
• Symmetrical XT60 cutout in the top plate for mounting in either direction

VX6 Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Propeller size: 6 to 6.1 inch
• Material: T700 carbon fiber plates
• FPV camera width: 19 mm / 20 mm
• Weight: 188.2 g (with TPU parts)
• Color: Black / Yellow (optional)
• Overall dimensions: 209 × 159 mm
• Wheelbase: 268 mm
• Stack mounting: 20 × 20 mm / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• Motor mounting: 16 × 16 mm (φ3 mm)

What’s in the Box

• 1 × Volador II VX6 frame kit
