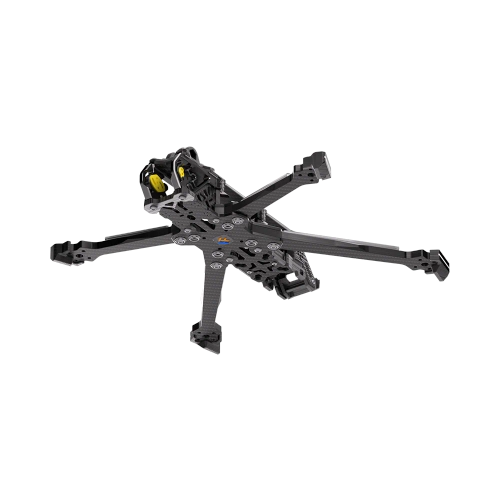

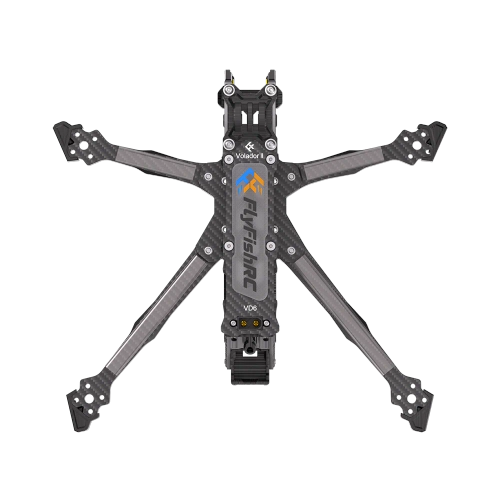

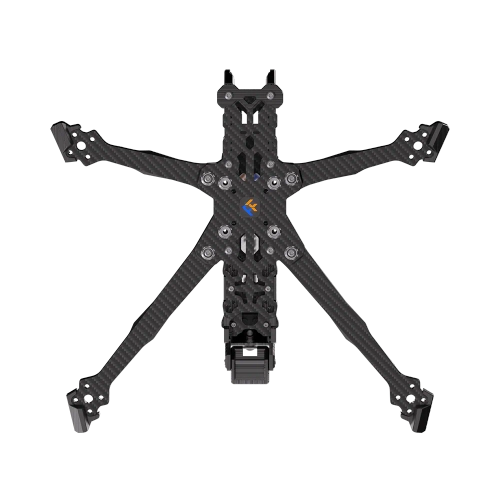

FlyFish RC Volador Ⅱ VD6 O4 Deadcat FPV LR T700 Frame Kit - Black

FlyFishRC Volador II VD6 O4 Pro Deadcat FPV LR Freestyle T700 Frame (Black)

The FlyFishRC Volador II VD6 O4 Pro Deadcat is a 6-inch FPV frame built for long-range flights and freestyle setups, combining a clean layout, broad electronics compatibility, and a refined structure that helps reduce unwanted resonance. The popular Deadcat geometry keeps propellers out of the camera view, making it a great choice for pilots who want cleaner footage and a more immersive flying experience.

Designed with convenience in mind, the Volador II makes the build process easier, cleaner, and more organized. Independent removable arms, premium TPU parts, and a thoughtfully engineered frame layout help create one of the neatest FPV builds in its class. If you care about both performance and a tidy-looking quad, this frame delivers on both fronts.

The frame also features a specially designed silicone camera damping insert for the DJI O4 Air Unit, helping reduce “jello” in DVR footage while remaining compatible with 19 mm / 20 mm cameras. High-strength CNC aluminum components and premium T700 carbon fiber plates provide durability, a smooth finish, and beveled edges that help protect wires and battery straps from damage.

A redesigned battery pad with an extra grippy surface improves battery hold, while the integrated rear XT60 mount helps protect power leads from prop strikes in crashes and makes one-handed battery connection easier. The kit includes the accessories needed for both analog and HD builds, plus pre-applied thread-locking screws for improved reliability right out of the box.

Special attention was also given to the TPU parts. They fit the frame perfectly, improve protection and durability, and give the build a clean, premium look. The result is a frame that is not only practical and strong, but also seriously satisfying to build.

Key Features

• Premium T700 carbon fiber construction
• Deadcat layout keeps props out of the camera view
• Compact structure designed to minimize resonance
• New CNC aluminum camera side plates for better camera protection
• Silicone dampers for DJI O4 Air Unit help eliminate jello in footage
• Integrated XT60 mount for better safety and convenience
• High-quality TPU accessories for cleaner integration and added protection
• Improved anti-slip battery pad with stronger adhesive
• New motor wire protection tubes
• Compatible with 19 mm / 20 mm FPV cameras
• Includes accessories for both analog and HD builds
• 12.9-grade screws with factory-applied thread locker
• High compatibility with a wide range of FPV electronics

What’s New in V2

• Noticeably lighter frame design
• New CNC side plates are lighter and better matched to the DJI O4 Air Unit
• New battery pad offers improved grip
• Added keystone support to reduce arm vibration
• Added washers for bottom screws
• Added motor wire protection tubes
• Top plate screws are now flush-mounted to help prevent battery damage in crashes
• New TPU arm guards are lighter and easier to remove
• All models include two TPU antenna mount options with or without GPS mounting
• Updated bottom and middle plate thickness to 2.5 mm
• Reworked arm-to-clamp plate connection for improved stress distribution
• Symmetrical XT60 cutout in the top plate for installation in either direction

Volador II VD6 Specifications

• Arm thickness: 6 mm
• Top plate thickness: 2.5 mm
• Middle plate thickness: 2.5 mm
• Bottom plate thickness: 2.5 mm
• Keystone thickness: 5 mm
• Side plate thickness: 2 mm
• CNC side plate thickness: 5 mm
• Propeller size: 6 to 6.1 inch
• Material: T700 carbon fiber plates
• FPV camera width: 19 mm / 20 mm
• Weight: 200 g (with TPU parts)
• Color: Black / Tropical Mix (optional)
• Overall dimensions: 259 mm × 109 mm
• Wheelbase: 260 mm
• Stack mounting: 20 × 20 mm / 30.5 × 30.5 mm (M3)
• VTX mounting: 20 × 20 mm / 25.5 × 25.5 mm (M2)
• Motor mounting: 16 × 16 mm (φ3 mm)

In the Box

• 1 × FlyFishRC Volador II VD6 frame kit
