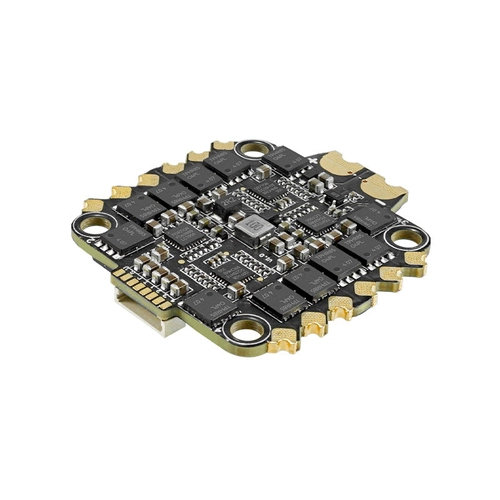

ESC SEQURE E70 G1 2-8S 70A BLHeli_32-bit 128K 4-in-1 (AM32)

ESC SEQURE E70 G1 2-8S 70A BLHeli_32-bit 128K 4-in-1 (AM32)

(1) High-performance STM32G071 processor, supporting BLHeli_32 | AM32 firmware, wide voltage input of 2-8S, continuous single-channel current of 70A, peak current up to 150A.
(2) Built-in galvanometer, supports telemetry feedback and updates motor speed, temperature, current, and other data in real-time.
(3) High-quality high-power MOSFET, ultra-efficient conversion, reduces losses and extends flight time.
(4) Multi-layer thick copper PCB design, enhances overcurrent handling capacity, efficient heat dissipation, and is resilient under load.
(5) Precise control of switch time intervals, accelerated ESC response, smooth control, and refined feel.
(6) PWM frequency supports 16KHz-128KHz, excellent circuit design solves the problem of desynchronization.
(7) Innovative design, inclined soldering surface, more aesthetic and safer motor wiring layout, reducing soldering difficulty.
(8) Mounting hole design with 30.5*30.5mm spacing, compact structure, adaptable to various frame types, easy to install.

Product Specifications:

Overall Dimensions:

Included in the package:

• SEQURE E70 G2 4-in-1 ESC × 1
• 30AWG 40mm reverse cable, dual plug SH1.0-8P × 1
• 30AWG 60mm single plug SH1.0-8P cable × 1
• 12AWG 100mm power cable (black/red) × 2
• XT60H-M black male plug × 1
• 35V 680UF fixed capacitor × 1
• M3*8mm shock-absorbing pad (black) × 5
