Dual-Band FlyFishRC UFL Antenna 5.8 GHz/2.4 GHz for DJI O3 - 145mm (Black)

FlyFishRC Dual-Band UFL Antenna 5.8 GHz/2.4 GHz for DJI O3 - 145mm (Black)

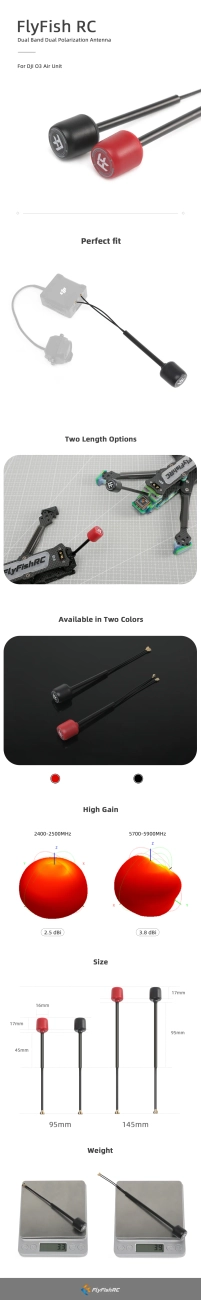

FlyFishRC offers an omnidirectional dual-polarization antenna for the DJI O3 Air Unit module. The integrated dual-band 2.4G and 5.8G technology ensures compatibility and performance comparable to the original device. The antenna features high interference resistance during long-distance transmission. Equipped with dual I-PEX connectors, it is compact and lightweight. Available in red and black colors and in various lengths to suit different aviation applications. The housing is made of impact-resistant polycarbonate, ensuring durability and a smooth surface.

Specification:

• Frequency Range: 2400-2500MHz / 5700-5900MHz
• Gain: 2.5dBi / 3.8dBi
• VSWR: ≤1.6
• Polarization: Linear
• Impedance: 50Ω
• Connector: IPEX*2
• Cable: RF1.13
• Weight:
  • 40mm (Stubby): 2.4g
  • 95mm: 3.3g
  • 145mm: 3.9g
• Dimensions: Φ16*17mm

Package Contents:

• 1x FlyFishRC O3 Dual-band Antenna
