See a comparison of the new DJI Zenmuse H30/T and H20/T/N cameras.
10 800,10 €
Hybrid construction
Wide-angle camera, 20 MP camera with hybrid optical zoom, thermal imaging sensor, laser rangefinder, IP44 protection, high operating temperature range, active EIS image stabilization, night mode - all this means that you can enter a whole new level in your work. Uncompromising results in drone image capture available at your fingertips.
Many sensors in one head
With a 20MP optical zoom, a thermal imaging sensor and a 12MP wide-angle camera with a diagonal field of view of 82.9°, whether from a distance or close up, in vivid colors or in a thermal image, you'll never miss a thing again. The integrated laser rangefinder (LRF) measures the distance to an object up to 1200 m away. Get a powerful tool packed with intelligent features to enhance the capabilities of DJI industrial platforms.
Intuitive User Interface
The new interface allows you to instantly switch between wide-angle, thermal and optical zoom cameras. See the big picture without missing the smallest details, no matter where or when your mission takes place.
The smart way to collect data
The camera allows for the use of intelligent modes that conveniently enable detailed data collection. The built-in AI system recognizes the object selected by the user, thanks to which it is possible to carry out routine checks, and the monitored object will always be in the center of the frame. In the wide-angle camera mode, it is possible to select an area and automatically take multiple 20-megapixel photos, which will be properly cataloged and assembled into a high-resolution preview of the whole.
Smart Tracking
Identify and track moving objects such as vehicles, people and boats in real time with the auto zoom function. If you want to obtain the geographical coordinates of a given object, just click on it on the screen and the advanced algorithm will take care of the rest
Monitor the temperature in real time
You can track the temperature of places or individual objects to eliminate potential threats thanks to the accurate reading of data from the air. The thermal imaging sensor allows you to obtain a temperature measurement at the selected point. It also allows you to obtain information about the lowest, highest and average temperature in the selected area.
Intelligent functions of the thermal imager
The device has a number of functions that will help you in your daily work. You can enable DJI Pilot to receive notifications when the temperature of the selected object exceeds a value you specify. Match the colors applied to the thermal image, or visualize selected temperature ranges. In addition, adjusting the Gain mode gives you the ability to change the range of measured temperatures. The High Gain mode covers a lower temperature range but is more sensitive to temperature differences, while the Low Gain mode covers a wider temperature range.
R-JPEG radiometric images
Images taken with the Zenmuse H20T are radiometric images in R-JPEG format. By importing them into the DJI Thermal Analysis Tool, you can measure temperature and adjust parameters such as Emissivity and Heat Reflectivity.

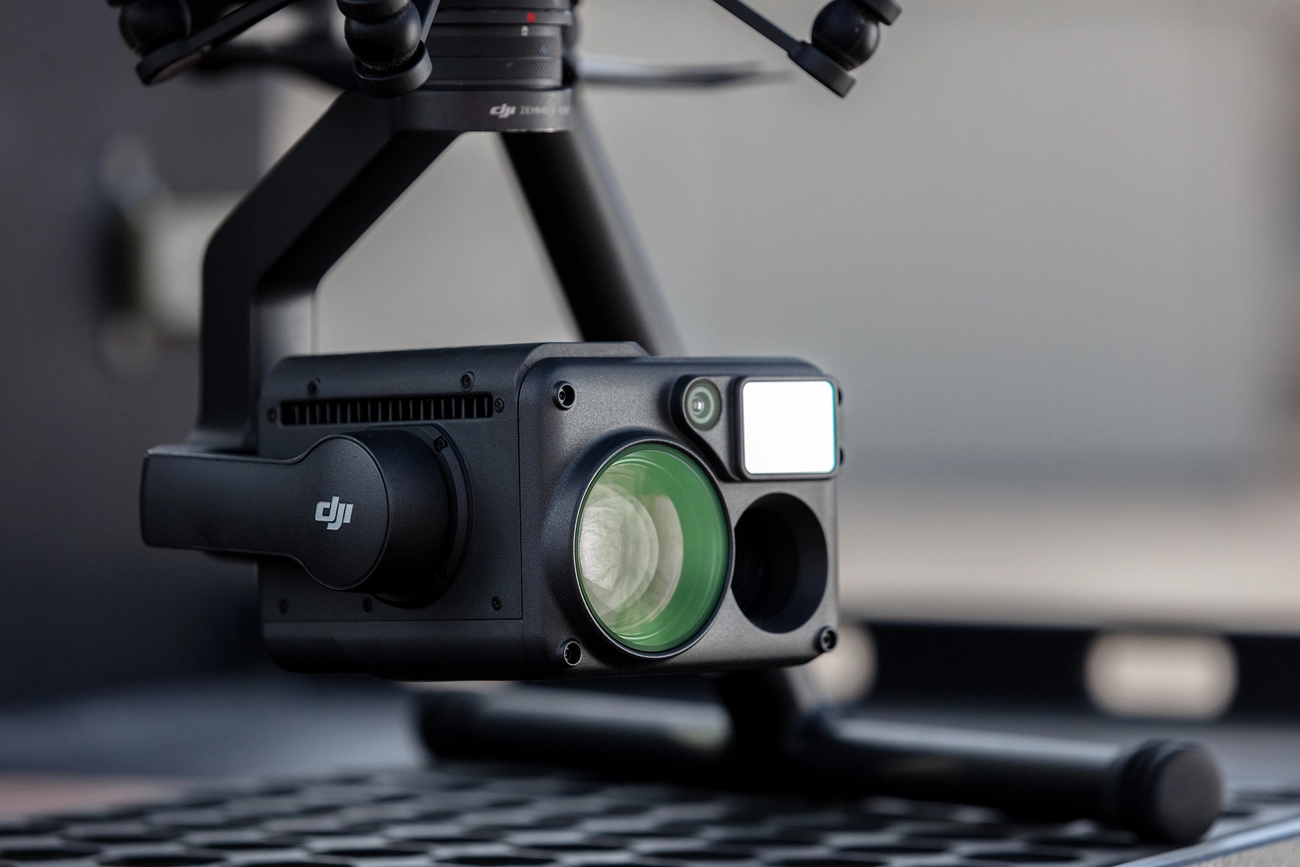

Specification DJI Zenmuse H20T Thermal Camera + DJI Care
Brand
DJI
Symbol
022649
Producer code
6958265100970
Status
New
