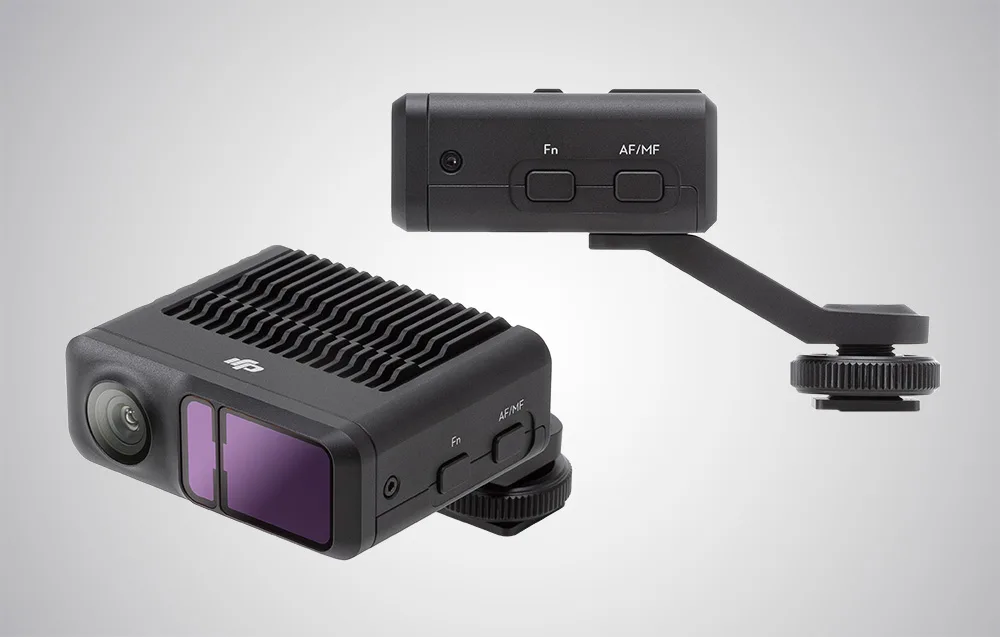

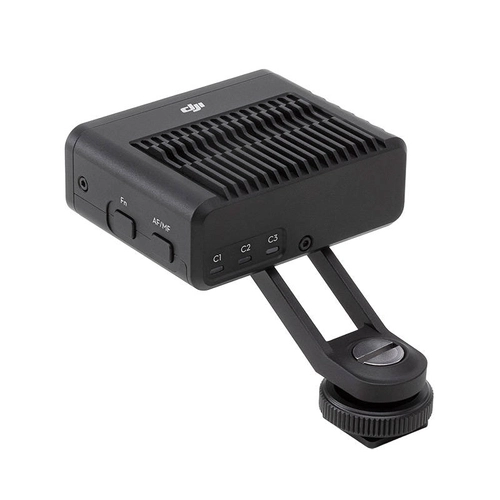

DJI LiDAR Range Finder for DJI RS 3 Pro
Make focusing easier even in low light conditions. LiDAR Range Finder is able to examine the environment and thus can display up to 43,200 distance points and has a detection range of up to 14 m. Moreover, its operation is not dependent on the surface texture of the object. It also has a built-in camera with a 30mm equivalent focal length and 70° field of view (FOV). This means that it will be perfect for a variety of scenarios. When you combine it with the new DJI RS Focus Motor (2022), you will be able to use autofocus on manual lenses. In addition, with the LiDAR rangefinder, the DJI RS 3 Pro supports the ActiveTrack Pro mode, which offers greater efficiency in identifying and tracking selected objects.
Included
- DJI LiDAR Range Finder x1
- MCC cable (USB-C, 30cm) x1
- LiDAR Control Cable (USB-C, 30cm) x1
| Producer | DJI |
|---|---|
| Name | DJI LiDAR Range Finder |
| Ports available | Cold shoe, 1/4"-20 mounting hole, USB-C, USB-C Power/CVBS/CAN Data |
| Resolution (image sensor) | 448 x 298 on the touch screen |
| Field of View (FOV) | 57.4° (H), 44.6° (V), 70.1° (Diagonal) |
| Focal length equivalent | 30mm |
| Resolution (ToF sensor) | 240 x 180 |
| ToF sensor detection range | 0.5-14 m |
| Distance error (ToF sensor) | 1% |
| machine learning | It can recognize up to 5 objects at once and choose one of them to track it. |
| Identification range | up to 9 m |
| Power consumption | 6.8W |
| input voltage | 7-16V |
| Working temperature | -20-45°C |
| Dimensions | 66 x 57 x 24mm (L x W x H) |
| Libra | Approx. 130g |
| Mounting plate height | 30mm |
| Lenses that do not require calibration | DZOFILM Vespid Cyber 35 / 50 / 75 mm |
| Compatibility | DJI RS 3 Pro |
Specification DJI LiDAR Range Finder (RS 3 Pro)
Brand
DJI
Symbol
CP.RN.00000288.01
Producer code
6941565935533
Warranty
24 months
