Camera infra V2

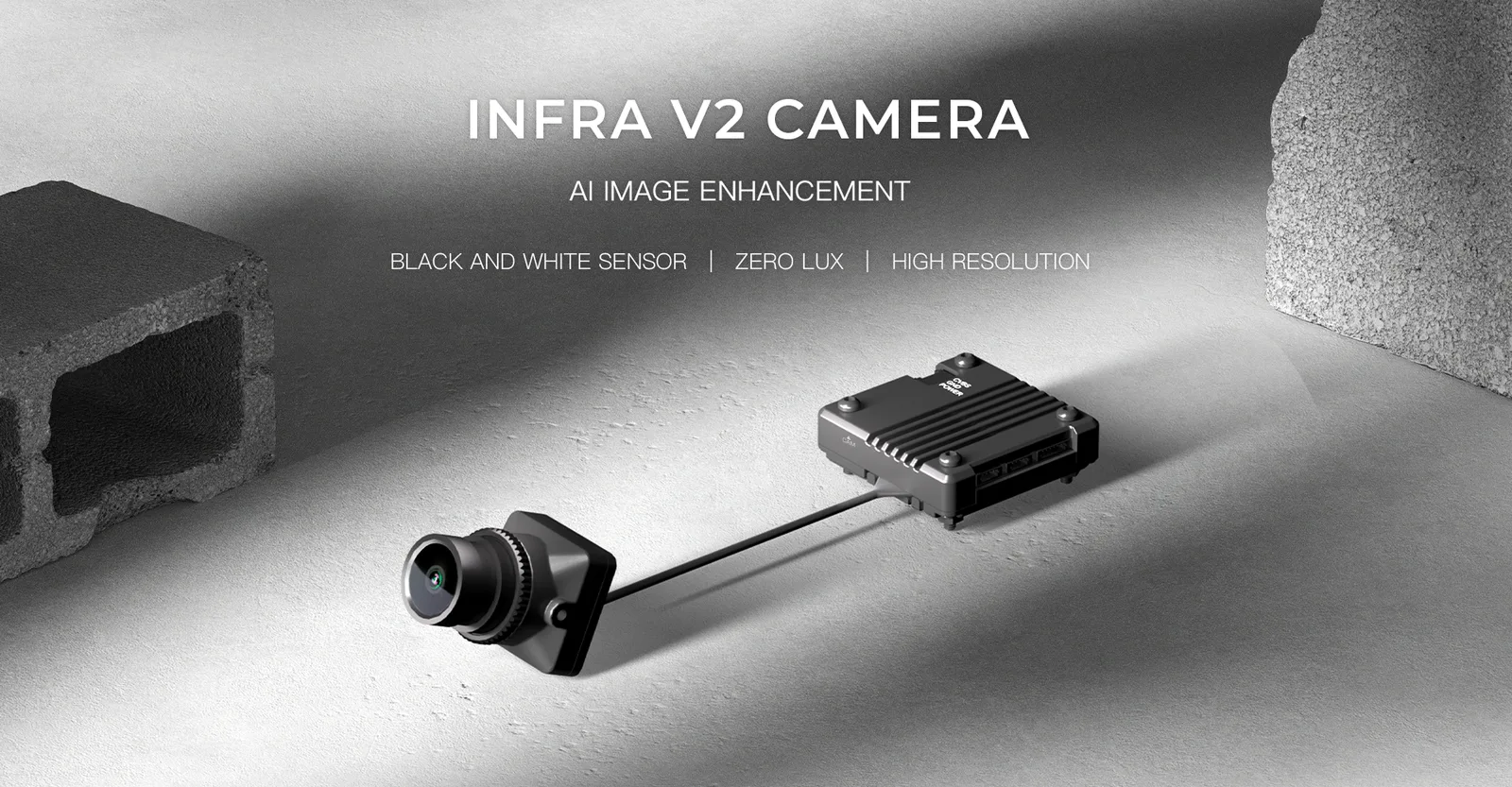

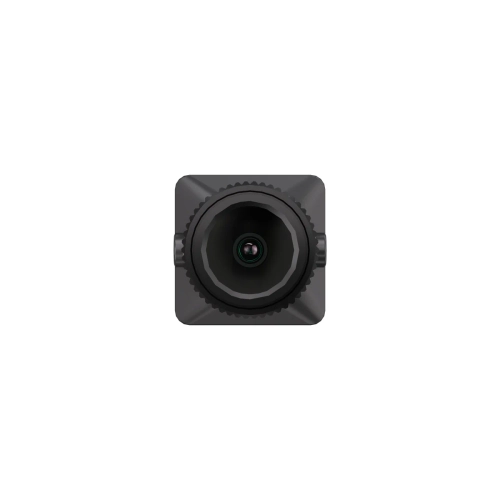

CADDXFPV Infra V2 Analog Camera

The CADDXFPV Infra V2 is a next-generation analog FPV camera built for pilots who want better visibility after dark and cleaner image detail in challenging lighting. Thanks to the upgraded AI V2 image enhancement system, this hobby-grade camera delivers noticeably improved night vision performance, higher clarity, and a more compact design that is easier to fit into modern FPV builds.

Key Features

• Upgraded AI V2 image enhancement for clearer low-light performance
• High-resolution 1500 TVL analog image output
• Compact and lighter design for easier installation
• Black-and-white sensor optimized for improved night visibility
• Native 4:3 image format for a full, uncropped FPV view
• WDR support for better detail in dark and backlit scenes
• 131.6° ultra-wide FOV for enhanced situational awareness
• Metal housing for durability and improved heat dissipation

Why Choose the Infra V2?

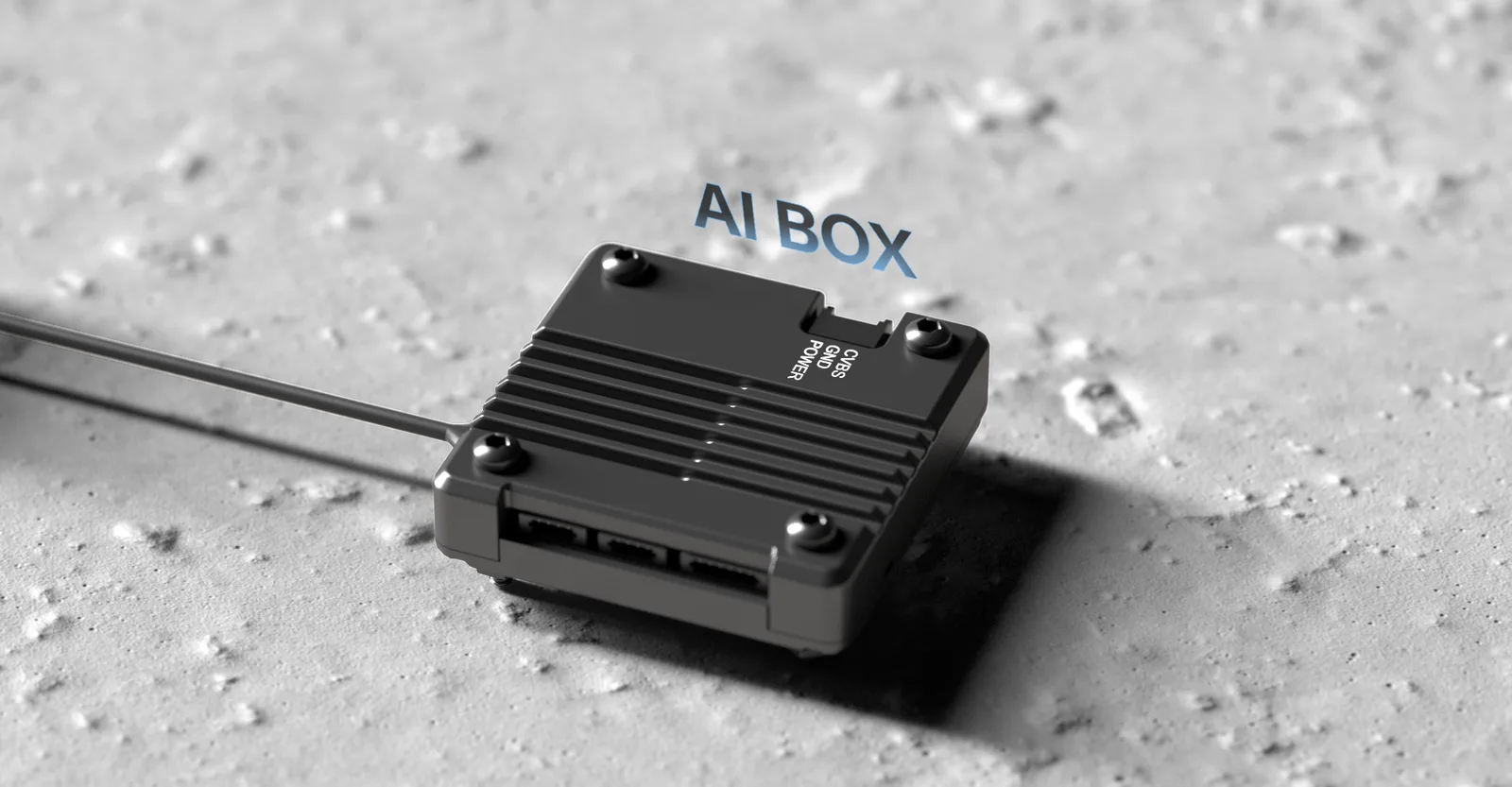

Powered by a new AI-based night vision enhancement algorithm, the Infra V2 boosts image clarity by over 30% in low-light conditions. The improved AI processing system also allows for a more compact processor module, making the entire unit thinner, lighter, and even more practical for FPV drones and other hobby applications.

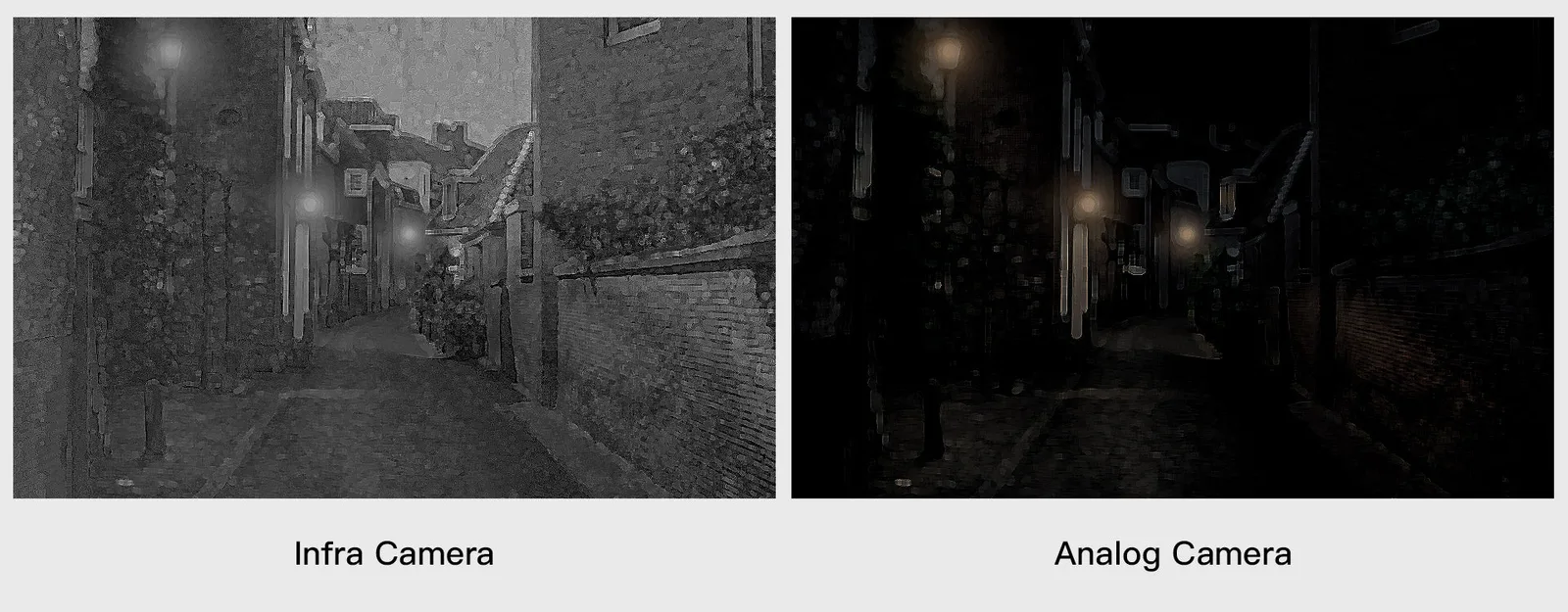

The camera uses multi-frame AI algorithms to expand dynamic range during night flying, helping suppress overexposed highlights and underexposed shadows in backlit scenes while preserving critical image detail. Compared with traditional color cameras, its sensitivity is significantly improved, making object shapes and contours easier to recognize when visibility gets tough.

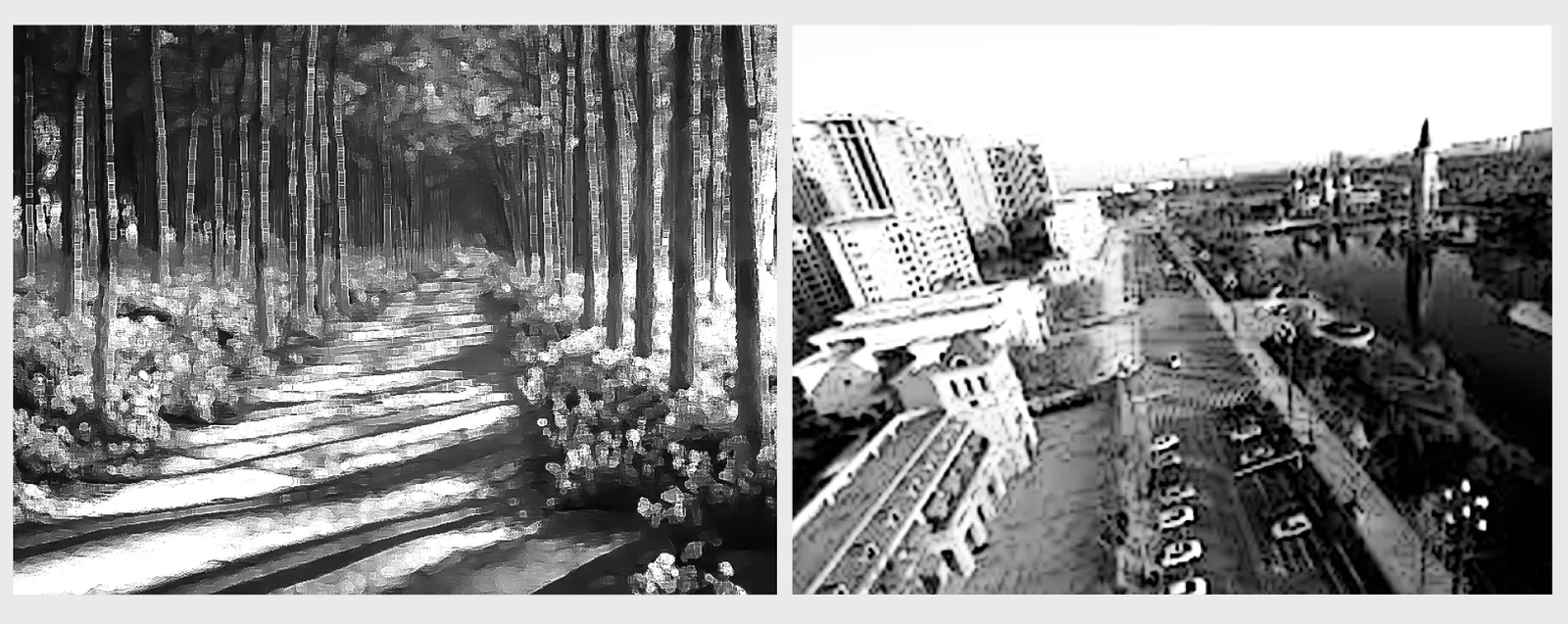

The image sensor outputs a native 4:3 aspect ratio, giving you a full, uncropped view with sharp pixel detail. For FPV pilots, that means a more immersive flying experience and better visual precision when every split-second decision matters.

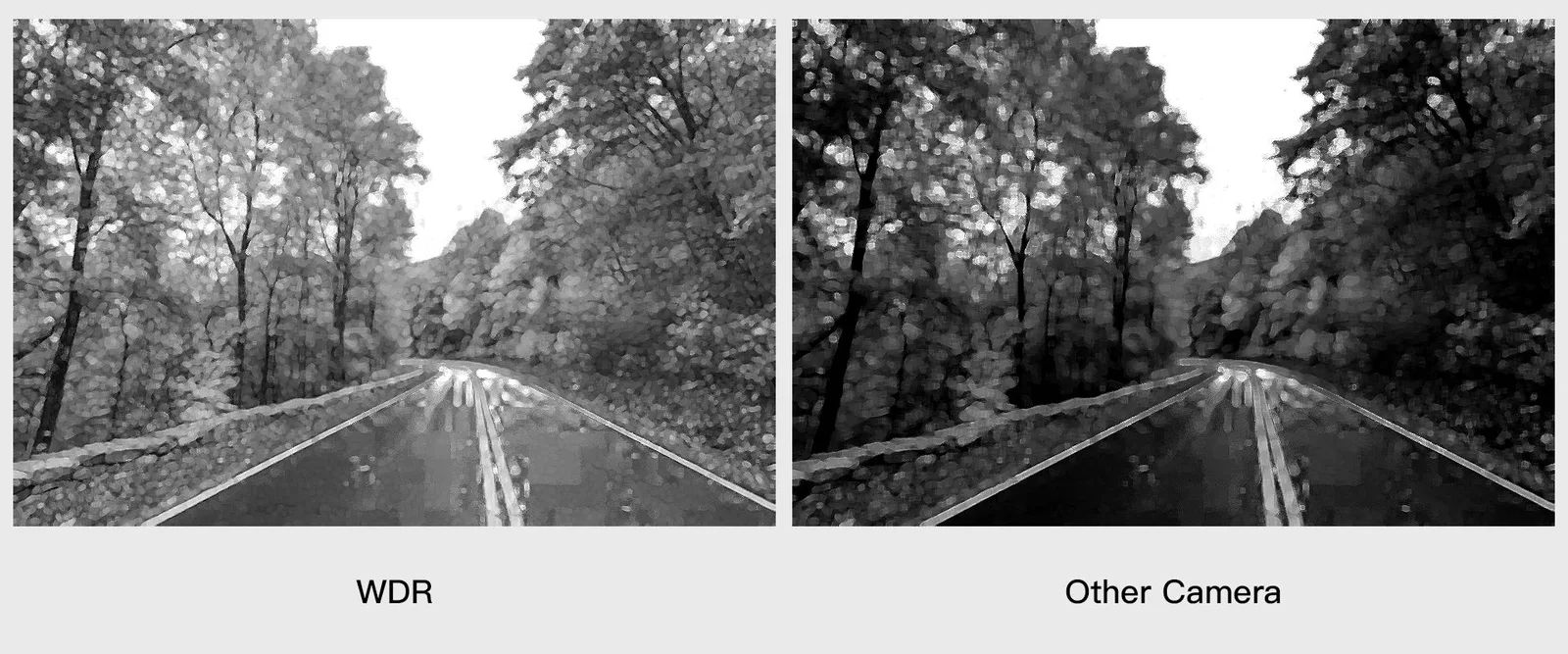

With WDR support, the Infra V2 is ready to capture more usable detail in darker environments, helping it meet the demands of pilots who fly in low-light conditions and want a more readable image.

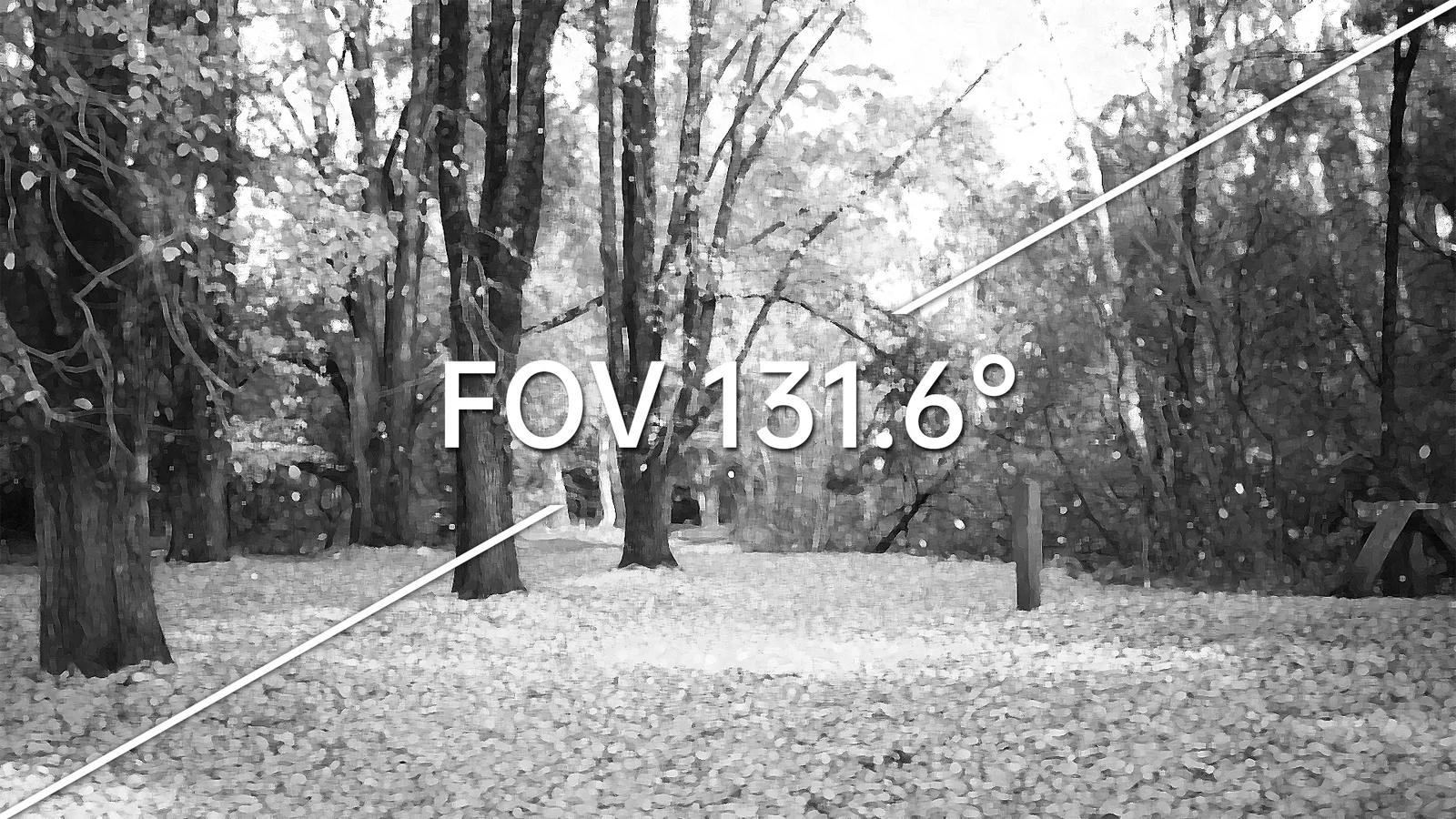

Designed with an ultra-wide 131.6° lens, the Infra V2 gives FPV pilots a broad real-time field of view that improves awareness, enhances image clarity, and helps capture a more immersive, realistic visual experience on every flight.

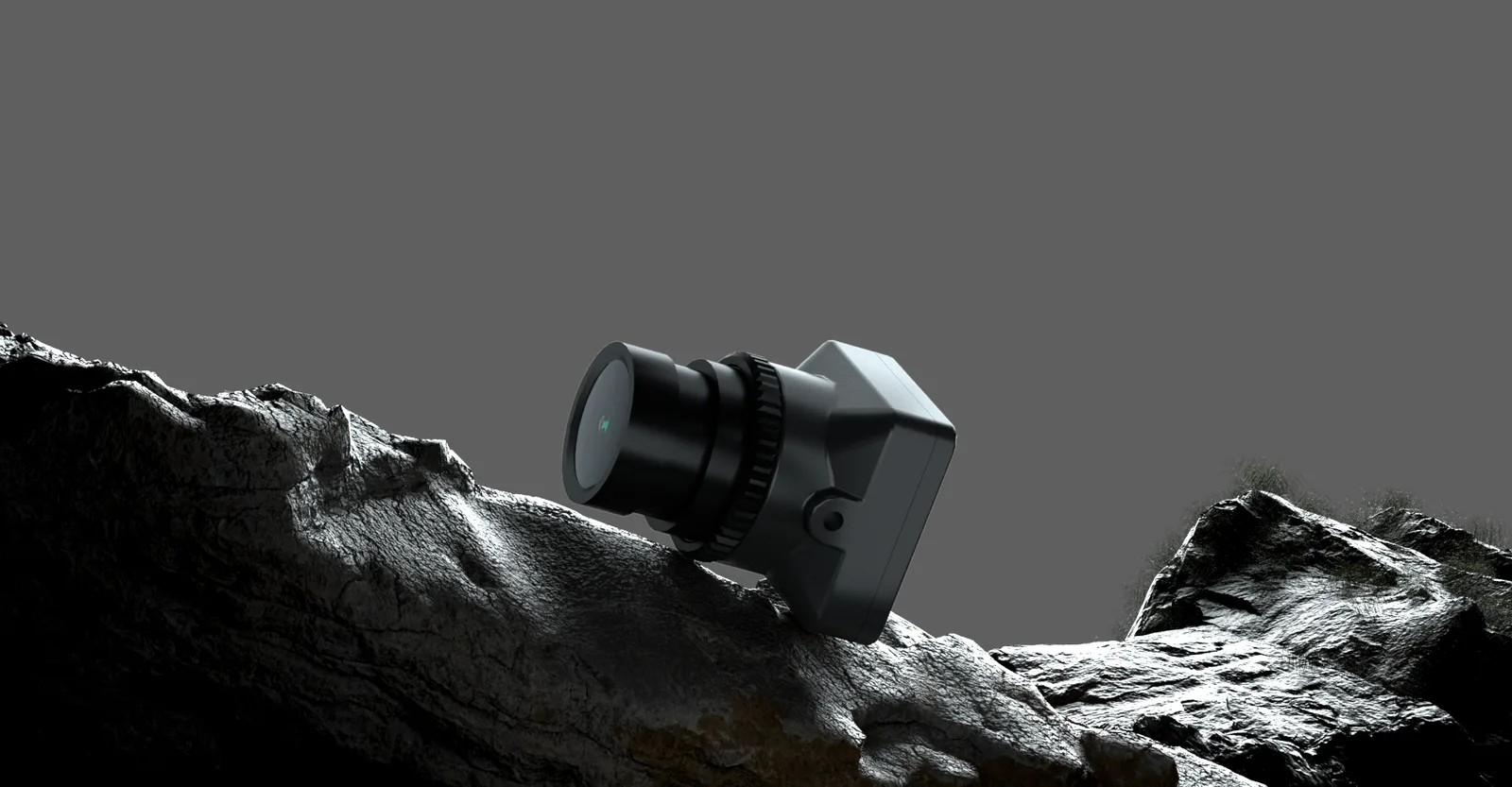

The lightweight metal housing improves durability and heat dissipation. A new optical design reduces lens size while maintaining the same light intake as the Infra V1, making installation easier without sacrificing performance.

Specification

• Model: Caddx Infra V2
• Image Sensor: 1/1.8 inch
• Pixel Size: 8 μm
• Horizontal Resolution: 1500 TVL
• Focal Length: 2.8 mm
• Aperture: F1.0
• Field of View (FOV): 131.6° (D)
• Output Format: CVBS PAL
• Frame Rate: 50 fps
• Image Type: Black and white
• Video Interface: 1× PAL
• Input Voltage: 9–24 V
• Typical Power Consumption: <1.2 W
• Aspect Ratio: 4:3
• Operating Temperature: -20°C to 60°C

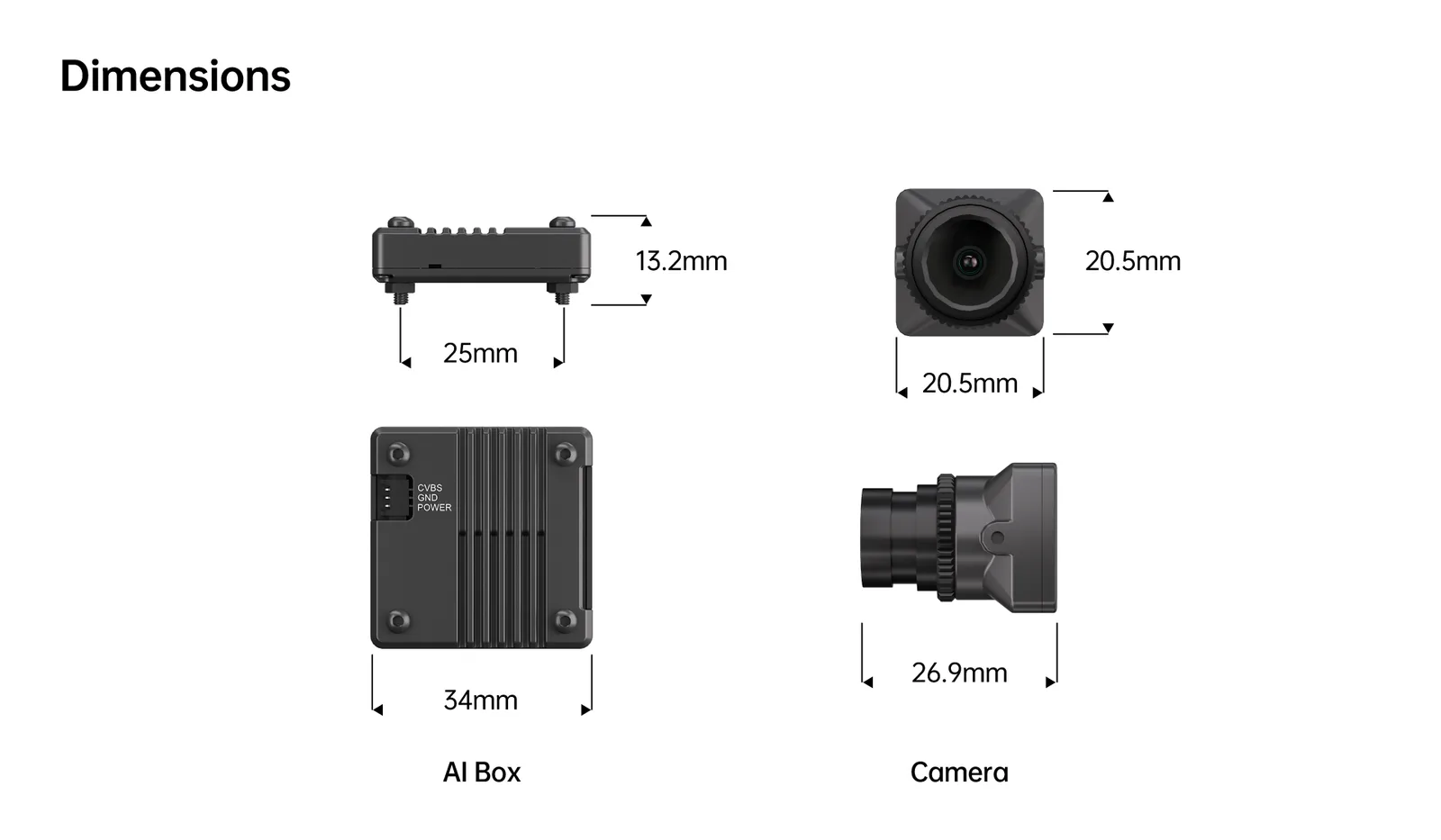

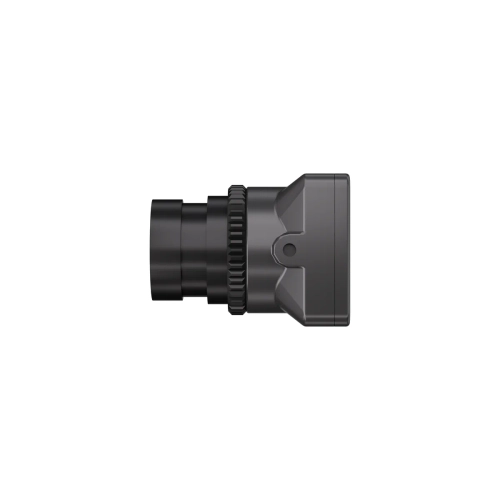

• Camera Dimensions: 20.5 × 20.5 × 26.9 mm

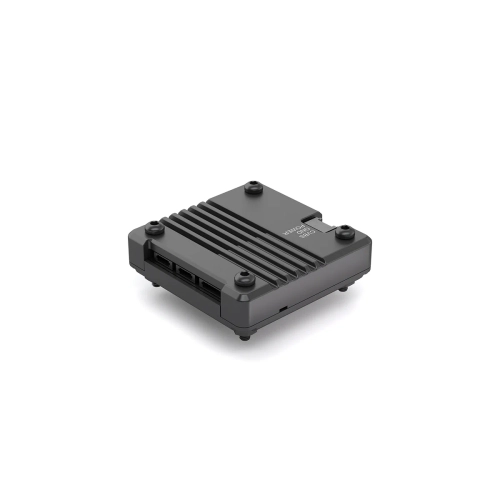

• AI Box Dimensions: 34 × 34 × 13.2 mm
