CADDXFPV Ratel Pro analog camera

CADDXFPV Ratel Pro analog camera

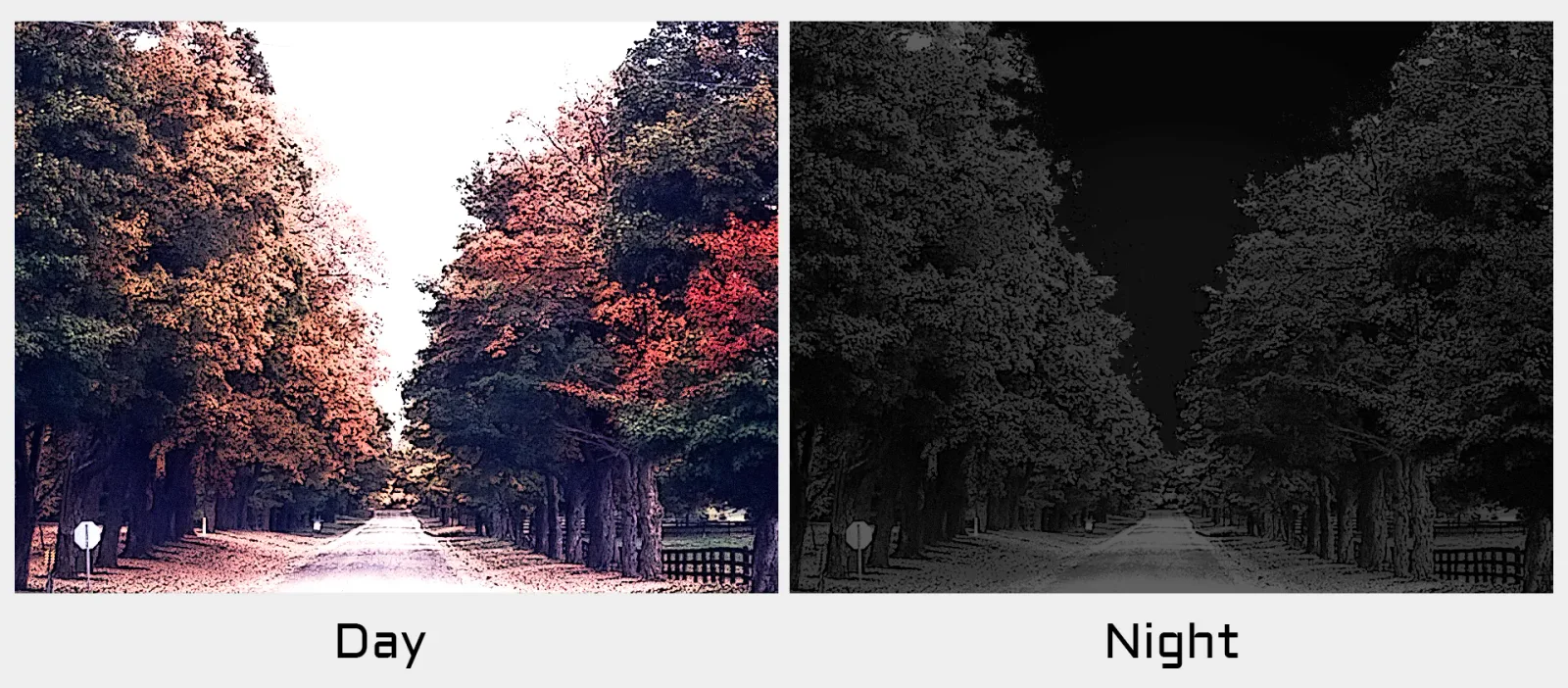

Equipped with black light technology, the Ratel Pro camera displays images in true color during the day and displays black and white images at night. Providing optimal image quality in a variety of lighting conditions.

Ratel Pro delivers excellent image clarity during the day, setting new visual standards in the analog camera domain.

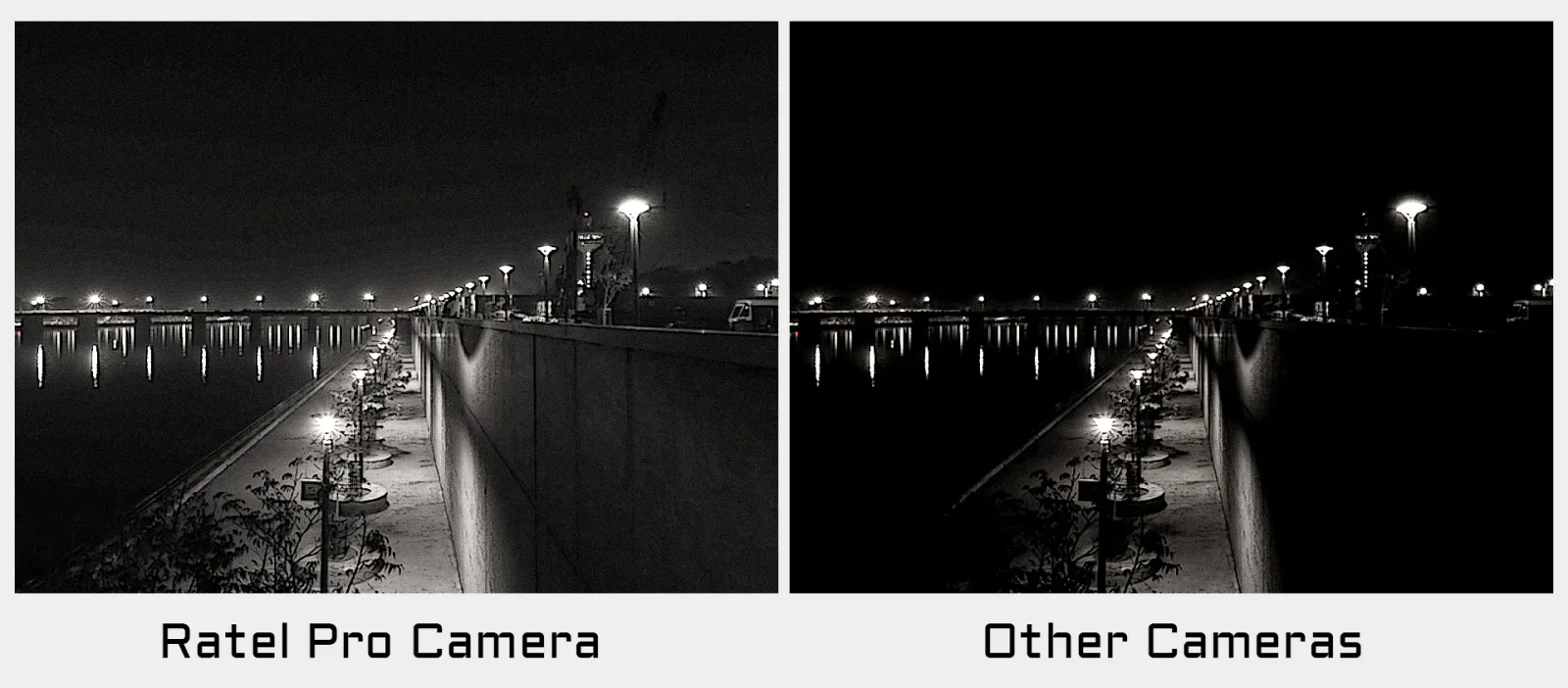

Thanks to the large 1/1.8 inch BSI sensor and improved algorithm, the illumination is twice as bright compared to regular analog cameras. Even in low light conditions, Ratel Pro provides excellent night vision, providing clear and reliable images for uncompromised visibility.

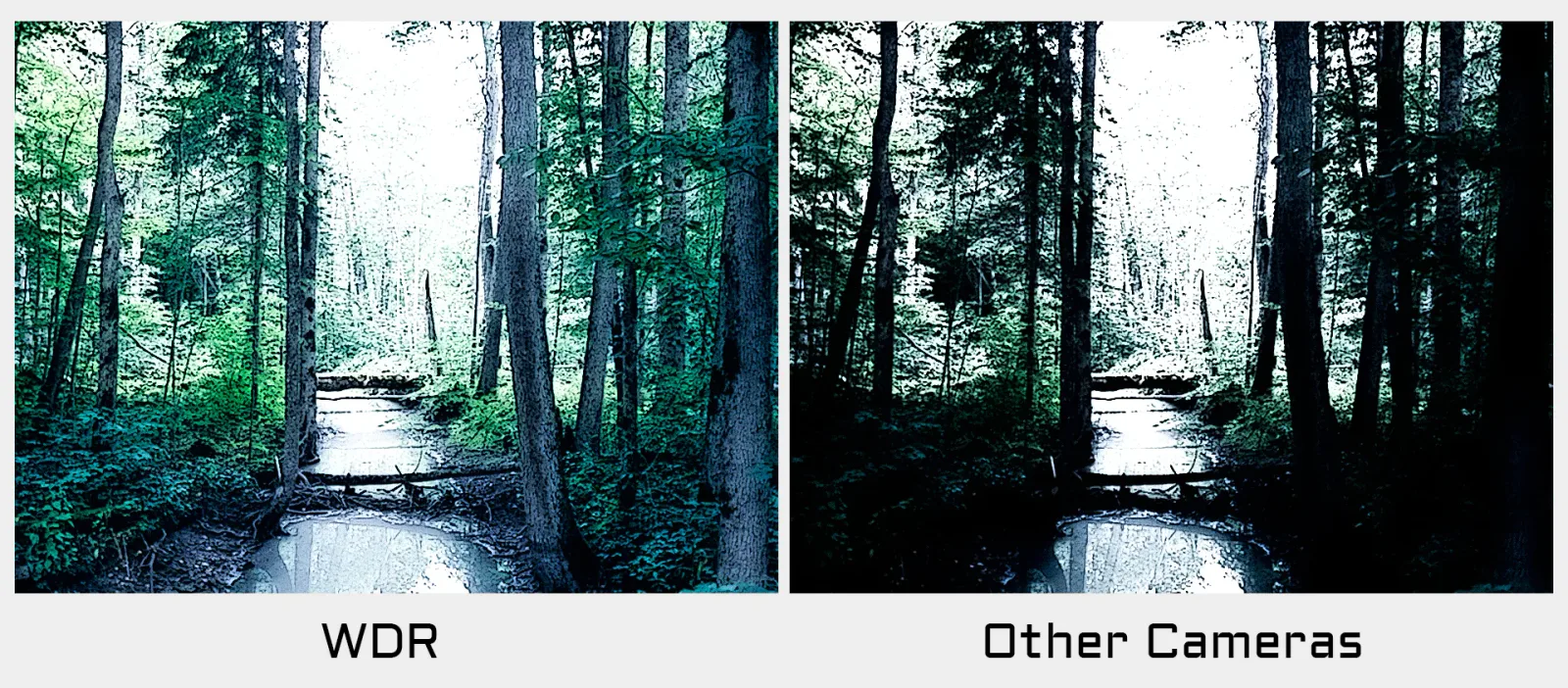

It supports WDR, fully satisfying your pursuit of detailed photography in both bright and dark environments.

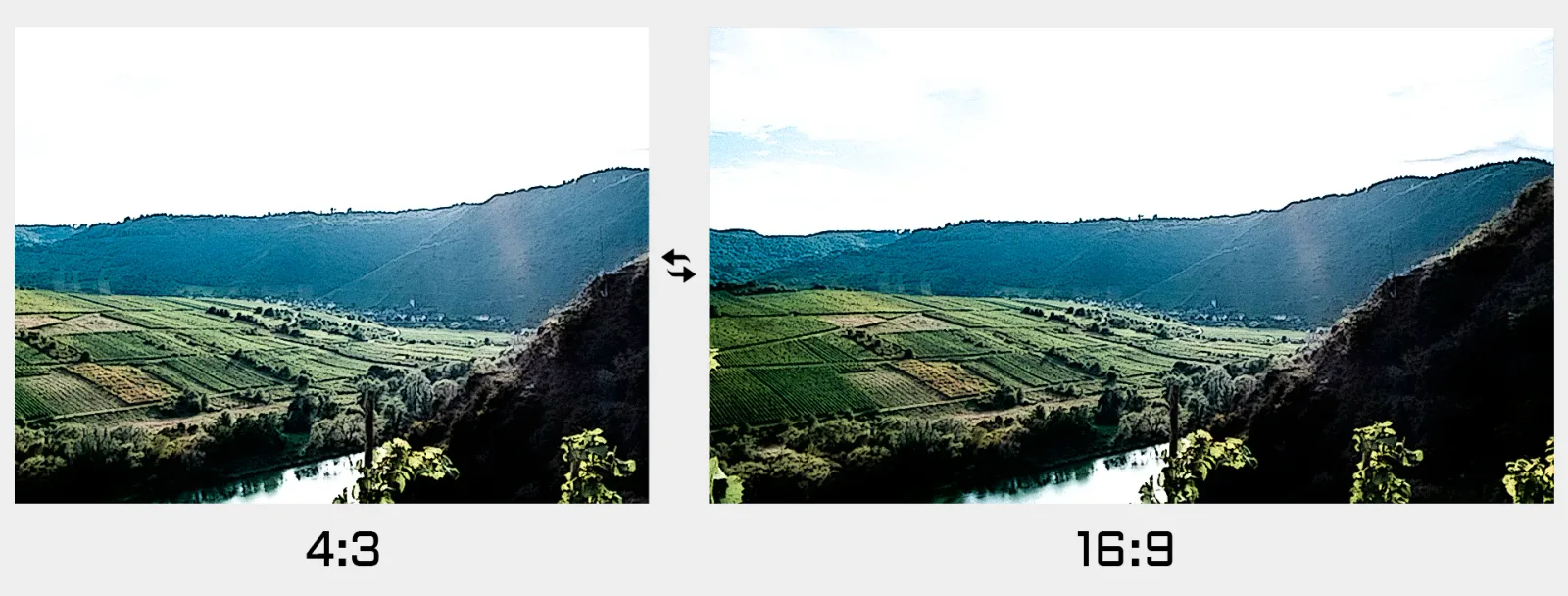

Switch effortlessly between 16:9 and 4:3 screen aspect ratios with Ratel Pro, giving you the flexibility to accommodate a variety of preferences and scenarios.

Designed with a 125 ° field of view, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of scenes.

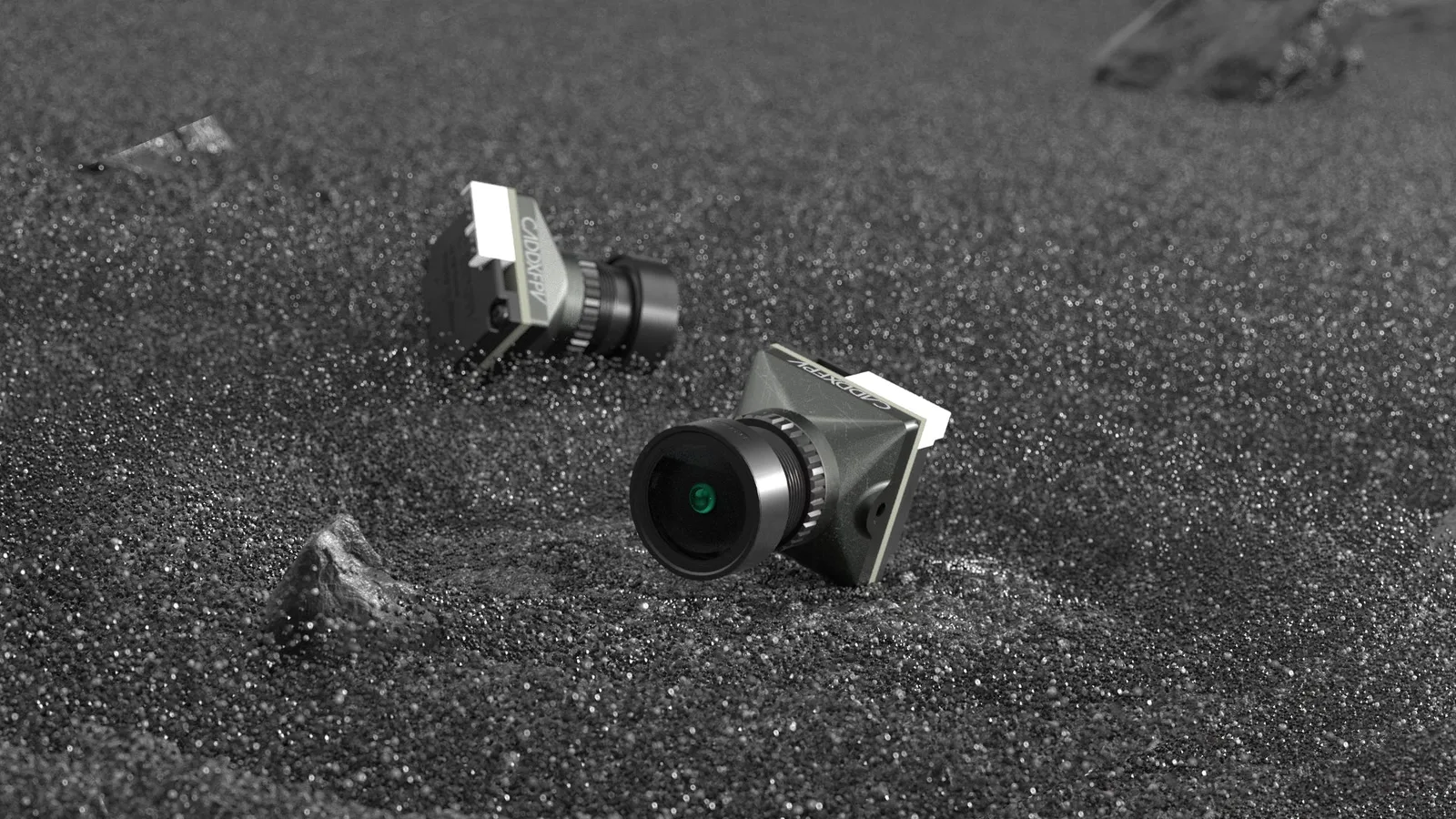

Lightweight design with metal housing improves durability and heat dissipation.

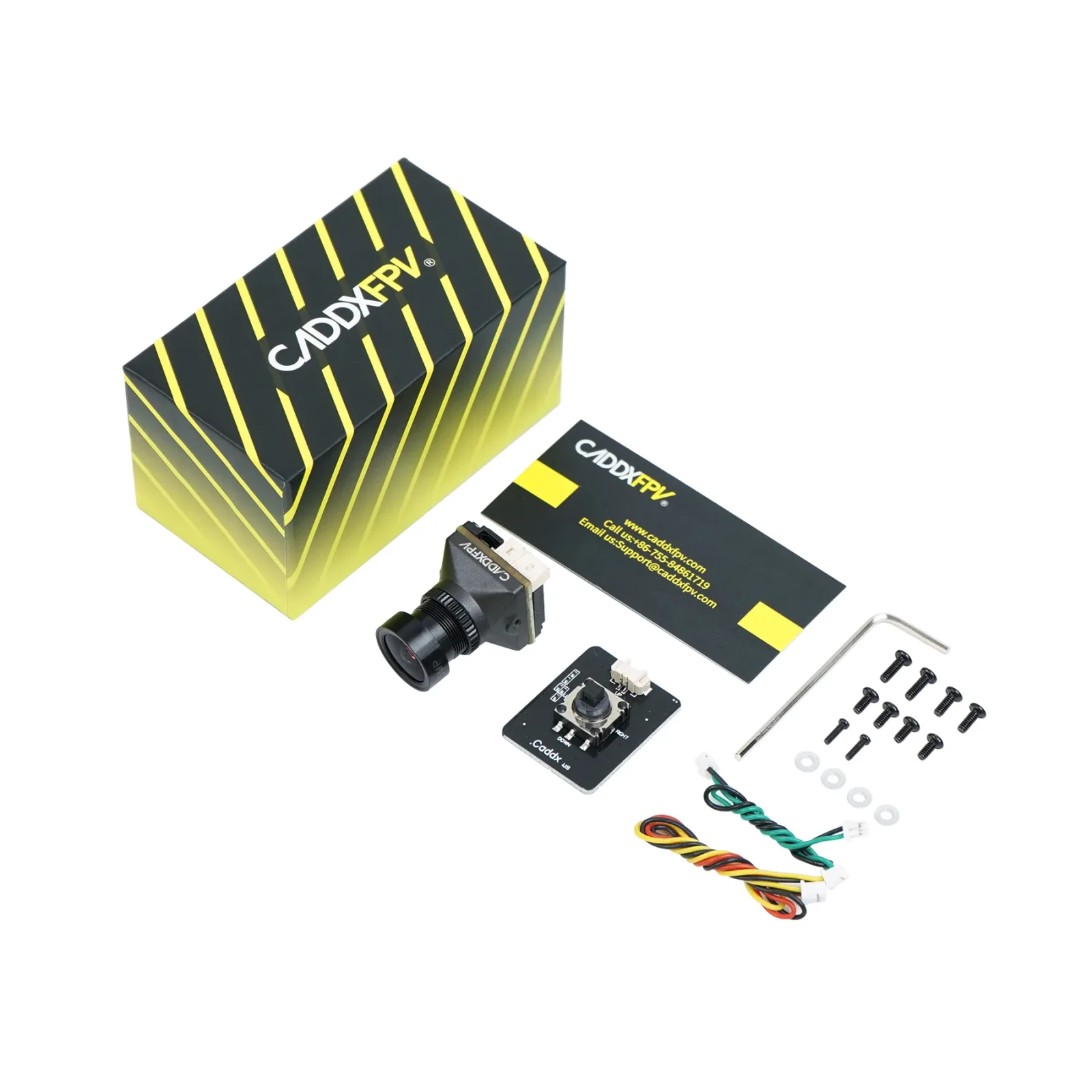

Included:

Specification:

Model: Ratel PRO

Image sensor: 1/1.8 inch

Horizontal resolution: 1500TVL

TV system: NTSC and PAL (interchangeable)

Image: 16:9 and 4:3 (interchangeable)

WDR: Super WDR (HDR)

Min. Illumination: 0.00001 lux

Lens: 5 MPx

Black colour

Synchronization: Internal

Electronic shutter: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000

S/N Ratio: >60dB (AGC Off)

Video output: CVBS

OSD Instruction: Support

DNR: 3-DNR

Field of view: 125 °

Day /Night: Auto/Color/Black & White/EXT

Dimensions: 19mm*19mm

Wide power input: 4.5 –27V

Working temperature : -20 ℃ ~ +60 ℃

Operating humidity : 20% ~ 80%

Weight: 9.5 gram
