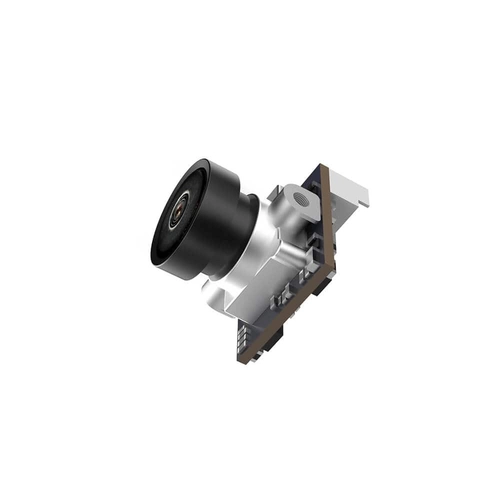

CADDX Ant 4:3 analog camera (silver)

CADDX Ant 4:3 analog camera (silver)

Features:

• Weight: 2g
• Resolution: 1200 TVL
• Power supply: DC 5-25V
• Global WDR
• OSD menu
• Viewing angle: 165°'

Specifications:

• Model: Caddx Ant
• Image sensor: 1/3" CMOS
• Horizontal resolution: 1200 TVL
• TV system: NTSC and PAL (switchable)
• Menu: supported
• Image aspect ratio: 16:9 and 4:3
• Synchronization: Internal
• Electronic shutter: PAL: 1/50-100,000s, NTSC: 1/60-100,000s
• Signal-to-noise ratio: > 52dB (AGC OFF)
• Video output: CVBS
• Lens: 1.8mm
• Minimum illumination: 0,001Lux@F1.2
• Automatic gain control: Yes
• Black compensation: Yes
• WDR: Global WDR
• Noise Reduction: 3D DNR
• Dimensions: 14x14 mm (with bracket 19x19 mm)
• Power supply range: DC 5-25V
• Operating temperature: -20°C to +60°C
• Operating humidity: 20% - 80%
• Weight: 2 g (MAX)

Package contents:

• Camera x1
• 19mm housing x1
• Screws x4
• 3-pin silicone cable x1
• Warranty card x1
