C02 FPV micro camera

16,20 €
C02 FPV micro camera

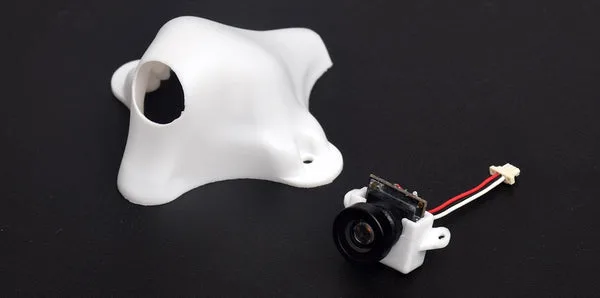

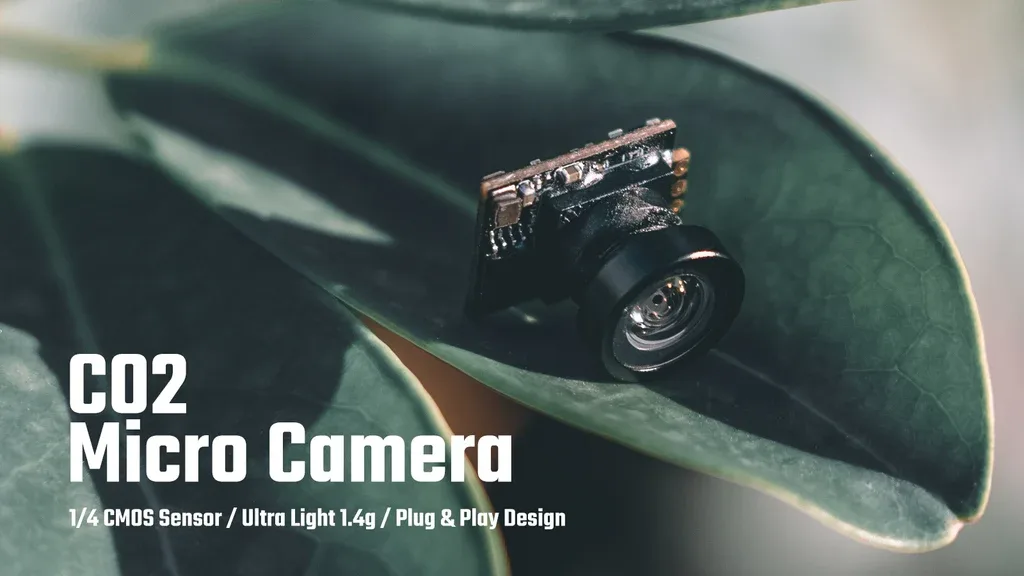

C02 Micro Camera is a light camera adapted in weight to the "whoop" micro drones Meteor65, Beta65S, Beta85pro2, HX100SE. Customized 1/4 inch CMOS sensor, 2.1mm lens for 1200 TVL resolution and excellent latency while minimizing weight to Gram. Packed with a micro-visor, it protects the camera well in the event of a serious crash.

Plug-N-Play connector

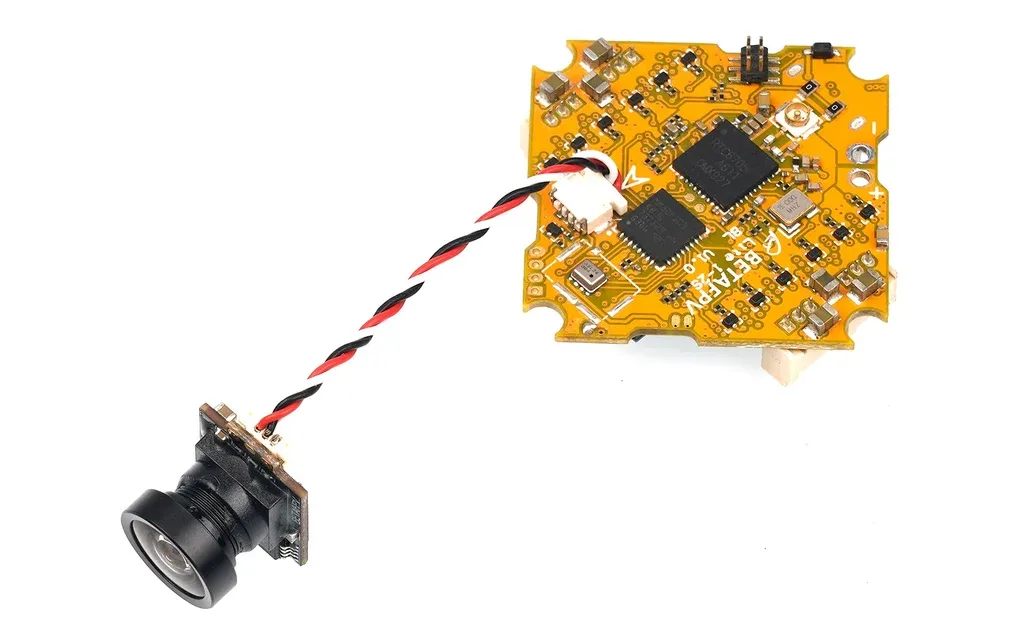

The C02 camera has a JST-0.8 connector, special plug-and-play design, facilitates installation without soldering. Suitable for Cetus Series drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX and NBD BeeBrain flight controllers.
Characteristics:
- Miniature and light design, Weight only 1.4 gram
- 1200TVL resolution and 1/4" CMOS sensor ensure high quality and clear image
- The Global WDR camera with a 16:9 aspect ratio provides clear, dynamic images even in low light
- 2.1mm lens, 160° field of view beyond wide angle, allowing you to record wider and more beautiful scenes
Specification
- Item: C02 camera
- Image sensor: 1/4 inch CMOS sensor
- Horizontal: 1200TVL with Global WDR
- Signal system: NTSC
- Lens: 2.1mm (M8) FOV 160°
- Signal/noise ratio: >50 dB
- Electronic shutter speed: automatic
- Automatic Gain Control (AGC): Auto
- Min. Illumination: 0.01 lux at 1.2 F
- D-WDR: automatic
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 110mA at 5V / 120mA at 3.3V
- Housing material: ABS

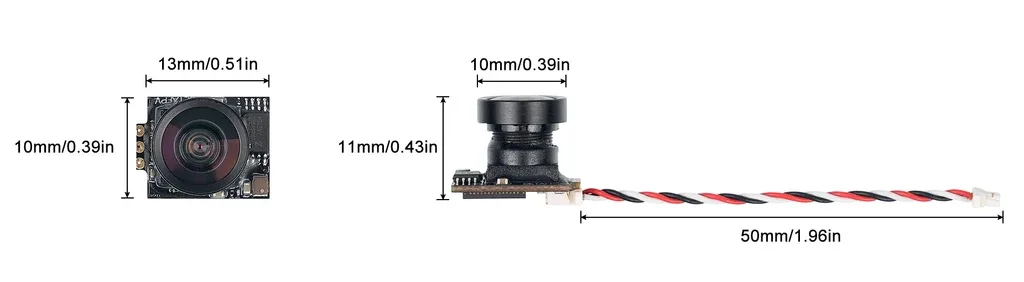

- Dimension: 13*11mm
- Net weight: 1.4g

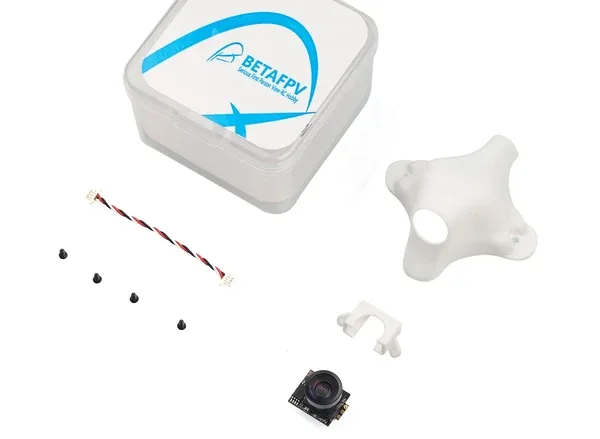

Included:
- 1 * C02 FPV Micro Camera
- 1 * Injection molded visor
- 1*1/4'' Camera Mounting Hardware
