BT3.0 BetaFPV male connectors (5 pcs)

BT3.0 BetaFPV male connectors (5 pcs)

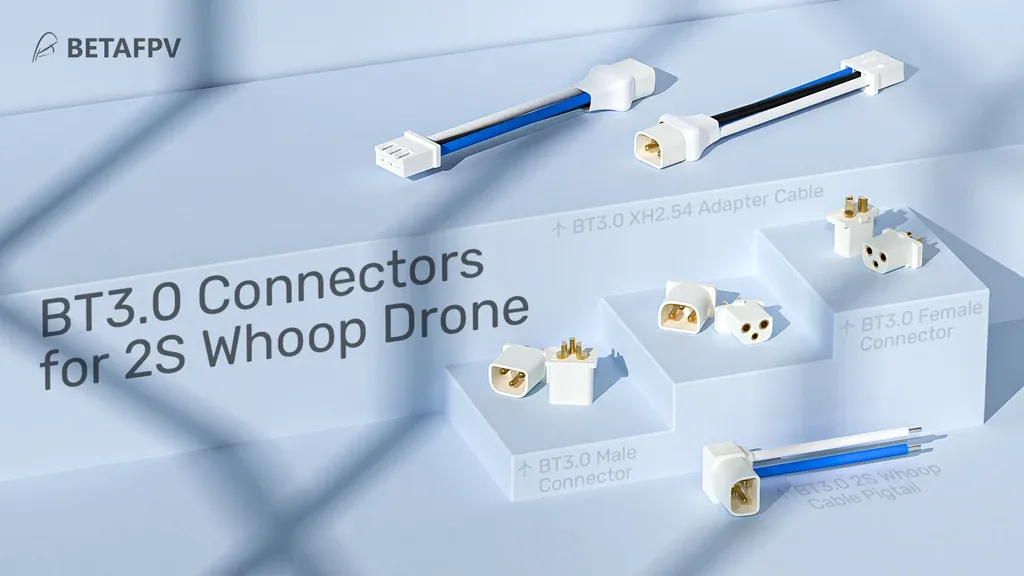

BT3.0 connectors are designed for a 2S battery with 3 metal pins, which allows power balancing during charging without an additional balancer connector. Simplifies installation of 2S batteries. The connector weighs only 1.28 grams, making it smaller and extremely light. For 2S quad pilots, this also represents a more convenient 2S battery choice, as well as a better option for minus a few quad grams.

Characteristics:

• An innovative battery option for 2S Whoop drones, designed specifically for Whoop 2S drones.
• BT3.0 connectors offer unparalleled convenience by combining the functions of a charging and discharging power cord in one connector, eliminating the need to purchase an expensive balance charger.
• BT3.0 connectors are smaller and lighter, with a total Weight of only 1.28 gram for both male and female connectors, compared to regular connectors.
• BT3.0 connectors feature a rated discharge current of 12A and an instantaneous current of up to 20A, meeting the discharge requirements of 2S batteries.

Technical data

• BT3.0 male connector: Gram/pcs, 11.2*9.2*6.1mm
• BT3.0 XH2.54 adapter cable: Gram/pcs, 35mm
• BT3.0 2S Whoop Cable Pigtail: Gram/pcs, 30mm
• Insertion force: 3-22N
• White color
• Metal material: gold plated copper
• Plastic: PA9T
• Plug life: 1000 times
• Rated current: 12A
• Instantaneous current: 20A

Below is the male and female connector diagram.

BT3.0 2S Whoop Cable Pigtail

This power cable with BT3.0 connector is specially designed for Whoop 2S drone. The male connector and power cord are angled at 90 degrees for easy connection and disconnection. The insertion and removal force range is 3-22 N, making daily use easier. Fits for 2S FC and 2S quadcopter.

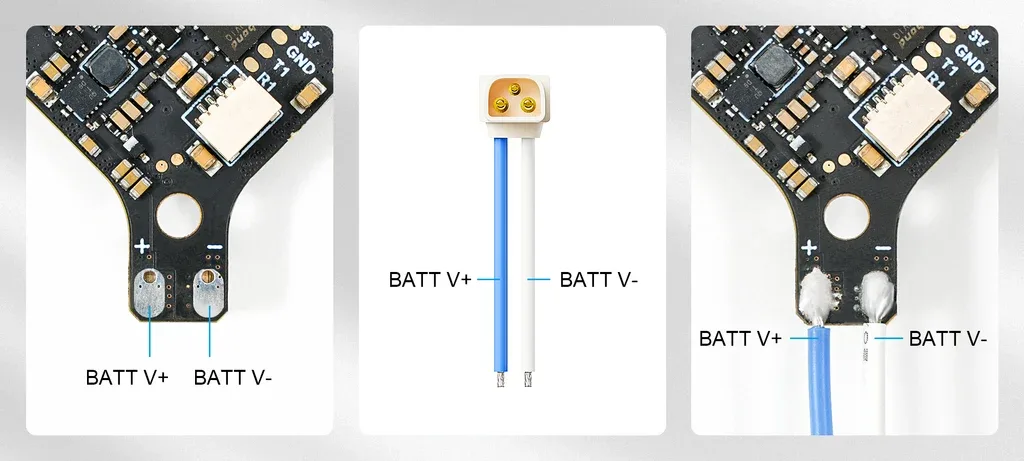

When re-soldering the board, pay attention to the connection method. BT3.0 cable pigtail consists of blue and white wire. The blue wire is the positive pole (+) and the white wire is the negative pole (-).

Included

• BT3.0 2S Whoop Cable Pigtail (5pcs)
• 5 * BT3.0 2S Whoop Cable Pigtail
• Static bag 1*70*100
