BT 3.0 BetaFPV connectors (10* female)
![BT 3.0 BetaFPV connectors (10* female)](https://static1.megadron.pl/hpeciai/1d2ecf1e00dba228078251bd4a1fd506/pol_il_29856-29856.webp)
BT 3.0 BetaFPV connectors (10* female)

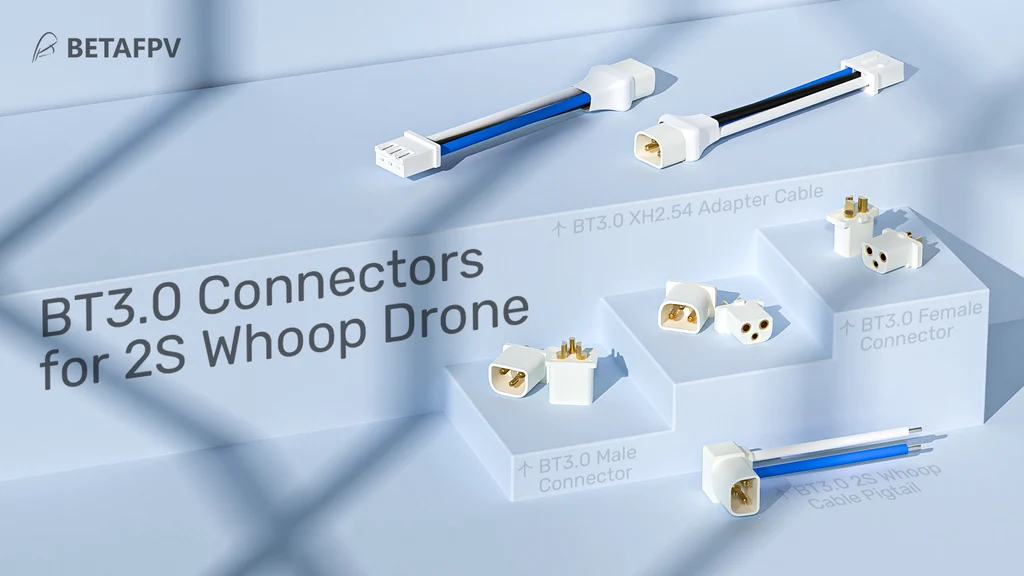

BT3.0 connectors are designed for a 2S battery, with 3 metal pins to balance power during charging without an additional balancer connector. Simplifies the installation of the 2S battery and weighs just 1.28 grams, making it smaller and super-lightweight than ordinary connectors on the market. For 2S quad pilots, it is also a more convenient choice for a 2S battery, and a better option to reduce the weight of the quad by a few grams.
Specification
- BT3.0 male + female connector: 1.28 g/pc.
- Pressing force: 3-22N
- Color: White
- Metal Material: Gilded copper
- Plastic material: PA9T
- Plug life: 1000 times
- Rated current: 12A
- Instantaneous current: 20A
Below is a diagram of the male connectors and female .
![](https://cdn.shopifycdn.net/s/files/1/1778/6615/files/b73e49bb92147555b31709204931b254_da260b56-d0c4-4b60-a2cd-b183964e146a_600x600.jpg?v=1689842426)
BT connectors3.0
BT3.0 connectors are 3PIN terminal, two metal pins with a diameter of 1.3 mm are used to discharge the battery, and two metal pins with a diameter of 1.3 mm and a metal pin with a diameter of 1.0 mm are combined into a 3PIN connector as a balanced charger to charge the battery. BT3.0 connectors have designations polarity on their terminals welding, but do not support reverse calls. During welding wires should be noted for positive and negative directions. Design connectors prevents reverse connections, so do not forcefully connect it in the opposite direction to avoid the risk of a short circuit.
Included
- 10 * BT female connector3.0
- 1 * 70*100 Static bag
