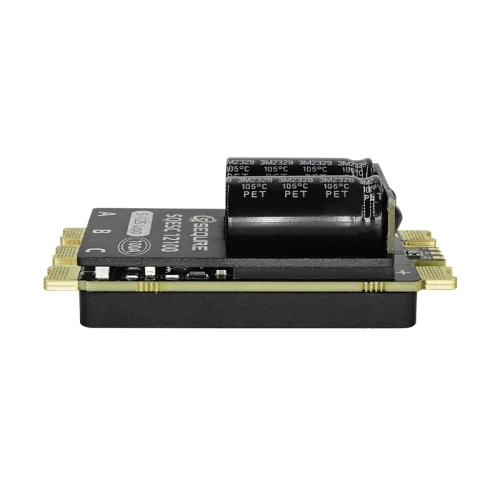

Brushless Electric Speed Controller 5-12S 100A Power Supply SEQURE 12100 (AM32)

Brushless Electric Speed Controller 5-12S Power Supply 100A SEQURE 12100 (AM32)

(1) Features a high-performance 32-bit STM32G071 processor with an operating frequency of up to 64 MHz and maximum support for motor PWM frequency up to 128 kHz. (2) Utilizes high-power MOSFET transistors combined with a CNC metal heatsink to effectively dissipate heat under high current loads, ensuring stable and continuous operation.
(3) Supports multiple motion modes, such as unidirectional, bidirectional, and braking motors.
(4) Equipped with numerous protective features, including low voltage protection, thermal protection, rotor lock protection, and overcurrent protection.
(5) The ESC automatically detects the throttle signal upon power-up and supports all Dshot signals and signal protocols such as PWM, Oneshot, and Multishot.
(6) A visual parameter programming tool supports settings like motor timing, throttle calibration, current detection, motor rotation direction, telemetry signals, and more.
(7) Built-in RGB LED settings with customizable multi-color options.
(8) Widely used in plant protection machines, multirotors, model airplanes, RC boats, RC cars, and more.

Product Specifications

Overall Dimensions

Package Contents

• 12100 Set × 1
