BetaFPV Pavo20 Pro Frame with HD VTX Mount (Transparent Gray)

BetaFPV Pavo20 Pro Frame with HD VTX Mount (Transparent Gray)

The BetaFPV Pavo20 Pro Brushless Whoop Frame is built for pilots who want a tough, lightweight, and camera-ready platform for cinematic FPV flights. Designed for a 2.2-inch DJI O3 cinewhoop, it also offers full compatibility with Caddx Vista and RunCam Link, making it a versatile choice for HD FPV builds.

With a 93.7 mm wheelbase and durable PA12/PP construction, this frame is made to handle demanding flights and rougher landings. The reinforced whoop duct design improves protection while helping optimize airflow. Based on aerodynamic design principles, the Pavo20 Pro frame can increase thrust by 8–11%, delivering impressive performance when paired with a powerful 3S setup.

For creators focused on smooth HD footage, this frame features new fixed camera mounting holes optimized for wide-angle recording with the DJI O3. The classic Pavo Series rubber damping system helps reduce unwanted “jello” in footage, so you get cleaner, more stable video and a more refined freestyle flying experience.

Key Features

• Designed for 2.2-inch cinewhoop builds with excellent compatibility for HD FPV systems
• Supports DJI O3 Air Unit, Caddx Vista, and RunCam Link
• 93.7 mm wheelbase for a balanced mix of agility and stability
• Durable PA12/PP material with crash-resistant construction
• Reinforced whoop ducts for added protection and improved airflow efficiency
• 8–11% thrust improvement thanks to the aerodynamic frame design
• Fixed camera mounting holes for stable wide-angle DJI O3 footage
• Rubber damping design to reduce vibration and minimize jello in HD video
• Integrated HD VTX mounting solution for easier installation and a cleaner build
• Supports vertical ND filter installation for more flexible shooting setups

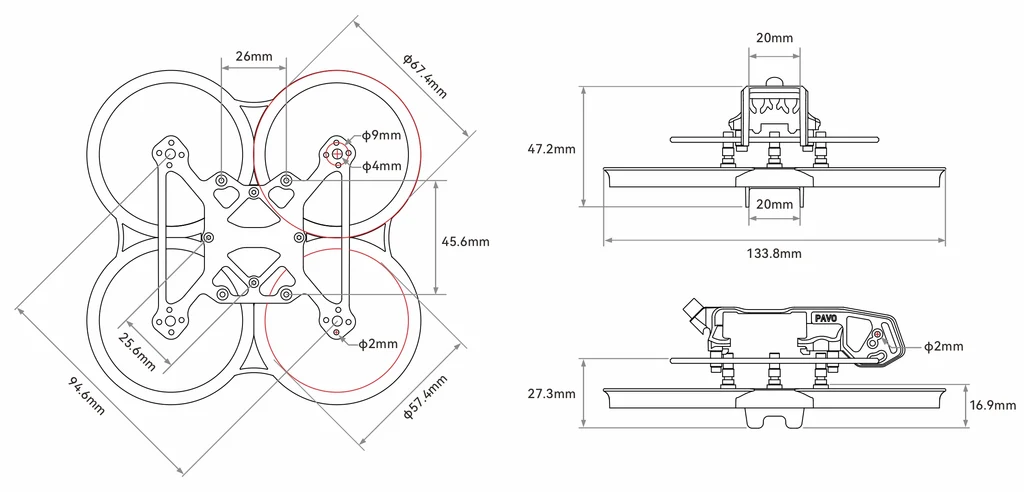

Specifications

• Product: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 93.7 mm
• Material: PA12 / PP
• Top plate thickness: 2 mm
• Weight: 33.3 g (with HD VTX mount), 17.8 g (whoop duct), 4.6 g (HD VTX mount only)
• Color: Black / Transparent Gray / Blue
• Camera size: 19 mm / 20 mm
• FC mounting: 26 × 26 mm, compatible with standard whoop FCs
• Motor mounting: 4 × M2 × φ9 mm
• Battery slot width: 20 mm
• Camera filter support: Yes

Compatible with Popular HD VTX Systems

Pavo20 Pro is made for today’s most popular HD VTX systems, giving FPV pilots the flexibility to build around their preferred video setup. It supports the DJI O3 Air Unit for sharp HD transmission, while Caddx Vista is a great option for low-latency FPV flying with excellent image quality. It is also compatible with RunCam Link, making this frame a smart choice for a wide range of digital FPV configurations.

The dedicated HD VTX mount uses a split design that simplifies installation, especially for DIY builders who want a cleaner and more user-friendly assembly process.

Purpose-Built for HD FPV Recording

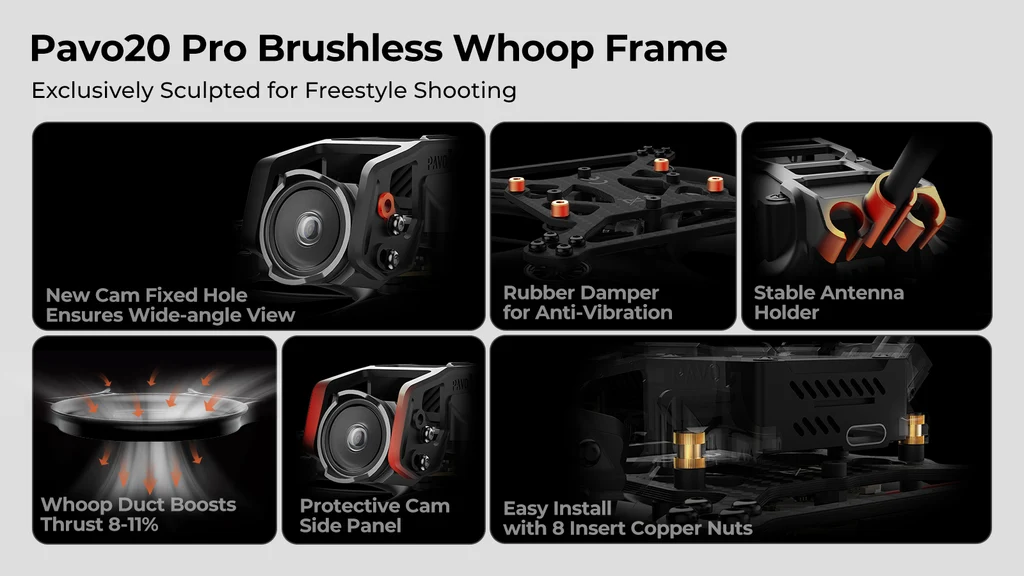

The Pavo20 Pro frame has been carefully shaped to support HD VTX systems and help you capture better footage. It features 6 fixed camera mounting holes, including 2 new positions for wide-angle recording, which help reduce side plate shadows in the camera view for a cleaner image.

The side camera panels not only help protect the lens during everyday use and harder impacts, but also support vertical ND filter installation. This gives pilots more freedom when shooting in changing light conditions. The frame design also helps prevent camera angle shifting after aggressive flights, keeping your footage more consistent and predictable.

A custom antenna mount provides secure antenna placement and follows the antenna profile for a neat fit. Combined with the signature Pavo Series rubber damping structure, the frame helps reduce vibration and improve HD footage smoothness. The anti-vibration components are also compatible with Pavo Pico, adding extra versatility for FPV enthusiasts.

The frame includes an integrated HD VTX mounting bracket with a copper nut design for fast and hassle-free assembly using just 8 screws. Thanks to the semi-threaded screws, there is no need for repeated tightening adjustments, which speeds up installation and improves vibration resistance. The result is a more secure setup, greater durability, and smoother HD footage during dynamic FPV flights.

What’s Included

• 1 × Pavo20 Pro top plate
• 1 × 20 × 20 mm VTX mounting plate
• 1 × Pavo20 whoop duct
• 1 × Pavo20 VTX mount
• 1 × 130 mm battery strap
• 2 × battery anti-slip pads
• 2 × 5.8G antenna mounts
• 8 × M2 nuts
• 10 × rubber dampers
• 6 × M2 × 10 screws
• 6 × M2 × 4 screws
• 4 × M2 × 14 screws
• 4 × M2 × 15 screws
