BetaFPV Pavo Femto Frame Channel for Drone (DJI O4) - Black

Frame Channel for BetaFPV Pavo Femto Drone (DJI O4) - Black

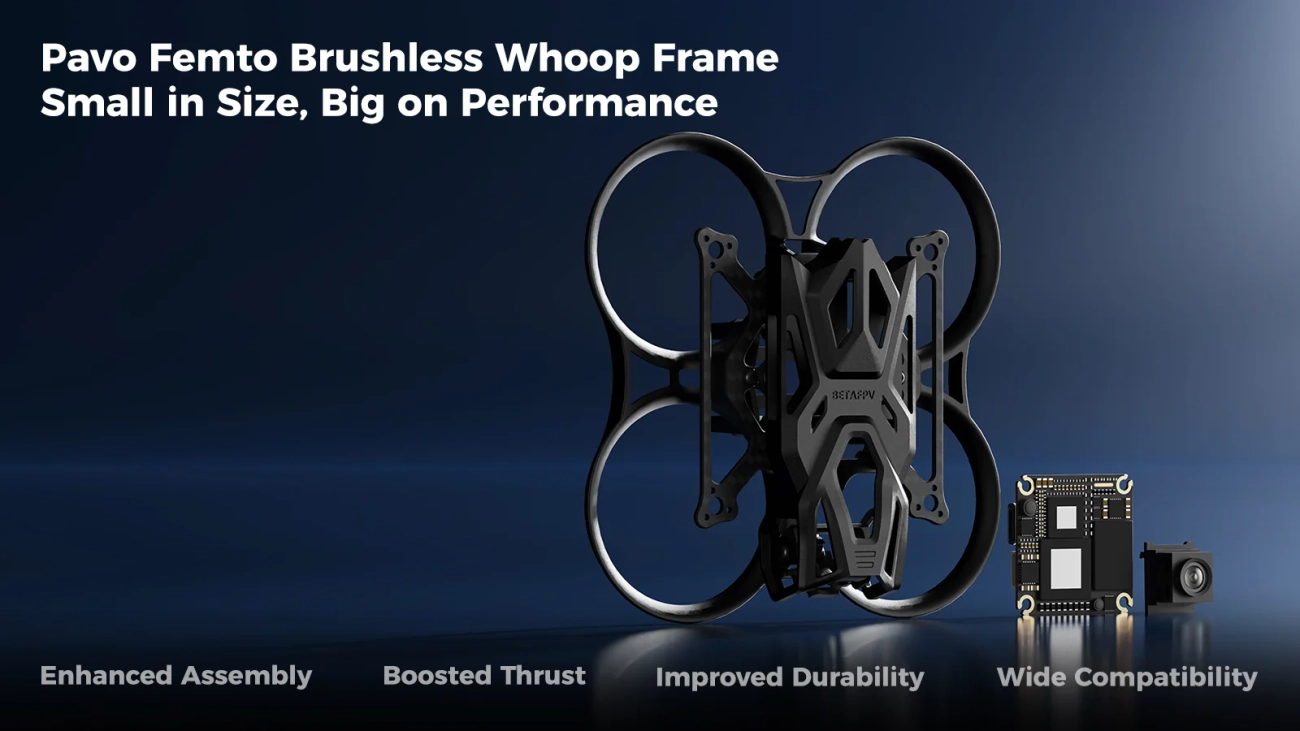

The Pavo Femto Brushless Whoop Frame is designed for performance and durability, offering a 4% thrust increase in a compact design. It features improved connections between the whoop channel and the carbon fiber plate with additional supports and constraints for secure mounting. Optimized for the DJI O4 Air Unit, it has a reinforced protective structure for the circuit board.

Key Features

• Enhanced Mounting: Improved connection between the whoop channel and the carbon fiber plate with additional supports for easy and secure installation.
• Increased Thrust: Smaller whoop channel increases thrust by approximately 4%.
• Enhanced Durability: Reinforced protection for the DJI O4 Air Unit circuit board.
• Wide Compatibility: O4 Air Unit mount fits Pavo Femto, Pavo Pico, and Pavo20 models.

Specifications

• Model: Pavo Femto Brushless Whoop Frame
• Wheelbase: 75mm
• Carbon Fiber Plate Thickness: 2mm
• Whoop Channel Material: PA12

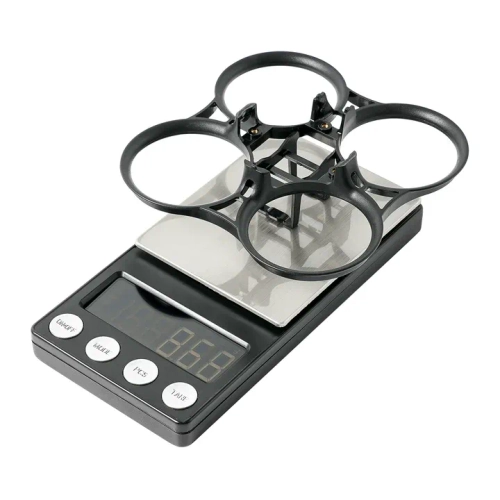

• Whoop Channel Weight: 8.64g
• Frame Weight: 22.16g
• Flight Controller Mounting Hole Distance: 25.5mm x 25.5mm
• Motor Mounting Hole Distance: 3*M1.4 EQS ø6.6
• O4 Air Unit Mount Material: PA
• O4 Air Unit Mount Weight: 6.05g
• Camera Mounting Distance: 20mm

Pavo Femto Brushless Whoop Frame Diagram:

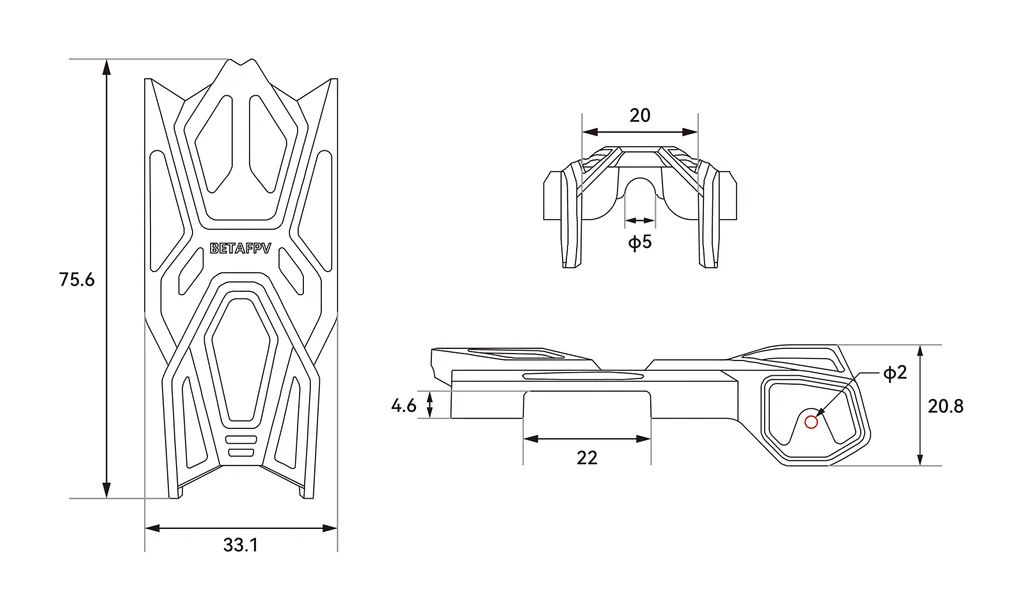

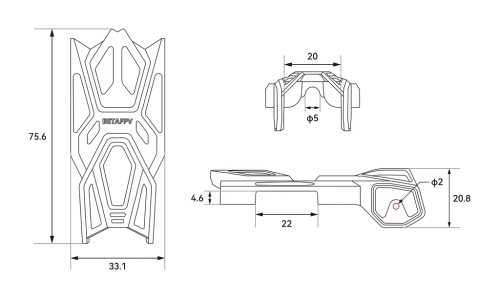

O4 Air Unit Mount Diagram:

4% Thrust Increase

Inspired by rocket engine nozzles, the Pavo Femto frame optimizes whoop channel aerodynamics with precise height and thickness adjustments. Despite its smaller size, it achieves around a 4% thrust increase, providing better power and stability.

Enhanced Mounting

Improved connection between the whoop channel and the carbon fiber plate ensures secure mounting and eliminates loose screws and complicated installations.

Greater Protection

The DJI O4 Air Unit mount features a reinforced protective structure, enhancing its durability and reliability.

Included in the Package:

• 1 * Whoop Frame Channel
