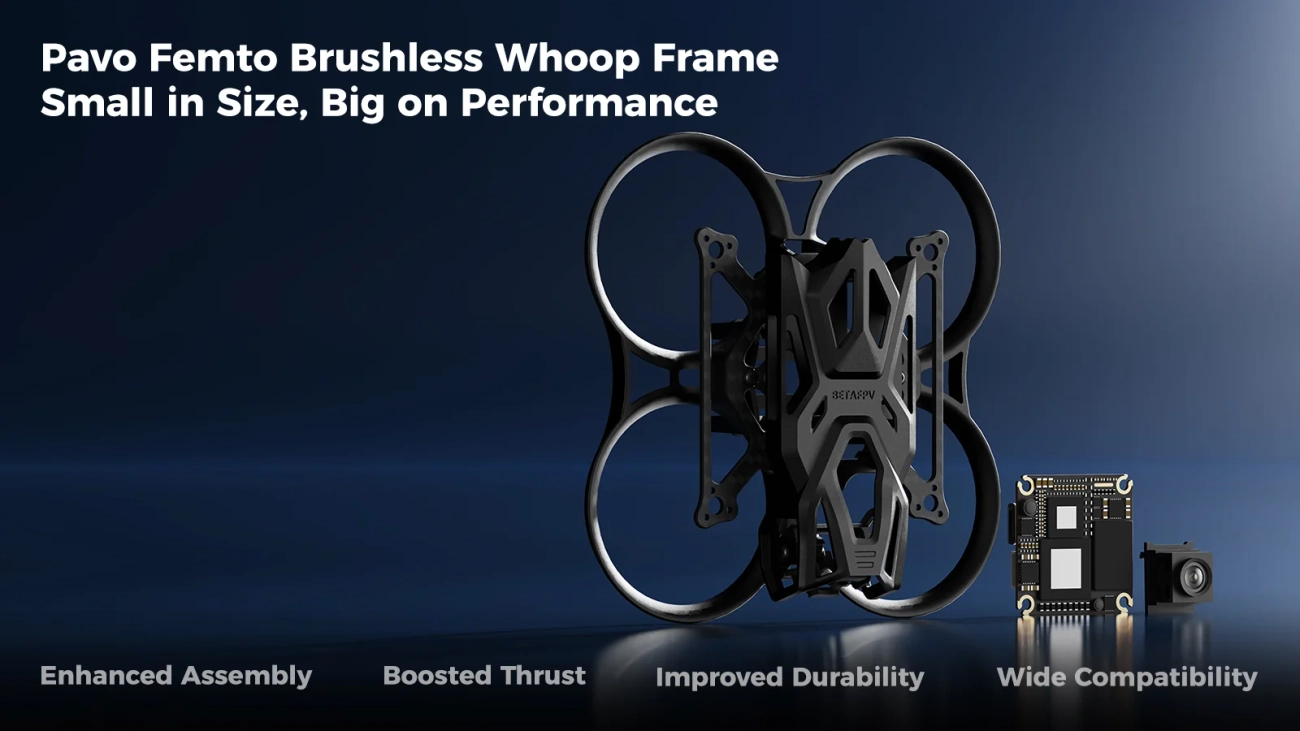

The Pavo Femto Brushless Whoop Frame is engineered for performance and durability, offering a 4% thrust increase in a compact design. It features enhanced connections between the whoop duct and the carbon fiber plate with additional supports and constraints for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board.

Key Features

• Improved Assembly: Enhanced connection between the whoop duct and carbon fiber plate with additional supports for easy and secure installation.
• Increased Thrust: Smaller whoop duct boosts thrust by approximately 4%.
• Enhanced Durability: Reinforced protection for the DJI O4 Air Unit circuit board.
• Wide Compatibility: O4 Air Unit mount fits Pavo Femto, Pavo Pico, and Pavo20 models.

Specifications

• Model: Pavo Femto Brushless Whoop Frame
• Wheelbase: 75mm
• Carbon Fiber Plate Thickness: 2mm
• Whoop Duct Material: PA12
• Whoop Duct Weight: 8.64g
• Frame Weight: 22.16g
• Flight Controller Mounting Hole Distance: 25.5mm x 25.5mm
• Motor Mounting Hole Distance: 3*M1.4 EQS ø6.6
• O4 Air Unit Mount Material: PA
• O4 Air Unit Mount Weight: 6.05g
• Camera Mounting Distance: 20mm

Pavo Femto Brushless Whoop Frame Diagram:

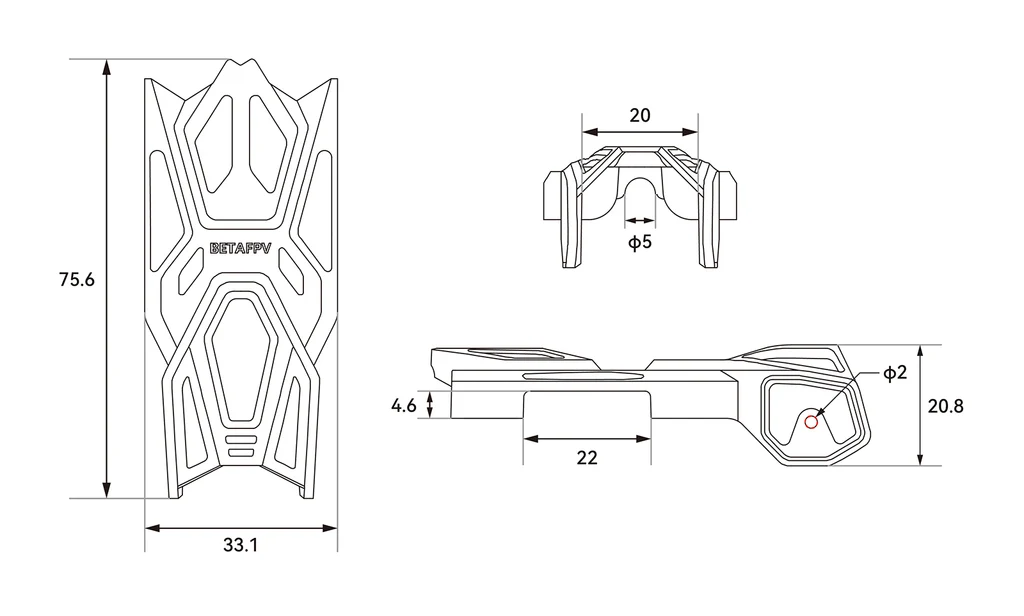

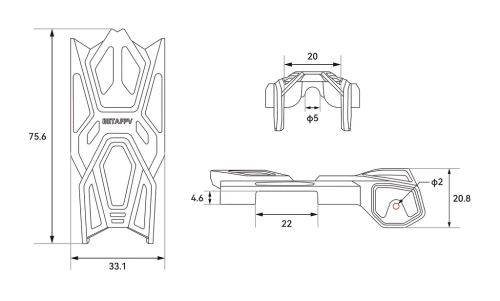

O4 Air Unit Mount Diagram:

4% Thrust Increase

Inspired by rocket engine nozzles, the Pavo Femto frame optimizes the aerodynamics of the whoop duct with precise height and thickness adjustments. Despite its smaller size, it achieves around a 4% thrust increase, delivering better power and stability.

Improved Assembly

The enhanced connection between the whoop duct and carbon fiber plate ensures secure assembly, eliminating loose screws and complicated installations.

Greater Protection

The DJI O4 Air Unit mount features a reinforced protective structure, enhancing its durability and reliability.

Included in the Package:

• 1 * Whoop Carbon Fiber Plate
• 1 * Whoop Cover
• 1 * O4 Air Unit Mount Cover
• 1 * O4 Air Unit Mount Bottom Plate
• 1 * DJI O4 Camera Mount
• 1 * DJI O4 Camera Shock Absorbing Mount
• 1 * 5.8G VTX Antenna
• 6 * Flight Controller Shock Absorbing Balls (8mm)
• 6 * O4 Air Unit Shock Absorbing Balls (6.6mm)
• 6 * O4 Air Unit Shock Absorbing Pads
• 6 * O4 Camera Shock Absorbing Balls
• 6 * M2*10 Socket Head Cap Screws
• 4 * M2*14 Countersunk Head Socket Screws
• 4 * M2*4 Countersunk Head Socket Screws
• 6 * M1.4*5 Self-tapping Screws with Washer Head
