BetaFPV Micro-Nano Adapter (Standard)

BetaFPV Micro-Nano Adapter (Standard)

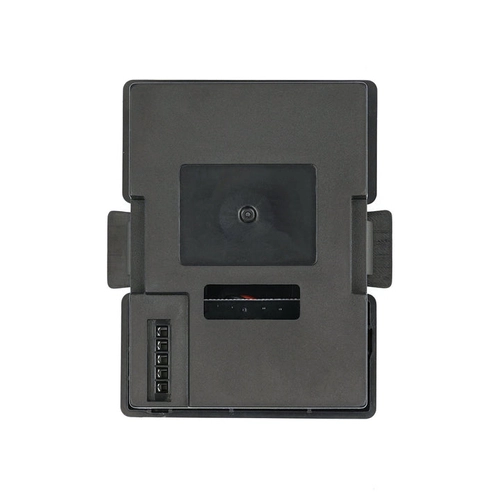

The BetaFPV Micro-Nano Adapter (Standard) is a practical upgrade for RC hobbyists who want to use a Nano TX module with transmitters equipped with a Micro or JR module bay. The updated version is designed for quick installation and greater compatibility, making it a convenient solution for expanding your radio setup without hassle.

This improved adapter features an added 3-pin GH1.25 socket on the bottom of the module adapter, allowing it to be used with Futaba transmitters and other radios that do not run OpenTX.

It is especially well suited for the BETAFPV ELRS Nano TX Module, but it also works with other popular Nano-format transmitter modules. If you want a simple way to bridge the gap between different module bay standards, this adapter gets the job done cleanly and reliably.

Key Features

• Lets Nano TX modules work with Micro or JR module bay transmitters
• Upgraded design for easier installation
• Built-in 3-pin GH1.25 socket for Futaba radios and other non-OpenTX transmitters
• Compatible with BETAFPV ELRS Nano TX Module and other popular Nano TX modules
• Compact and lightweight design in JR module size format
• Great choice for RC pilots looking for a flexible and easy module bay conversion solution

Specifications

• Item: Micro-Nano Module Adapter / Micro-Nano Module PCBA
• Dimensions: 65 x 48 x 28 mm (JR module size)
• Weight: 25 g
• Input: JR module bay / Micro module bay
• Output: Nano module bay / Lite module bay
• Supported transmitters: FrSky X9D / X9D Plus / X12S / X10 / X10S / X7 / X7S, Flysky TH9X, Turnigy 9XR / 9XR PRO, FUTABA 16IZ, Jumper T16 / T18 / T18 Pro, RadioMaster TX16S / TX18S, TBS Mambo
• Supported TX modules: BETAFPV Nano TX Module, TBS Crossfire Nano TX, FrSky XJT Lite / R9M Lite / R9M Lite Pro

Compatible Transmitters

This module adapter is designed for transmitters with a Micro or JR port, including popular models such as FrSky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, and Jumper T18. It is an excellent option for hobbyists who want to use modern Nano TX modules on a wider range of radios.

Adapter Diagram

Below is the standard wiring and layout diagram for the BetaFPV Micro-Nano Adapter, helpful for installation and setup.

Recommended Pairing

The ELRS Nano TX Module was the first BETAFPV module based on the ExpressLRS project. ExpressLRS is known for being one of the fastest RC links available while also delivering impressive long-range performance, making it a great match for this adapter.

Package Includes

• 1 x Micro-Nano Module Adapter
• 1 x Converter Cable
• 1 x Double-Sided Tape
