BetaFPV BT3.0 Pigtail 2S Cable Connector - 1pc

BetaFPV BT3.0 Pigtail Cable Connector 2S – 1 pc

The BetaFPV BT3.0 Pigtail Cable Connector is a smart upgrade for 2S whoop drones, designed for pilots who want a cleaner setup, easier battery handling, and reliable power delivery. Built specifically for the BT3.0 ecosystem, this compact pigtail combines low weight, solid current performance, and convenient day-to-day use for FPV hobby builds.

Key Features

• Designed specifically for 2S whoop drones and compatible 2S flight controllers.
• BT3.0 connector combines balance charging and power lead functionality into one compact solution.
• No need for a separate balance connector, helping simplify your wiring and battery setup.
• Compact and lightweight design helps keep overall drone weight down.
• Rated for 12A continuous current and up to 20A burst current, ideal for 2S applications.
• 90-degree male connector and cable layout make plugging in and unplugging easier in tight builds.
• Gold-plated copper contacts improve conductivity and durability.
• Built for hobby use with up to 1000 insertion cycles.

Specifications

• Product type: BT3.0 2S Whoop Cable Pigtail
• Quantity: 1 piece
• Weight: 1.39 g per piece
• Cable length: 30 mm
• Insertion force: 3–22 N
• Color: White / Black
• Metal material: Gold-plated copper
• Plastic material: PA9T
• Connector lifespan: Up to 1000 cycles
• Rated current: 12A
• Burst current: 20A

Made for 2S Whoop Builds

This BT3.0 power cable with connector was developed especially for 2S whoop drones. The 90-degree connector design makes installation more practical and improves accessibility when connecting or disconnecting the battery. With an insertion force of 3–22 N, it offers a secure fit without making regular use annoying. It is a great match for 2S FC boards and compact 2S drone frames.

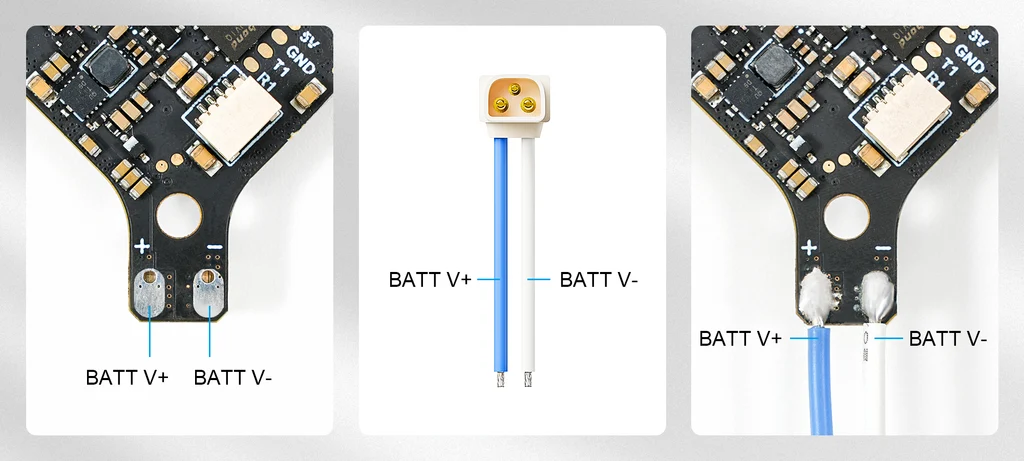

When soldering the pigtail to your board, make sure to observe the correct polarity. The BT3.0 pigtail uses two wires: blue for positive (+) and white for negative (-).

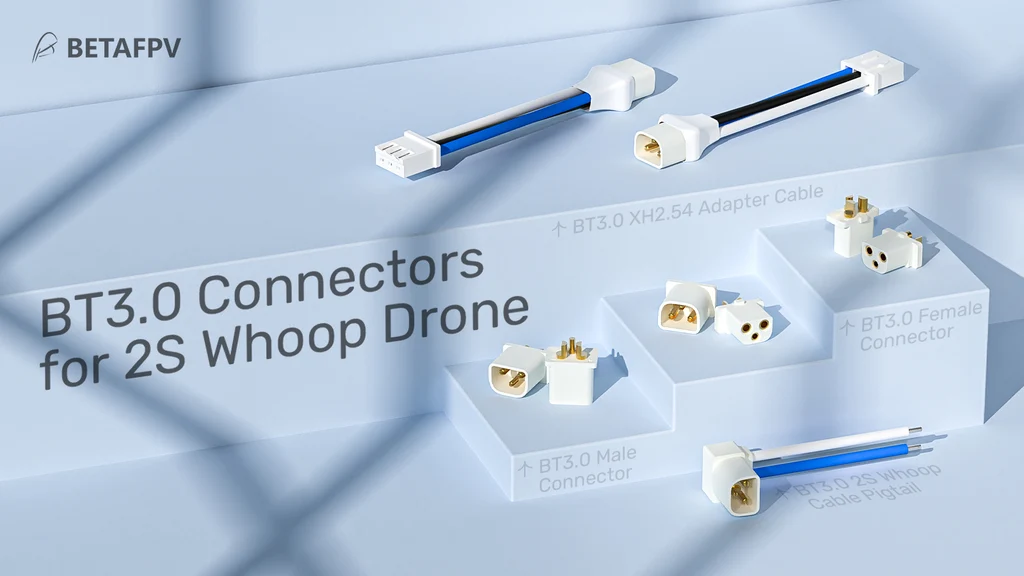

Part of the BetaFPV BT3.0 Ecosystem

The BETAFPV BT3.0 accessory series was created as a complete solution for 2S whoop drones. It includes connectors, batteries, and chargers designed to work together for a more convenient and efficient flying experience. By removing the need for a separate balance lead, BT3.0 connectors help streamline battery management, improve usability, and support stable charging when paired with compatible 2S chargers.

In the Box

• 1 x BetaFPV BT3.0 2S Whoop Cable Pigtail
