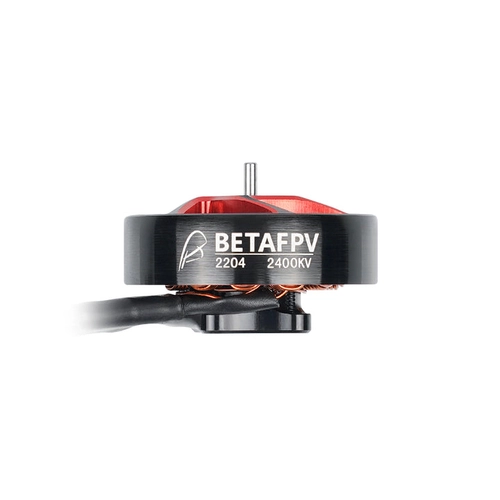

BetaFPV 2204 2400KV Motors - Set of 4

BetaFPV 2204 2400KV Motors - 4 pcs

The BETAFPV 2204 2400KV brushless motor is an upgraded version of the popular 2004 motor, built for pilots who want smooth power delivery, strong punch, and better control in the air. It is a great match for 3" cinewhoops with prop guards, 4" builds, and lightweight 5" FPV drones, making it a versatile choice for hobby pilots looking to improve both flight feel and video quality.

Designed to deliver higher torque with smoother throttle response, this motor helps your drone feel more locked-in and responsive while keeping flights efficient and enjoyable. For best results, we especially recommend pairing it with the 35A AIO Brushless FC for a durable and flexible setup with plenty of usable power.

Key Features

• Upgraded 2204 brushless motor design with improved performance over the popular 2004 platform.
• Smooth and powerful operation for better control, cleaner handling, and a more confident flight experience.
• 2400KV setup optimized for 4S builds, ideal for 3" ducted drones, 4" quads, and lightweight 5" FPV setups.
• Higher torque and refined throttle feel for more stable flying and better overall responsiveness.
• Great choice for cinematic and freestyle hobby builds where smooth footage and reliable power matter.

Specifications

• Product: 2204 Brushless Motor
• KV Rating: 2400KV
• Weight: 21g
• Color: Black / Red
• Shaft Diameter: 1.5mm
• Shaft Length: 3.8mm
• Hole Spacing: 12mm
• Motor Mounting Holes: M2
• Input Voltage: 4-6S
• Wires: 105mm length, 22AWG
• Dimensions: 24.6 x 24.6 x 17.2mm

Recommended Parts

Especially recommended for the X-Knight 4" FPV and TWIG Mutant 4".

• Flight Controller: 35A AIO Brushless FC
• Compatible Propellers: HQ 5025 3-Blade Props / Gemfan 5125 3-Blade Props / Gemfan 5020 Props
• Battery: 450mAh 4S and 850mAh 4S
• Frame: 4-5 inch frames, especially the TWIG ET5 5" Toothpick Frame

Package Includes

• 4 x 2204 2400KV Brushless Motor
• 1 x M2 Screw Set
