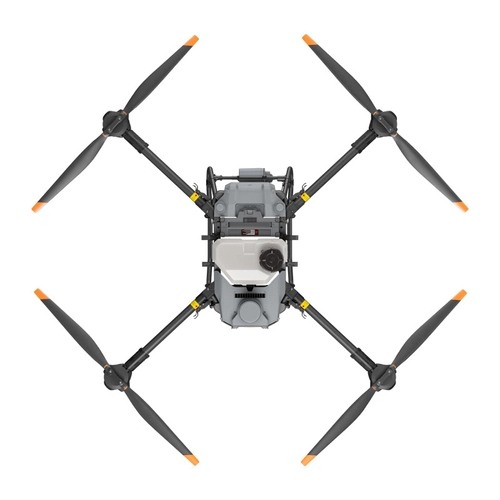

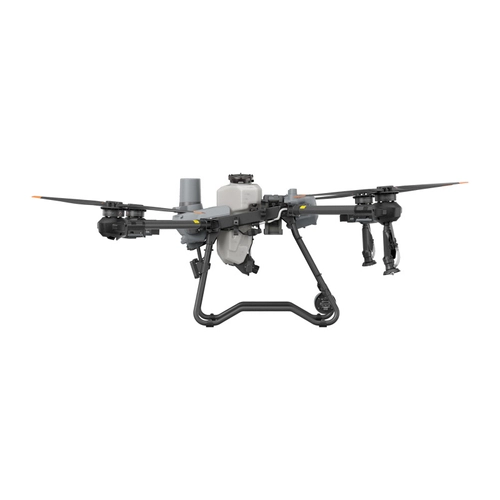

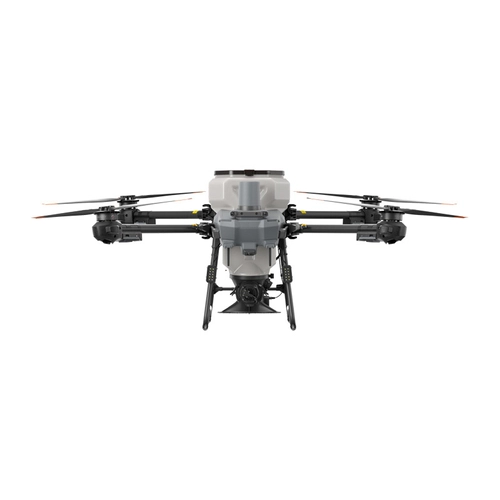

Agricultural drone DJI Agras T25P

DJI Agras T25P Agricultural Drone

The DJI Agras T25P is a compact yet highly capable agricultural drone designed for demanding everyday fieldwork. With its lightweight build, foldable arms, and intuitive controls, it’s a great fit for single-operator use. Built to handle a wide range of jobs, it can carry up to 20 kg of spray liquid or up to 25 kg of dry spreading material, making it a versatile choice for crop protection, fertilization, and more.

• Up to 20 kg liquid payload for spraying
• Up to 25 kg dry payload for spreading
• Foldable, compact design for easier transport and storage
• User-friendly operation ideal for efficient solo work

Precision Spraying with High Efficiency

The optimized spraying system in the T25P delivers a flow rate of up to 16 l/min with two sprinklers, and up to 24 l/min when equipped with four optional centrifugal atomizing nozzles. Dual atomization technology helps produce even, precise droplets for more effective crop protection coverage. The specially designed spray disc offers up to 66% greater durability, while the magnetically driven impeller pump keeps liquid separated from the motor to reduce wear and improve corrosion resistance. Electromagnetic valves precisely control spray start and stop, helping prevent leaks and waste.

• Up to 16 l/min with two sprinklers
• Up to 24 l/min with four optional atomizing nozzles
• Dual atomization for consistent droplet size
• Improved durability and reduced risk of corrosion
• Leak-reducing electromagnetic valve control

Spreading System 4.0 for Better Productivity

The upgraded spreading system features a 30 L tank and supports payloads of up to 25 kg. It can distribute materials at a rate of up to 190 kg/min, at speeds of up to 10 m/s, with a working width of up to 8 m. Three interchangeable auger feeders—small, medium, and large—make it easier to match the drone to different granular materials such as fertilizer, feed, seeds, or crop protection agents. Automatic calibration, a built-in weighing sensor, and cloud-based template storage help improve planning accuracy and repeatability. The spreading module can also be quickly removed and cleaned for easier maintenance.

• 30 L spreading tank
• Up to 25 kg spreading payload
• Flow rate up to 190 kg/min
• Working width up to 8 m
• Interchangeable augers for different material types
• Fast disassembly for simple cleaning and upkeep

Advanced Sensors and Safety System 3.0

The DJI Agras T25P is equipped with an advanced sensing suite that combines millimeter-wave radar with a tri-vision system. With up to 10 times more computing power and a detection range of up to 60 m, the drone can effectively identify obstacles such as poles and trees, helping it navigate safely in more challenging environments. Terrain Following technology automatically adjusts flight height to match ground contours. An FPV camera with Night Mode and a powerful navigation light provide strong visibility after dark, with detection up to 25 m. A virtual gimbal with a fisheye lens and electronic image stabilization algorithms helps maintain smooth viewing even in heavy vibration.

• Millimeter-wave radar plus tri-vision sensing
• Obstacle detection range up to 60 m
• Automatic Terrain Following
• FPV camera with Night Mode
• Navigation light with up to 25 m detection capability
• Stabilized image feed for better situational awareness

Intuitive Control and Smart Automation

The drone is operated with the DJI RC Plus controller, featuring a 7-inch high-brightness touchscreen and backlit programmable buttons. This makes daily operation comfortable in a wide range of conditions. The controller also supports useful features such as one-tap field boundary recording, resume from breakpoint, manual route flexibility, and multi-field management. As a result, the Agras T25P performs especially well in smaller or irregularly shaped areas where speed and precision matter most.

• DJI RC Plus controller with 7-inch touchscreen
• High-brightness display for outdoor use
• Backlit programmable buttons
• One-tap boundary recording
• Breakpoint resume and multi-field support

Efficient Automatic Mapping System

The DJI Agras T25P can map up to 13.3 hectares of farmland or 5.33 hectares of orchards in a single flight. Automatic field boundary recognition and obstacle detection allow the drone to quickly generate ready-to-use HD maps for further planning. Orchard Mode 4.0 further improves efficiency and precision in orchard operations.

• Maps up to 13.3 hectares of fields in one flight
• Maps up to 5.33 hectares of orchards in one flight
• Automatic boundary recognition
• Fast HD map generation
• Orchard Mode 4.0 for orchard-specific workflows

Stable Transmission and Accurate Positioning

Thanks to O4 transmission technology, the drone provides a reliable connection and smooth real-time image transmission even in demanding terrain. The built-in RTK module works with the controller and smartphone to help determine the drone’s position accurately, while the optional D-RTK 3 AG base station enables centimeter-level positioning without the need for manual coordinate entry. In areas with weak signal coverage, the optional O4 Relay can help maintain stable transmission even in the presence of interference.

• O4 transmission for dependable real-time connectivity
• Built-in RTK module for improved positioning accuracy
• Optional D-RTK 3 AG for centimeter-level positioning
• Optional O4 Relay for challenging signal environments

High-Performance Battery and Fast Charging

The Agras T25P is powered by a DB800 battery with a 15.5 Ah capacity, supporting fast charging and offering a lifespan of up to 1,500 cycles. Compatibility with the C8000 charger and the D6000i multifunctional inverter station allows power delivery from both the grid and fuel generators, helping reduce turnaround time between missions and minimize downtime in the field.

• DB800 battery with 15.5 Ah capacity
• Fast charging support
• Battery lifespan of up to 1,500 cycles
• Compatible with C8000 charger and D6000i inverter station
• Designed to keep field operations moving

A Complete Precision Farming Solution

When paired with DJI SmartFarm Web and the DJI Mavic 3M surveying drone, the Agras T25P becomes part of a complete ecosystem for modern precision agriculture. This setup supports automated field patrols, crop growth monitoring, terrain analysis, seedling growth detection, and variable-rate application map generation. In practice, that means more precise field operations, including differentiated spraying, variable fertilization, and better-targeted nutrient application for crops such as soybeans, corn, rice, and cotton—all aimed at improving yields and supporting more sustainable farm management.

• Works with DJI SmartFarm Web
• Can be integrated with DJI Mavic 3M
• Supports crop monitoring and terrain analysis
• Enables variable-rate application planning
• Helps optimize yield-focused farm operations
